300nits SPI Circular Tft Lcd Display 40P Open Frame Lcd Module
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 200Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | 3.5" |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | CH350HV37A-CT |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| MODEL NO: | MODEL NO | Module Type: | 3.5"TFT + CTP |
|---|---|---|---|
| Display Mode: | TN/Transmissive/Normally White | CTP Type: | P + G |
| Number Of Dots: | 320*3(RGB)*480 | Viewing Direction: | 6 O'clock |
| Module Size: | 56.54(W)*84.96(H)*3.97(T)mm | TFT Active Area: | 48.96(W)*73.44(H)mm |
| Interface: | TFT: SPI MCU SPI+RGB / CTP ： I2C | Luminace: | 300cd/m2 |
| Highlight: | 320x480 Lcd Touch Display Module,300cd/m2 Lcd Touch Display Module,MCU SPI RGB LCD Panel |
||
Product Description
3.5'' ROHS Certified Small LCD Touch Screen 320*3(RGB)*480 SPI MCU SPI + RGB Interface LCD Display Panel
| MODEL NO. | CH350HV37A-CT |
| Module type | 3.5"TFT + CTP |
| Display Mode | TN/Transmissive/Normally white |
| CTP type | P+G |
| Number of Dots | 320*3(RGB)*480 |
| Viewing Direction | 6 o'clock |
| Module size | 56.54(W)*84.96(H)*3.97(T)mm |
| TFT Active area | 48.96(W)*73.44(H)mm |
| Interface | TFT: SPI,MCU,SPI+RGB CTP:I2C |
| Luminace | 300cd/m2 |

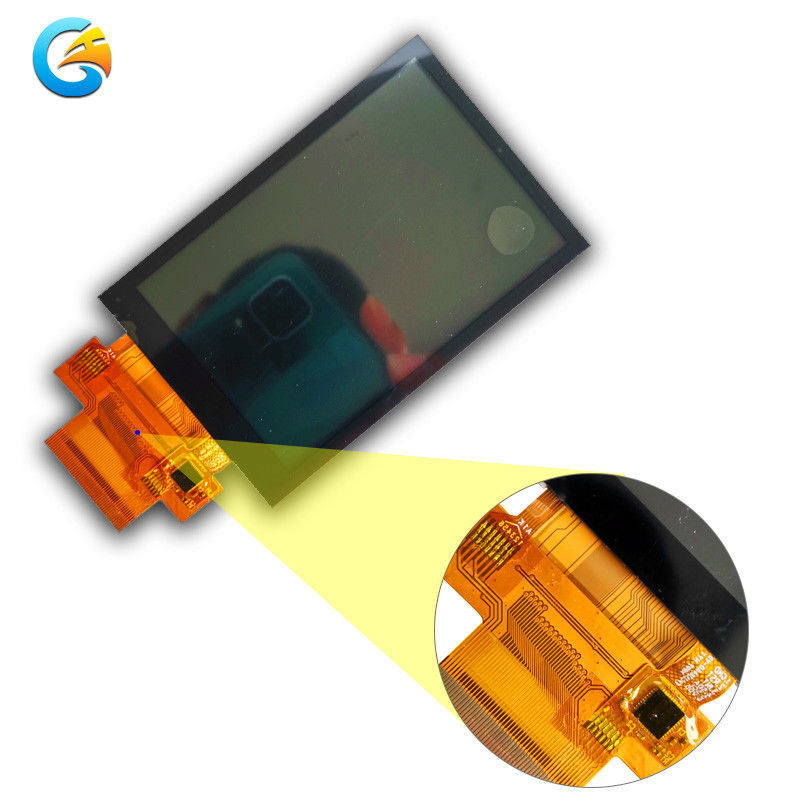

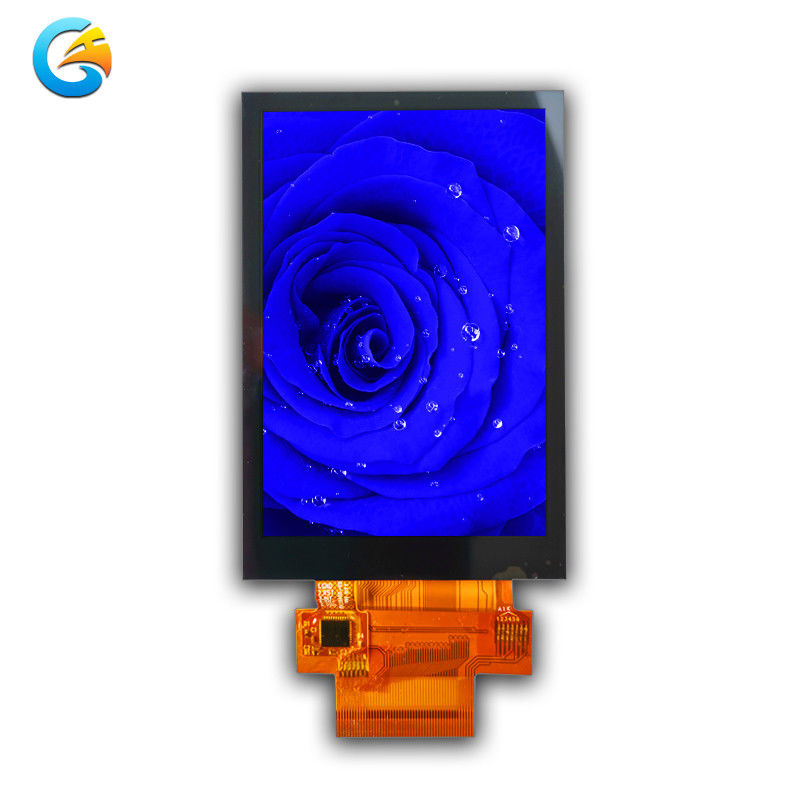

CH350HV37A-CT LCD Display Module is a color active matrix thin film transistor
(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT LCD panel, a driving circuit, a high brightness back-light,
a capacitive touch screen and FPC.
The TFT display is a color active matrix thin film transistor (TFT) liquid crystal display (LCD)
that uses amorphous silicon TFT as a switching device. This TFT LCD has a 3.5 (3:2) inch
diagonally measured active display area with HVGA (320 horizontal by 480 vertical pixel)
resolution.

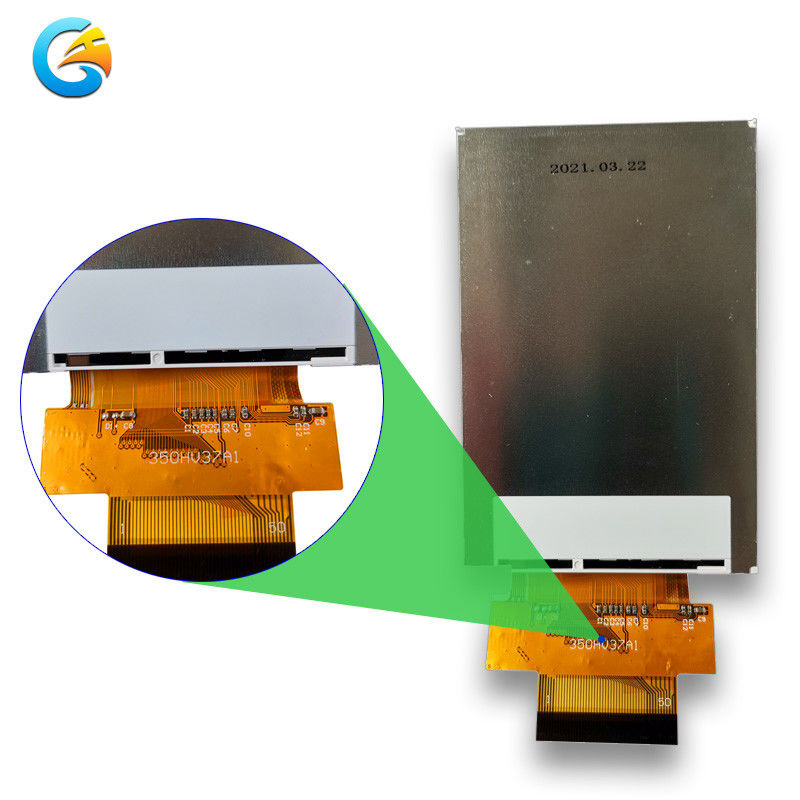

The driver used for this project is the ILITEK ILI9488 or compatible and can display 262K
colors by 18 bit R.G.B. signal input. The driver is mounted on the glass and the interconnection
via FPC including components to drive the display module. Support SPI, MCU, SPI + RGB
interface.
In addition, FPC can also be customized according to customer requirements, such as
modifying FPC and LENS structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch TFT LCD Display | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch TFT LCD Display | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch TFT LCD Display | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch TFT LCD Display | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch TFT LCD Display | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch TFT LCD Display | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch TFT LCD Display | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch TFT LCD Display | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch TFT LCD Display | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch TFT LCD Display | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch TFT LCD Display | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch TFT LCD Display | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch TFT LCD Display | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch TFT LCD Display | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch TFT LCD Display | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch TFT LCD Display | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch TFT LCD Display | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch TFT LCD Display | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch TFT LCD Display | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch TFT LCD Display | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch TFT LCD Display | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch TFT LCD Display | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch TFT LCD Display | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch TFT LCD Display | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch TFT LCD Display | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch TFT LCD Display | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch TFT LCD Display | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch TFT LCD Display | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch TFT LCD Display | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch TFT LCD Display | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch TFT LCD Display | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.10 inch TFT LCD Display | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
