300nits SPI Circular Tft Lcd Display 40P Open Frame Lcd Module
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7 - 15 working days |
| Payment Terms : | T/T | Supply Ability : | 200K PCS / Month |
| Place of Origin: | ShenZhen , China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | ROHS 、ISO9001 、CE | Model Number: | 700WV02A |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Module Type: | 7 Inchs | Display Mode: | TN Transmissive Normally White |
|---|---|---|---|
| Number Of Dots: | 800*3*480-RGB | Viewing Direction: | 12o'clock |
| Module Size: | 164.9 (W) * 100 (H)*5.7(T)mm | TFT Active Area: | 154.08 (W)*85.92(H) Mm |
| Interface: | 24bit RGB | Luminace: | 250 Cd/m2 |
| Highlight: | 7 Zoll Digital LCD Display Module,250nits Digital LCD Display Module,TN Transmissive Lcd Touch Module |
||
Product Description
Custom Industrial 250 Nits Small Lcd Touch Screen 7 Zoll Size Digital
Tn Display Module
| MODEL NO. | 700WV02A |
| Module type | 7"TFT |
| Display Mode | TN Transmissive Normally white |
| Number of Dots | 800*3*480 |
| Viewing Direction | 12o'clock |
| Gray Scale Inversion Direction | 6o'clock |
| Module size | 164.9(W)* 100.0(H)* 5.7(T) mm |
| TFT Active area | 154.08 (W) * 85.92(H)mm |
| TFT Dot pitch | 0.1926 (W) * 0.1790 (H)mm |
| Interface | 24bit RGB |
| Backlight Type | White LED |
| Luminace | 250 cd/m2 |

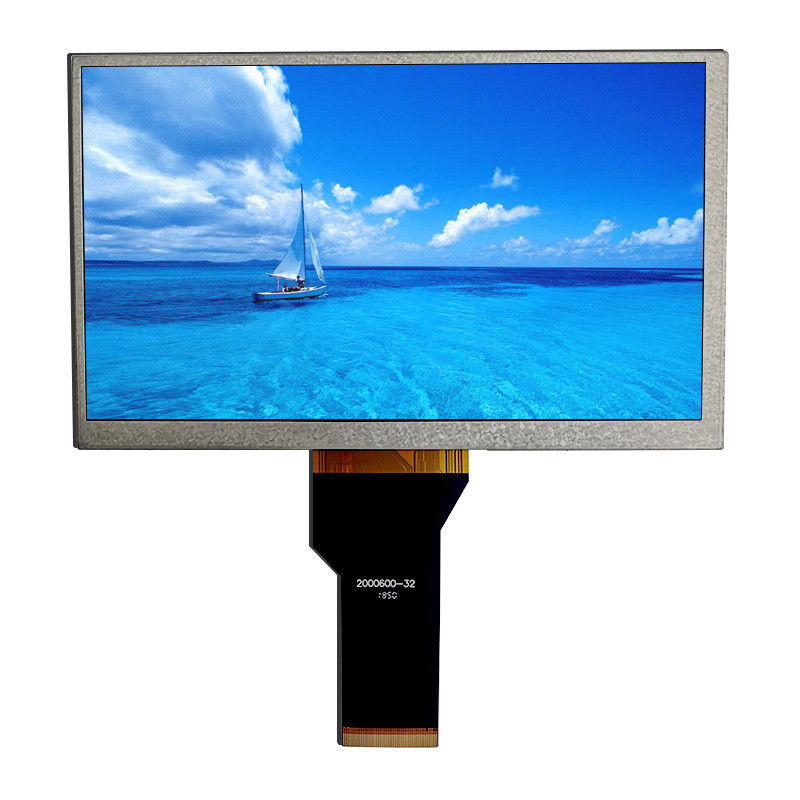

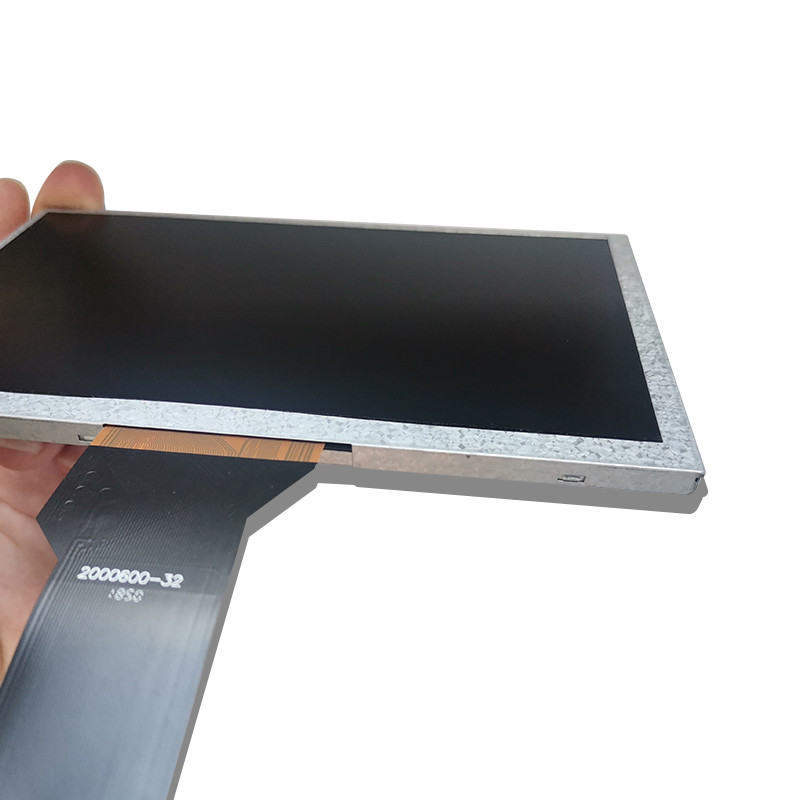

ChengHao Display model CH700WV02A is a color active matrix thin film transistor (TFT)
liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This
model is composed of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.
This TFT LCD has a 7.0 (16:9) inch diagonally measured active display area with WVGA
(800 horizontal by 480 vertical pixel) resolution.
The driver used for this project is the Himax and can display 16M colors by 24 bit R.G.B.

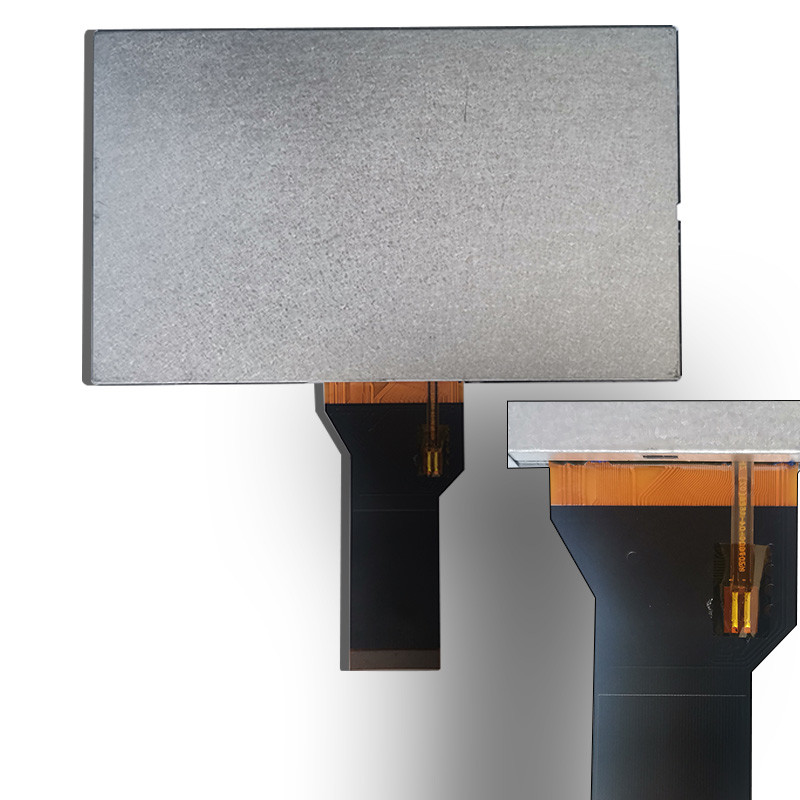

signal input. The driver is mounted on the glass and the interconnection via FPC including
components to drive the display module. Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modi
-fying back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.1 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
