Mcu Spi 3.5in Tft Lcd Display Module 280cd/m2 Dot Matrix Tft Screen
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | Chenghao/Oem |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | CH700WV01 |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| MODEL NO.: | CH700WV01B | Module Type: | 7"TFT |
|---|---|---|---|
| Display Mode: | TN/Transmissive/Normally White | Number Of Dots: | 800*3(RGB)*480 |
| Viewing Direction: | 12 O'clock | Gray Scale Inversion Direction: | 6 O'clock |
| Module Size: | 164.9(W)*100.0(H)*5.7(T)mm | TFT Active Area: | 154.08(W)*85.92(H)mm |
| TFT Dot Pitch: | 0.1926(W)*0.1790(H)mm | Interface: | 24-bit RGB |
| Backlight Type: | White LED | Luminace: | 250cd/m2 |
| Highlight: | Spi Transmissive Lcd Display Module,7" 250cd/M2 Lcd Display Module,CH700WV01 Spi Mini Lcd Display |
||
Product Description
7inch Colour Lcd Display Module 800*480 Resolution Spi Mini Lcd Display Modul
| MODEL NO. | CH700WV01B |
| Module type | 7"TFT |
| Display Mode | TN/Transmissive/Normally white |
| Number of Dots | 800*3(RGB)*480 |
| Viewing Direction | 12 o'clock |
| Gray Scale Inversion Direction | 6 o'clock |
| Module size | 164.9(W)*100.0(H)*5.7(T)mm |
| TFT Active area | 154.08(W)*85.92(H)mm |
| TFT Dot pitch | 0.1926(W)*0.1790(H)mm |
| Interface | 24-bit RGB |
| Backlight Type | White LED |
| Luminace | 250cd/m2 |
Company Strenghth:
1> ISO9001 certificated, Factory Direct Supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive Price and Short Lead-time
4> Professional Team with Rich Experiences in Design/Mfg/Quality Control
5> Small MOQ Support & Fast Response to Customers
6> Long Product Life Time

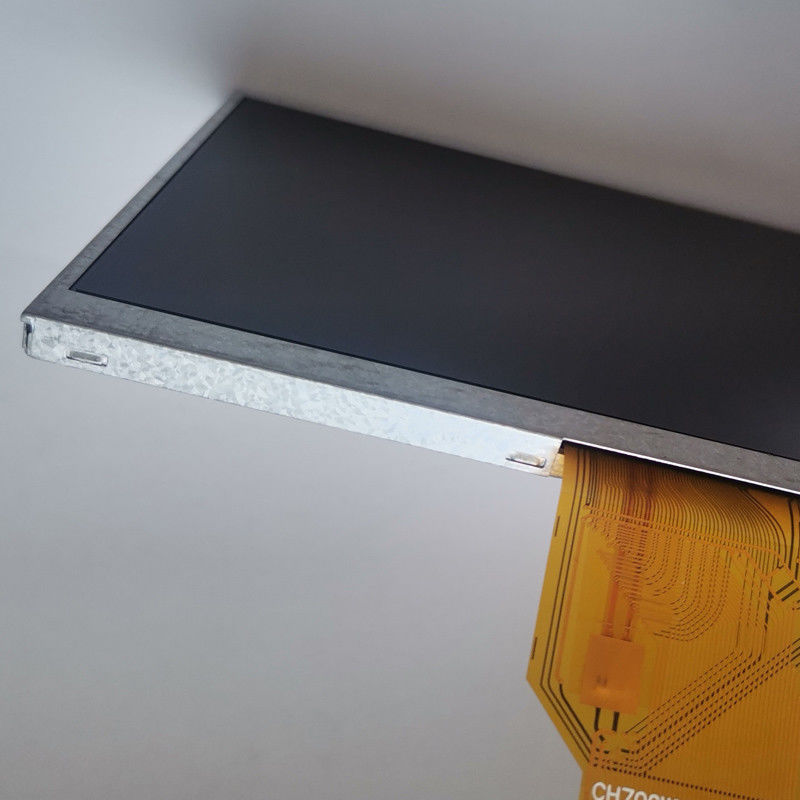

ChengHao Display model CH700WV01B is a color active matrix thin film transistor (TFT) liquid
crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is com
-posed of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.
This TFT LCD has a 7.0 (16:9) inch diagonally measured active display area with WVGA (800
horizontal by 480 vertical pixel) resolution.
The driver used for this project is the Himax and can display 16M colors by 24 bit R.G.B. signal
input. The driver is mounted on the glass and the interconnection via FPC including components
to drive the display module. Support RGB interface.
In addition, FPC can also be customized according to customer requirements, such as modifying
back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.
Tip: all of our products can be with or without touch, whatever you choose. Backlight brightness and FPC
interface can be customized according to your requirements.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.10 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
