Mcu Spi 3.5in Tft Lcd Display Module 280cd/m2 Dot Matrix Tft Screen
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | Chenghao/Oem |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | CH350QV11A |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| LCD Type: | 3.5 Inch | Dot Arrangement: | 320*240 |
|---|---|---|---|
| Color Filter Array: | RGB Vertical Stripe | Display Mode: | IPS/ Transmission/ NormallyBlack |
| Viewing Direction: | All Viewing Angle | Driver IC: | ST7272 |
| Color: | 16.7M | ||
| Highlight: | 320x240 Dot Lcd Display Module,ST7272 Lcd Display Module,3.5in Matrix Tft Lcd Monitor |
||
Product Description

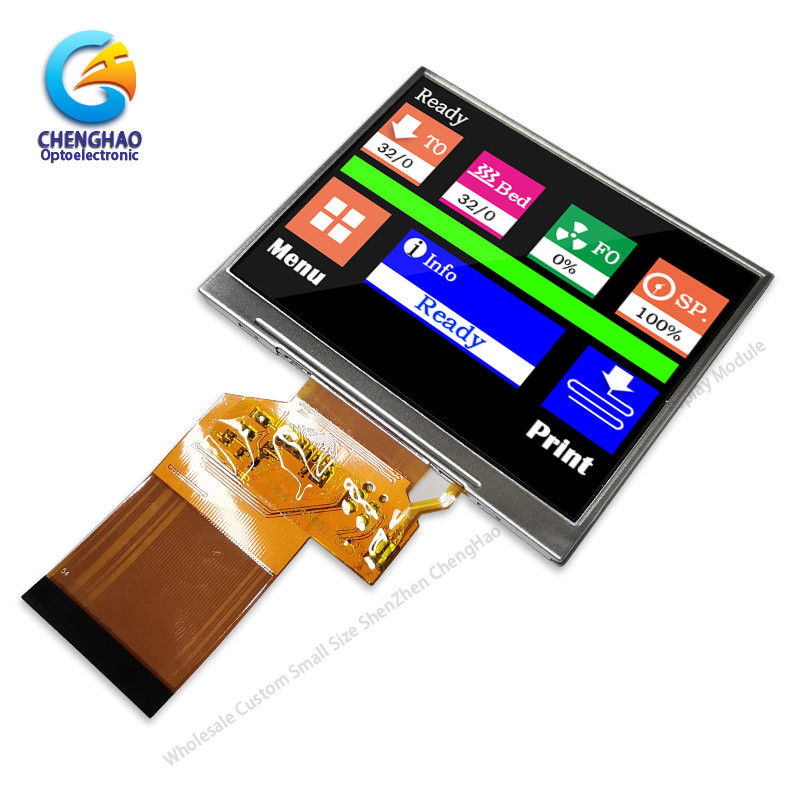

3.5 Inch Small Lcd Display Module 320*240 Dot Matrix Color Tft Lcd Monitor Screen
| LCD type | 3.5’ inch |
| Dot arrangement | 320(RGB)×240 dots |
| Color filter array | RGB vertical stripe |
| Display mode | IPS/ Transmission/ NormallyBlack |
| Viewing Direction | All Viewing angle |
| Driver IC | ST7272 |
| Color | 16.7 M |
| Resolution | 320*(RGB)*240 |
| Connection | Connector |
Company Strenghth:
1> ISO9001 certificated, Factory Direct Supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive Price and Short Lead-time
4> Professional Team with Rich Experiences in Design/Mfg/Quality Control
5> Small MOQ Support & Fast Response to Customers
6> Long Product Life Time
##ChengHao Display model CH350QV11A is a color active matrix thin film transistor (TFT) liquid crystal display
(LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a
driving IC, a high brightness back-light and FPC.
##This TFT LCD has a 3.5 (Horizontal screen) inch diagonally measured active display area with 320*3(RGB)*240
resolution.
##The driver used for this project is the ST7272 or compatible and can display 16M colors by R.G.B. signal input.
The driver is mounted on the glass and the interconnection via FPC including components to drive the display
module.
##In addition, FPC can also be customized according to customer requirements, such as modifying back-light and
FPC structure, interface definition, etc.
##RoHS Compliance & Halogen Free.
Tip: all of our products can be with or without touch, whatever you choose. Backlight
brightness and FPC interface can be customized according to your requirements.
| Module Type | Display Area | Display Mode |
| 1.44 inch | 25.50 * 26.50 mm | Normally White IPS, Transmissive |
| 1.44 inch | 25.50 * 26.50 mm | Normally White TN, Transmissive |
| 1.50 inch | 29.76 * 22.32 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.72 * 27.72 mm | Normally Black IPS, Transmissive |
| 1.54 inch | 27.74 * 27.74 mm | Normally Black IPS, Transmissive |
| 1.77 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 1.80 inch | 28.03 * 35.04 mm | Normally White TN, Transmissive |
| 2.00 inch | 30.60 * 40.80 mm | Normally White TN, Transmissive |
| 2.10 inch | Circular display area | Normally White IPS, Transmissive |
| 2.31 inch | 46.75 * 35.06 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White TN, Transmissive |
| 2.40 inch | 36.72 * 48.96 mm | Normally White IPS, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White TN, Transmissive |
| 2.80 inch | 43.20 * 57.60 mm | Normally White IPS, Transmissive |
| 3.00 inch | 36.72 * 65.28 mm | Normally Black IPS, Transmissive |
| 3.20 inch | 48.60 * 64.80 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally White TN, Transmissive |
| 3.50 inch | 70.08 * 52.56 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 51.84 * 86.4 mm | Normally Black IPS, Transmissive |
| 4.00 inch | 71.86 * 70.18 mm | Normally Black IPS, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally White TN, Transmissive |
| 4.30 inch | 95.04 * 53.86 mm | Normally Black IPS, Transmissive |
| 5.00 inch | 110.88 * 62.83 mm | Normally White TN, Transmissive |
| 5.00 inch | 108.00 * 64.8 0mm | Normally Black IPS, Transmissive |
| 5.50 inch | 68.04 * 120.96 mm | Normally Black IPS, Transmissive |
| 6.00 inch | 74.52 * 132.48 mm | Normally Black IPS, Transmissive |
| 7.00 inch | 154.08 * 85.92 mm | Normally White TN, Transmissive |
| 7.00 inch | 153.6 * 90 mm | Normally White TN, Transmissive |
| 7.00 inch | 154.21 mm * 85.92 mm | Normally Black IPS, Transmissive |
| 8.00 inch | 107.64 * 172.22 mm | Normally Black IPS, Transmissive |
| 9.00 inch | 196.61 * 114.15 mm | Normally White TN, Transmissive |
| 10.10 inch | 135.36 * 216.58 mm | Normally Black IPS, Transmissive |
Packaging & Shipping:
Packaging Details:
1. All the products are packed in right way to keep it safe.
2. For small sizes of products we use tray + carton,
3. For bigger sizes we use foam slot + carton.
4. we also design packages according to customers' requirements
