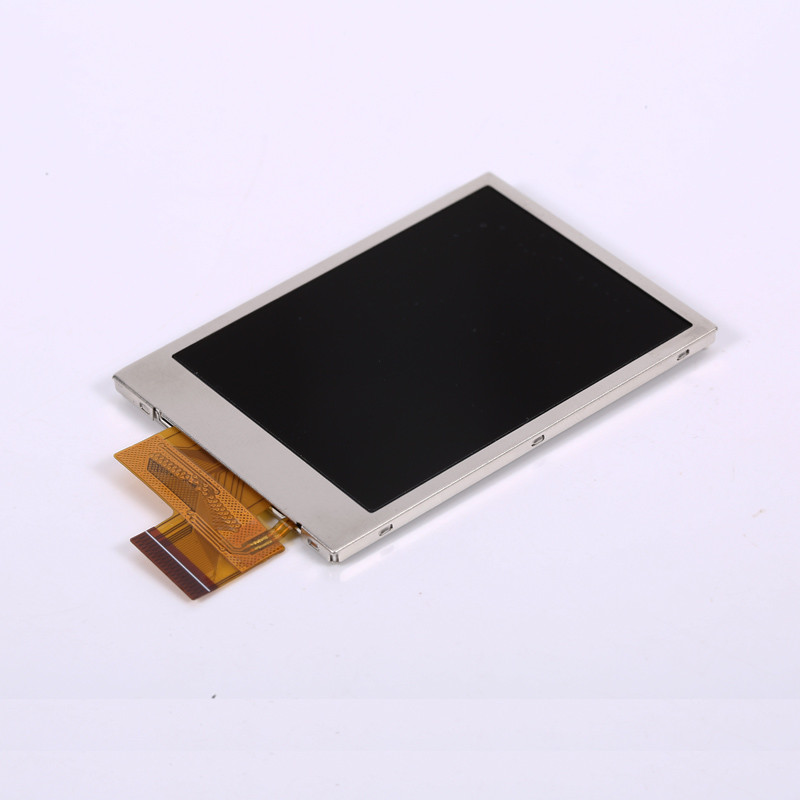

240×320 Dot Matrix Lcd Module ISO9001 ST7789V Ips Tft Screen Module
240×320 Dot Matrix Lcd Module ISO9001 ST7789V Ips Tft Screen Module
240×320 Dot Matrix Lcd Module ISO9001 ST7789V Ips Tft Screen Module 240×320 Dot Matrix Lcd Module ISO9001 ST7789V Ips Tft Screen Module 240×320 Dot Matrix Lcd Module ISO9001 ST7789V Ips Tft Screen Module 240×320 Dot Matrix Lcd Module ISO9001 ST7789V Ips Tft Screen Module
Contact Now

240×320 Dot Matrix Lcd Module ISO9001 ST7789V Ips Tft Screen Module

Minimum Order Quantity : 100 pcs Price : /
Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements Delivery Time : 7 - 15 working days
Payment Terms : T/T Supply Ability : 200K PCS / Month
Place of Origin: ShenZhen , China Brand Name: OEM
Certification: ROHS 、ISO9001 、CE Model Number: CH240QV47A
Document: Product Brochure PDF

Detail Information
LCD Type: 2.4" Dot Arrangement: 240×320 Dots
Color Filter Array: RGB Vertical Stripe Display Mode: IPS/Transmissive/NormallyBlack
Viewing Direction: 80/80/80/80 Driver IC: ST7789V
Highlight:

240×320 Dot Matrix Lcd Module

,

Dot Matrix Lcd Module ISO9001

,

ST7789V Ips Tft Screen Module

Product Description

240×320 Dot Matrix Lcd Display Module Ips ALL Viewing Direction Tft Screen Module

240×320 Dot Matrix Lcd Module ISO9001 ST7789V Ips Tft Screen Module 0

1.Product parameter

ITEM STANDARD VALUES
LCD type 2.4"
Dot arrangement 240(RGB)×320 dots
Color filter array RGB vertical stripe
Display mode IPS/Transmissive/NormallyBlack
Viewing Direction 80/80/80/80
Driver IC ST7789V
Module size 42.72(W)×60.26(H)×2.1(T) mm

2. Product Drawings



240×320 Dot Matrix Lcd Module ISO9001 ST7789V Ips Tft Screen Module 1



3.Product Description

ChengHao Display model CH240QV47A is a color active matrix thin film transistor (TFT) liquid crystal display

(LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel,

a driving IC, a back-light and FPC.
This TFT LCD has a 2.4 (Vertical screen) inch diagonally measured active display area with 240*3(RGB)*320

resolution.
The driver used for this project is the HX8238D or compatible and can display 65k/262k colors by R.G.B. signal

input. The driver is mounted on the glass and the interconnection via FPC including components to drive the

display module.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and

FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.



240×320 Dot Matrix Lcd Module ISO9001 ST7789V Ips Tft Screen Module 2

240×320 Dot Matrix Lcd Module ISO9001 ST7789V Ips Tft Screen Module 3

We can according to your demand to customized your display.

Such as customized the frame, backlight brightness, backlight shape, long-life led wick,

FPC shape and interface definition, silk-printing your Logo and so on.



240×320 Dot Matrix Lcd Module ISO9001 ST7789V Ips Tft Screen Module 4

Module Type Display Area Display Mode
1.44 inch 25.50 * 26.50 mm Normally White IPS, Transmissive
1.44 inch 25.50 * 26.50 mm Normally White TN, Transmissive
1.50 inch 29.76 * 22.32 mm Normally Black IPS, Transmissive
1.54 inch 27.72 * 27.72 mm Normally Black IPS, Transmissive
1.54 inch 27.74 * 27.74 mm Normally Black IPS, Transmissive
1.77 inch 28.03 * 35.04 mm Normally White TN, Transmissive
1.80 inch 28.03 * 35.04 mm Normally White TN, Transmissive
2.00 inch 30.60 * 40.80 mm Normally White TN, Transmissive
2.10 inch Circular display area Normally White IPS, Transmissive
2.31 inch 46.75 * 35.06 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White TN, Transmissive
2.40 inch 36.72 * 48.96 mm Normally White IPS, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White TN, Transmissive
2.80 inch 43.20 * 57.60 mm Normally White IPS, Transmissive
3.00 inch 36.72 * 65.28 mm Normally Black IPS, Transmissive
3.20 inch 48.60 * 64.80 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally White TN, Transmissive
3.50 inch 70.08 * 52.56 mm Normally Black IPS, Transmissive
4.00 inch 51.84 * 86.4 mm Normally Black IPS, Transmissive
4.00 inch 71.86 * 70.18 mm Normally Black IPS, Transmissive
4.30 inch 95.04 * 53.86 mm Normally White TN, Transmissive
4.30 inch 95.04 * 53.86 mm Normally Black IPS, Transmissive
5.00 inch 110.88 * 62.83 mm Normally White TN, Transmissive
5.00 inch 108.00 * 64.8 0mm Normally Black IPS, Transmissive
5.50 inch 68.04 * 120.96 mm Normally Black IPS, Transmissive
6.00 inch 74.52 * 132.48 mm Normally Black IPS, Transmissive
7.00 inch 154.08 * 85.92 mm Normally White TN, Transmissive
7.00 inch 153.6 * 90 mm Normally White TN, Transmissive
7.00 inch 154.21 mm * 85.92 mm Normally Black IPS, Transmissive
8.00 inch 107.64 * 172.22 mm Normally Black IPS, Transmissive
9.00 inch 196.61 * 114.15 mm Normally White TN, Transmissive
10.1 inch 135.36 * 216.58 mm Normally Black IPS, Transmissive



240×320 Dot Matrix Lcd Module ISO9001 ST7789V Ips Tft Screen Module 5
