300nits SPI Circular Tft Lcd Display 40P Open Frame Lcd Module
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | Chenghao/Oem |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | CH400WV17A-CTW |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Product Name: | Square Color LCD Display | LCD Type: | 4”TFT+CTP |
|---|---|---|---|
| Resolution: | 480x480 | Display Mode: | IPS |
| Viewing Direction: | All | TFT Driver IC: | ST7701S |
| CTP Type: | G+F+F | Surface Treatment: | 6H |
| Luminance: | 1000 Cd/m2 | Driver IC: | ST7701S |
| Highlight: | 3.95 inch Square Color LCD Display,480x480 Square Color LCD Display,SPI RGB LCD Touch Screen |
||
Product Description
LCD Manufacture 4 Inch Color TFT Lcd Module 480x480 Pixels Square Touch Screen
1. Specification of TFT Module
| Module No | CH400WV17A-CTW | -- |
| Size | 3.95 | Inch |

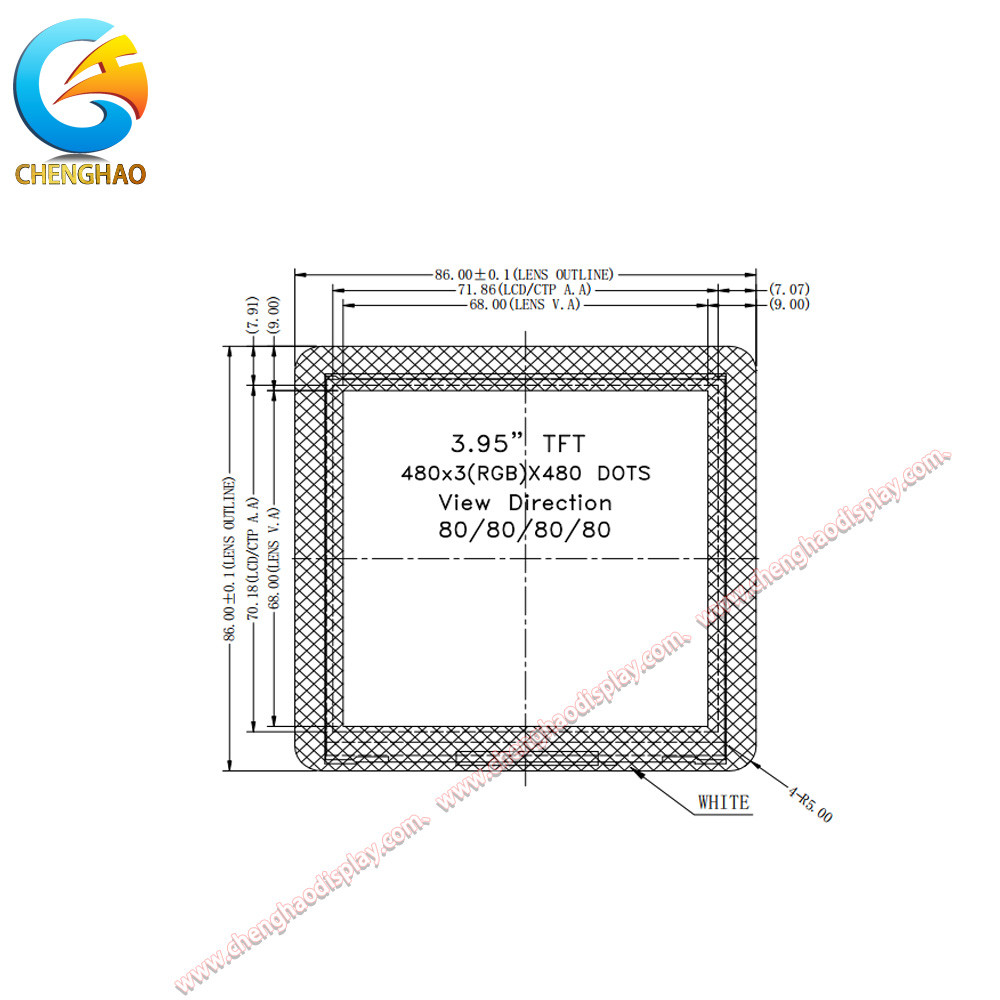

| Outline Dimension | 86(W)*86(H)*3.55(T) | mm |
| Active Area | 71.856(W)*70.176(H) | mm |
| Interface | 3 Line SPI+24 Bit RGB | -- |
| Viewing Direction | 80/80/80/80 | -- |
| Operating Temperature | -20 ~ +70 | °C |
| Storage Temperature | -30 ~ +80 | °C |

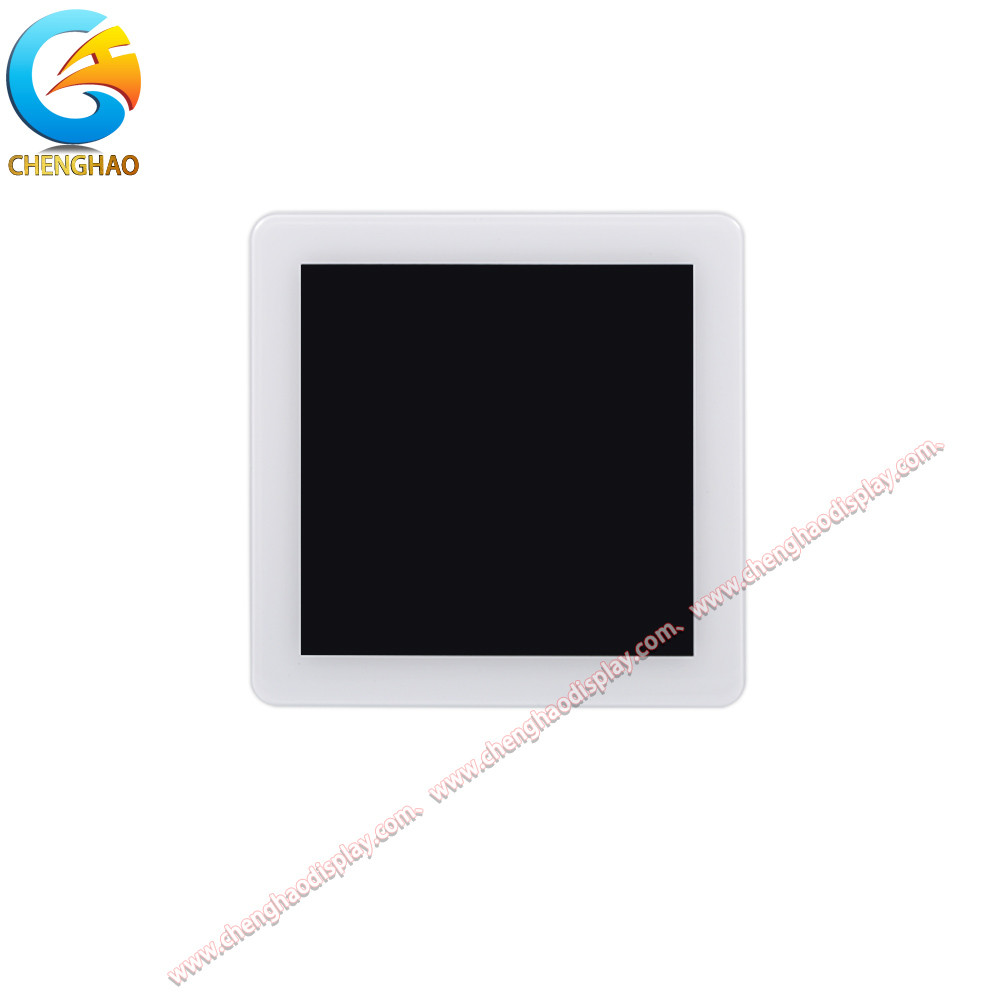

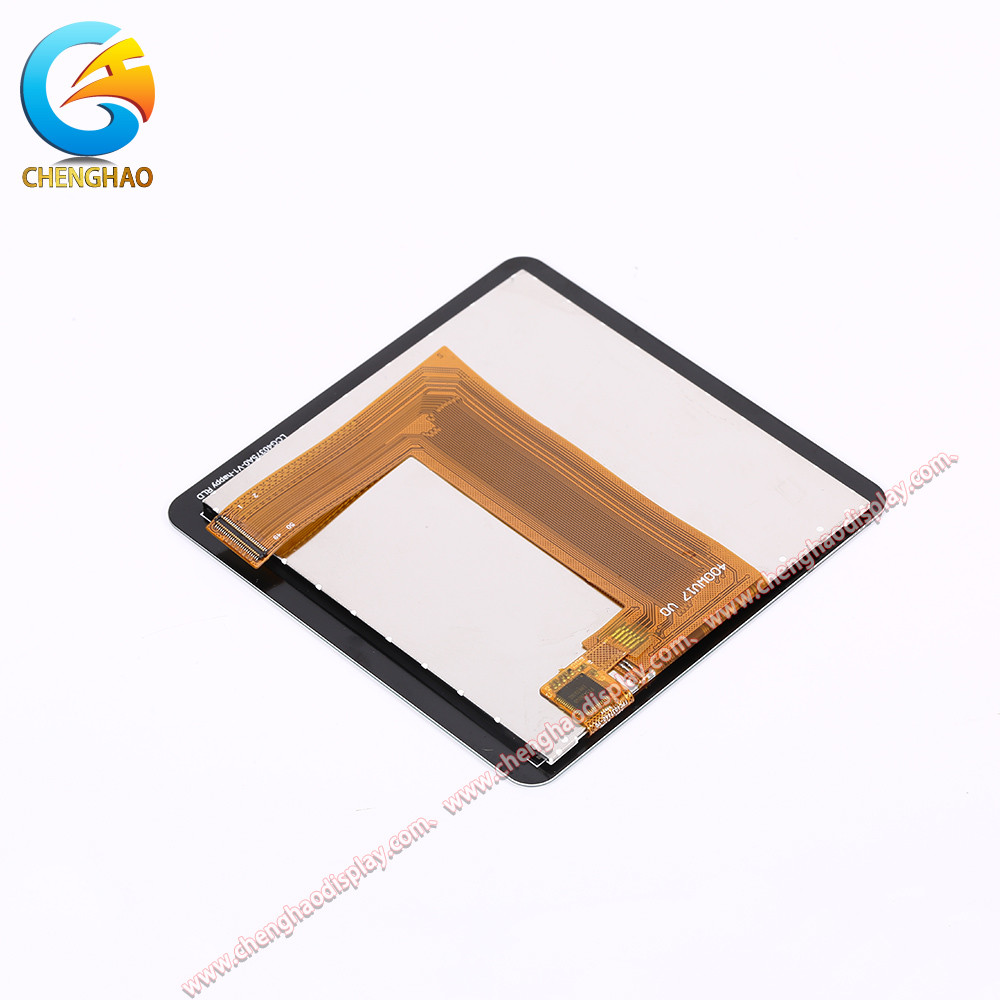

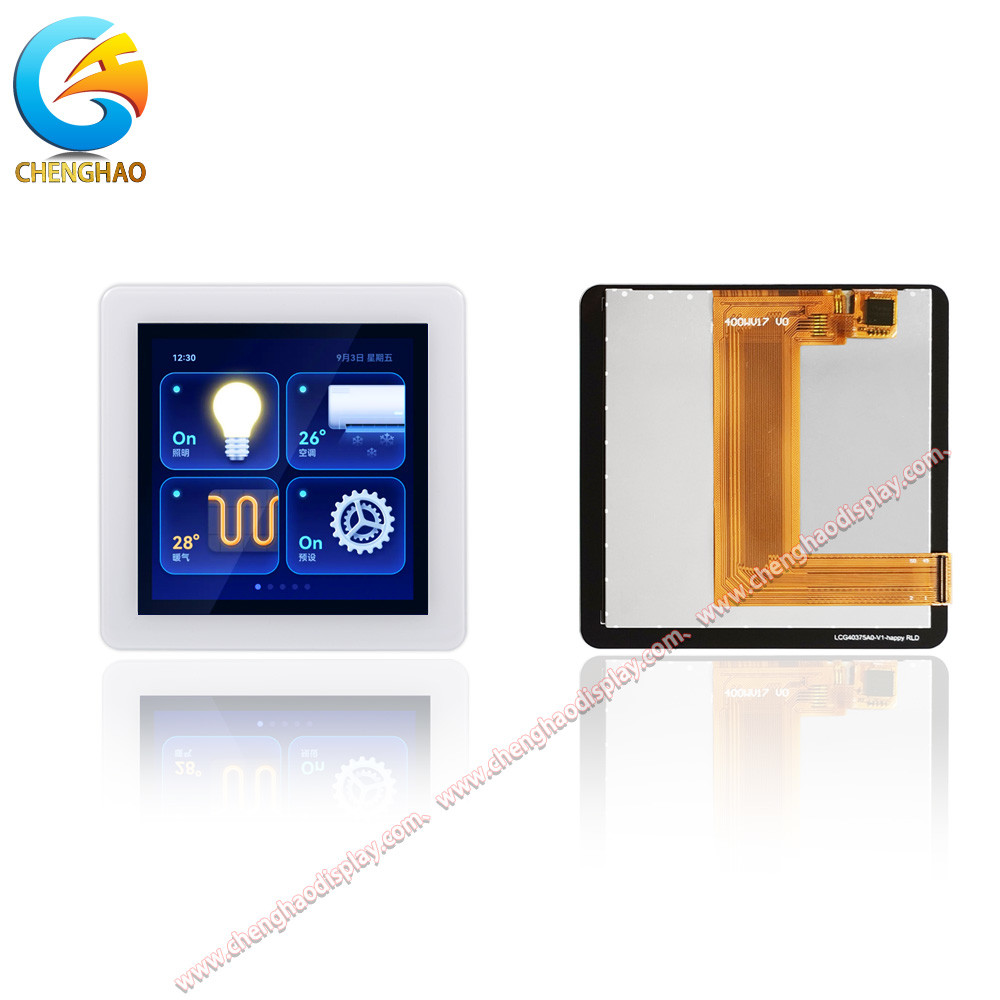

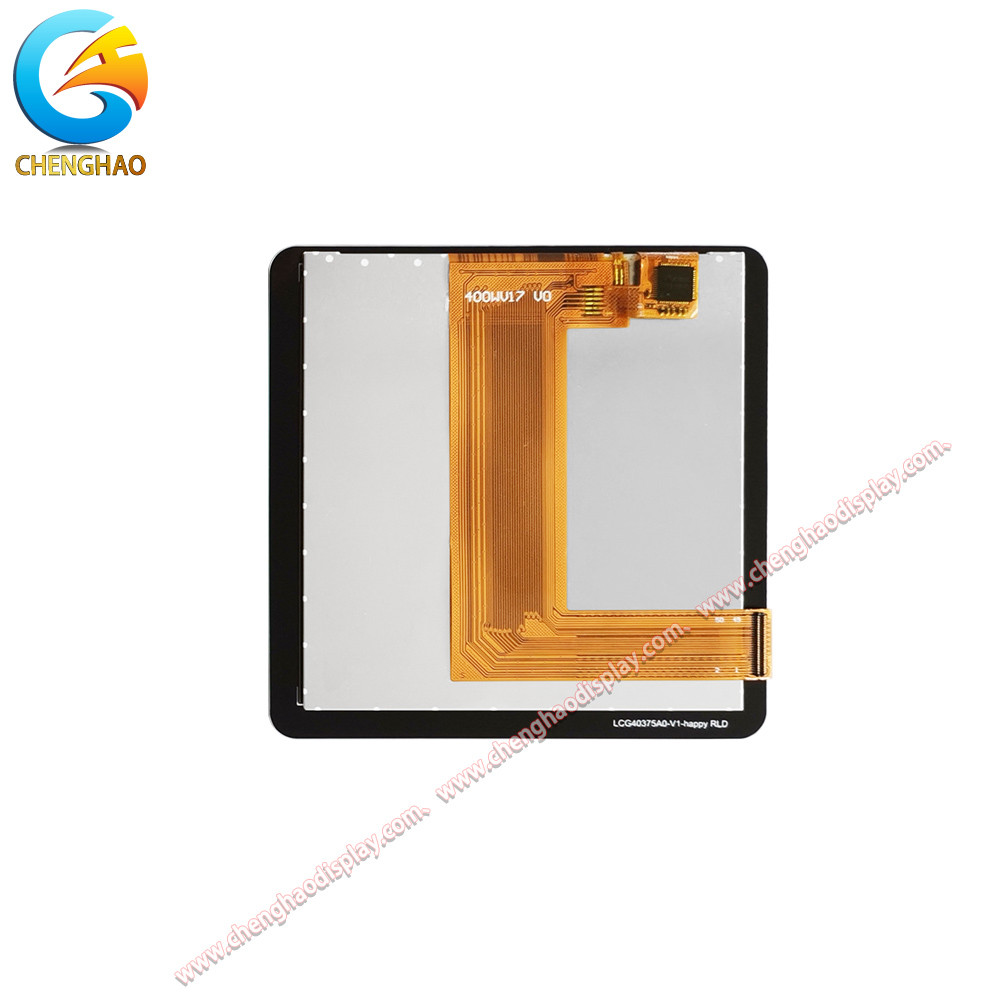

2. Description of TFT Display Module
CHenghao Optoelectronic CH400WV17A-CTW is a square color TFT LCD display Module used in the medical field. It adopts IPS display technology, allowing users to read the screen with a free viewing angle, which is especially important when the display is used outdoors.
This square color LCD screen has been tested in anti-static (EMC>=8Kv), high and low temperature (-20~+70 ℃), anti-aging (20K Hr), anti-electromagnetic interference (EMI) and other experimental tests, with excellent performance Well received by customers.
There is a 3.97 inch color display area of this square color LCD display, which can display 480*480 pixel video animations, and supports multi-touch function, users can easily achieve and display with the display by touching the capacitive panel of interaction. Support 3 line SPI+24 bit RGB multi-interface to communicate with the outside world.
If this square color LCD touch screen does not meet your project needs, we have many similar display solutions available to you, or we can also customize display solutions according to your requirements, you can email or online customer service Contact us for more information.
3. Qucik Detail of TFT Lcd Display Module
4. Our Products
| Size | Part No. | Shape | Resolution | Size | Part No. | Shape | Resolution |
| 1.1" | CH110T001A | Square screen | 96(RGB)*96 | 4.3" | CH430WQ18A | horizontal screen | 480*3(RGB)*272 |
| 1.14" | CH114QV01A | vertical screen | 135(RGB)×240 | 4.3" | CH430WV15A | vertical screen | 480*(RGB)*800 |
| 1.3" | CH130QV03A | Square screen | 240*(RGB)*240 | 4.41" | CH441FH01A | horizontal screen | 1920*(RGB)*1080 |
| 1.44" | CH144QQ16A | Square screen | 128*(RGB)*128 | 4.5" | CH450FW02A | vertical screen | 480*(RGB)*854 |
| 1.47" | CH147QV01A | vertical screen | 172*(RGB)*320 | 5.0" | CH500WQ03A | horizontal screen | 480*(RGB)*272 |
| 1.5" | CH150DS01A | horizontal screen | 480*240 | 5.0" | CH500WV05B | horizontal screen | 800*(RGB)*480 |
| 1.54" | CH154QV05A | Square screen | 240*(RGB)*240 | 5.0" | CH500FW09A | vertical screen | 480*(RGB)*854 |
| 1.8" | CH180QQ09B | vertical screen | 128*(RGB)*160 | 5.5" | CH550FH01A | vertical screen | 1080*(RGB)*1920 |
| 1.9" | CH190QV01A | vertical screen | 170*(RGB)*320 | 7.0" | CH700WV03A | horizontal screen | 800*(RGB)*480 |
| 2.0" | CH200QV11A | vertical screen | 320*3(RGB)*240 | 7.0" | CH700WS16A | horizontal screen | 1024*3(RGB)*600 |
| 2.1" | CH210WV01A | Round Screen | 480*(RGB)*480 | 7.0" | CH700WX06A | vertical screen | 800*(RGB)*1280 |
| 2.2" | CH220QV06A | vertical screen | 240(RGB)*320 | 7.0" | CH700FH01B | vertical screen | 800*(RGB)*1280 |
| 2.31" | CH231QV07A | horizontal screen | 320*(RGB)*240 | 8.0" | CH800WX02A | vertical screen | 800*(RGB)*1280 |
| 2.4" | CH240QV58A | vertical screen | 240*(RGB)*320 | 8.0" | CH800FH03A | vertical screen | 1200*(RGB)*1920 |
| 2.8" | CH280QV36A | vertical screen | 240*3(RGB)*320 | 9.0" | CH900WV01A | horizontal screen | 800*(RGB)*480 |
| 3.5" | CH350HV40A | vertical screen | 320*(RGB)*480 | 9.0" | CH900WS01A | horizontal screen | 1024*(RGB)*600 |
| 4.0" | CH400WV22A | vertical screen | 480*800 | 10.1" | CH101WS01A | horizontal screen | 1024*(RGB)*600 |
| 10.1" | CH101WX02A | horizontal screen | 1280*(RGB)*800 |
6. Our Service
1.We provide one-year product after-sales guarantee service to all customers who purchase our products.
2. For any technical problems encountered by customers in the process of testing or using our products, our technical team will provide customers with remote online technical support services at any time.
3. We are a factory-type supplier with ISO certification. Our products on sale have undergone strict quality inspection and testing before shipment, and have also passed CE/ROHS certification.
4. We have a professional after-sales service team, which can provide strong guarantee and logistical technical services for your orders.
5. Replacement within 30 days after the shipment of products from us due to products' problems.
6. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
7. All goods will be inspected and tested before shipment.
