9 Inch Color LCD Screen 1024x600 50 Pin 24bit RGB LCD Display Module

Product Description

9 Inch Color LCD Screen 1024x600 50 pin 24bit RGB LCD Display Module

1. Specification

2. Description

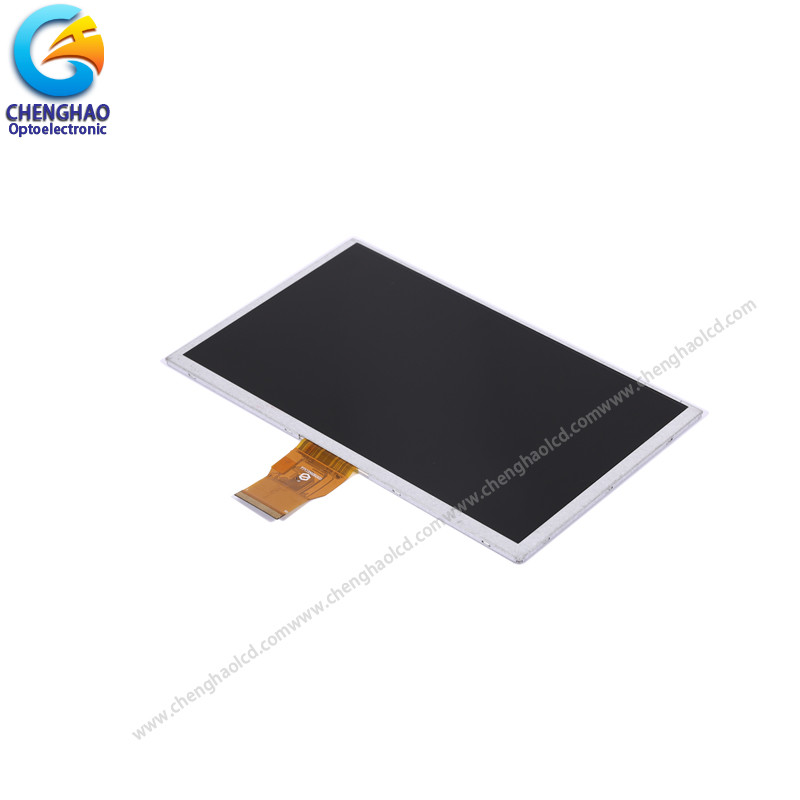

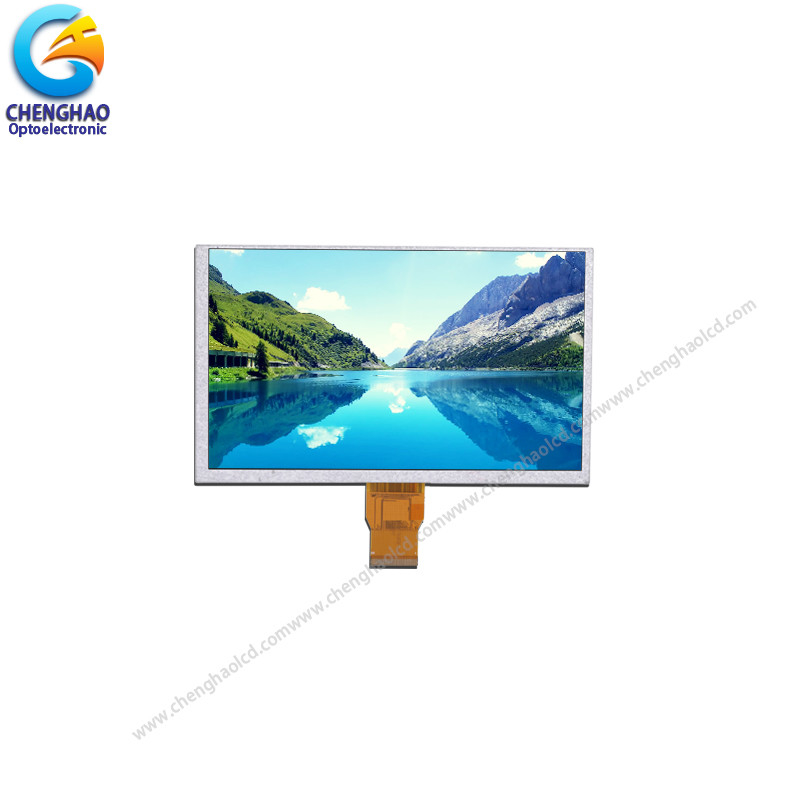

Chenghao Optoelectronic CH900WS01A is a 9 inch color LCD screen installed on a vending machine, with a resolution of 1024*600, the diagonal length of its display area is 9.0 inches, and it can display 16.7M colors. This 9 inch color LCD screen is TN TFT, users can read the screen content clearly from 12 O'clock Viewing direction. External devices can interact with the LCD screen through 24-bit Parallel RGB Interface.
CH900WS01A is a very cost-effective color LCD screen, which has passed CE and RoHs certification, and can operate normally over 20k Hr in the environment of -20~+70 ℃.

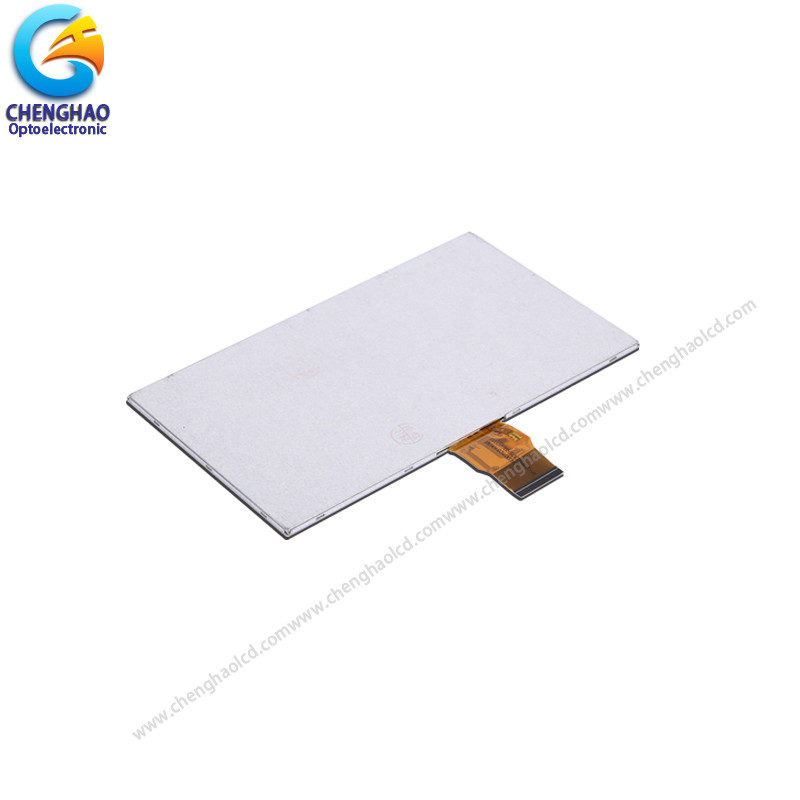

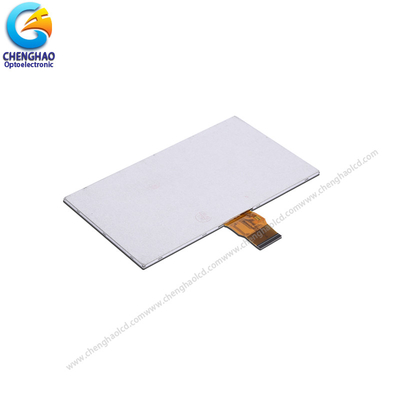

FPC and backlight can be customized according to customer requirements. The customizable content includes FPC shape, backlight brightness, interface definition, installation touch function, etc.

3. Drawings

Notes:
(1) Display Type : 9.0 inch TFT

(2) Viewing Direction :  12 o'clock
(3) Lcd Drive IC :  ***
(4) Polarizer Mode : ***
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Quick Detail

LCD type: 9.0”TFT
Dot arrangement: 1024×3(RGB)×600 dots
Color Pixel Arrangement: RGB vertical stripe
Display Mode: TN / Transmissive / Normally white
Viewing Direction: 12 o’clock
Gray Scale Inversion Direction: 6 o’clock
Module size: 210.7(W)×126.5(H)×5.0(T) mm
Active area: 196.61(W)×114.15(H) mm
Dot pitch: 0.192 (W)×0.19025 (H) mm
Interface: 24-bit Parallel RGB Interface
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Weight: TBD g

5. Application

6. FAQ

Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our Hight quality and service.

Q: How to place bulk order?
A:

1) Tell us model number, quantity, color and other special requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.

Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods
rapidly at door. We also ship by economick method such as air cargo and sea cargo, direct line, air mail according to customers'
request.

Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and
final quanltiy control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfication.

Q: Can you provide OEM service?
A: Yes! We can provide professional OEM service.

Q: Do you have any after-sales service?
A: Yes! Our productt has professional after-sales service dept. Follow up R.M.A. Items service and upload product fireware and app
for you download.
