10.1" LCD Touch Screen 1024x600 101 Touch Screen With Capacitive Touch

Product Description

10.1" Lcd Touch Screen 1024x600 101 Touch Screen With Capacitive Touch

1. Specification

2. Description

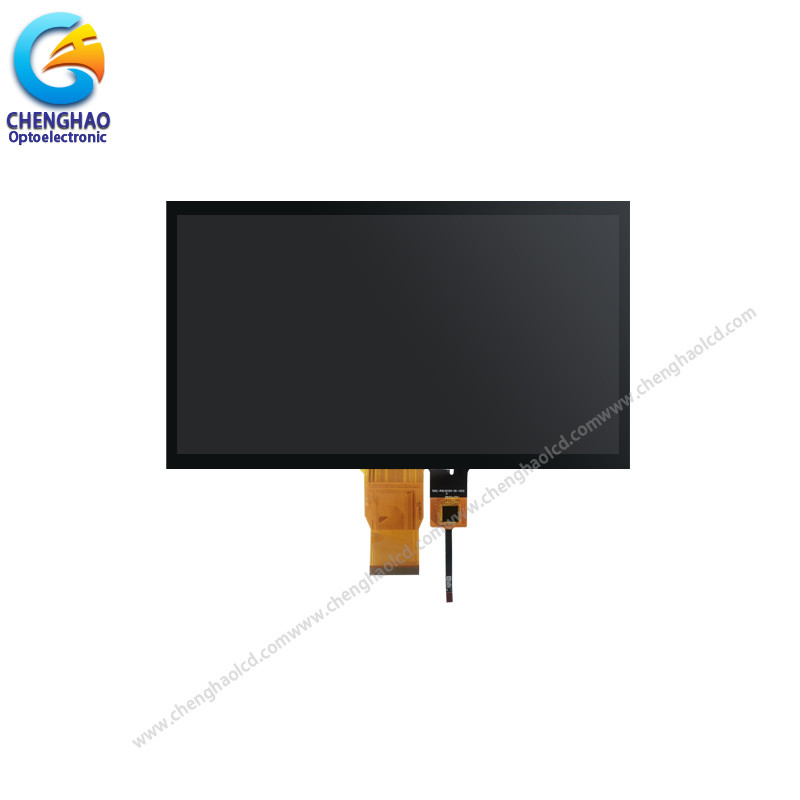

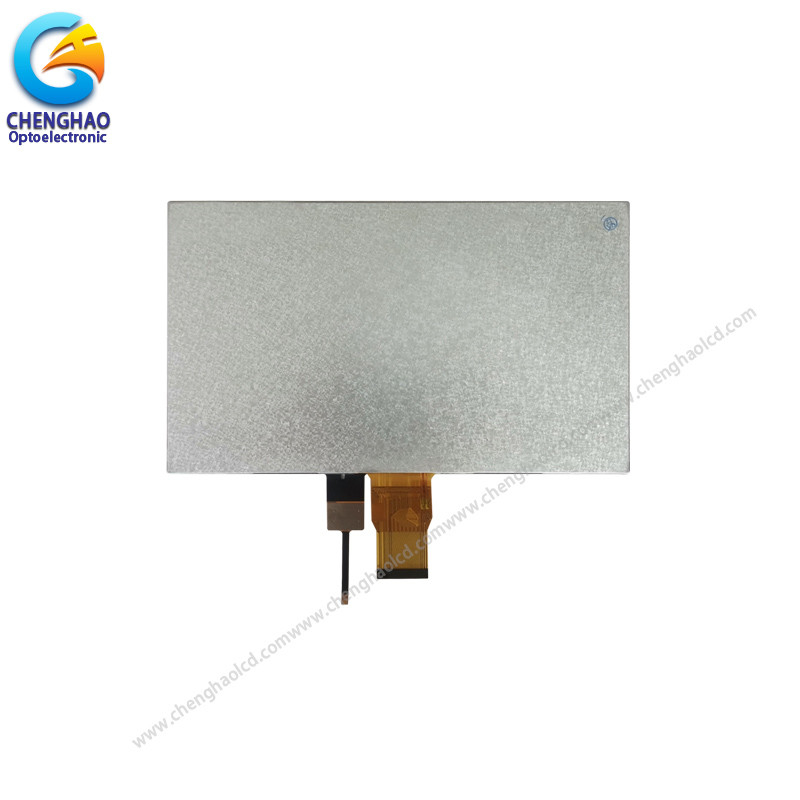

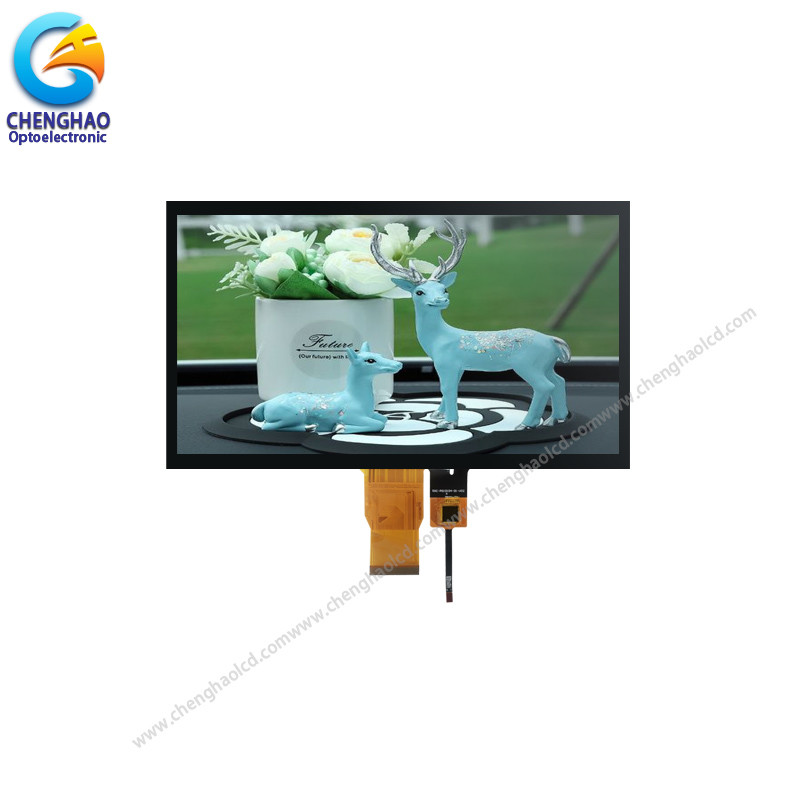

Chenghao Optoelectronic CH101WS03A-CT is a color liquid crystal display installed with a capacitive touch panel. RGB and I2C are used as the communication interface of the lcd panel and touch panel respectively. It has been operated for more than 20000 h in the environment of -20~+70 ℃. There is a lcd panel of this touch lcd display with a diagonal measurement of 10.1 inches, which can display 1024*600 Resolution videos or pictures. In addition, this 10.1 inch touch display adopts IPS display mode, and the viewing angle is 80/80/80/80, which means that CH101WS03A-CT supports users to read the screen with different viewing angles.
If this touch display module cannot fully meet your project requirements, we can modify it according to your requirements. The modifiable content includes backlight (BL) brightness, FPC shape structure design, lcd interface, touch function, etc.

3. Drawings

Notes:
(1) Display Type : 10.1 inch TFT+CTP

(2) Viewing Direction :   80/80/80/80
(3) Lcd Drive IC :  ***
(4) Polarizer Mode : ***
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Quick Detail

* MODEL NO. :CH101WS03A-CT
* Module type:10.1”TFT+CTP
* Display shape: horizontal screen
* Display Mode: IPS/ Transmissive / Normally Black
* Resolution:1024 *600 dots
* Module size:235*143*6.6 mm
* TFT Active area:222.72*125.28 mm
* TFT Interface:RGB
* Color : 16M
* Contrast : 800
* CTP DRIVE IC: GT9271
* OPERATING TEMP: -20°C~+70°C
* STORAGE TEMP: -30°C~+80°C
* UNMARKER TOLERANCE: ±0.20
* REQUIREMENTS ON ENVIRONMENTAL PROTECTION: RoHS
* FPC Number:50
* Back light Type:42 pcs White LED
* Life Time:20000 Hr
* BL CIRCUIT DIAGRAM:
* Luminace: 450 cd/m2
* Touch Panel Type:capacitive touch panel
* Touch Panel Interface:I2C
