Medical 7 Inch Capacitive Touch Screen Display 400 Nits 800x480 SPI Interface

Product Description

Medical 7 Inch Capacitive Touch Screen Display 400 Nits 800*480 SPI Interface

1. Specification

2. Description

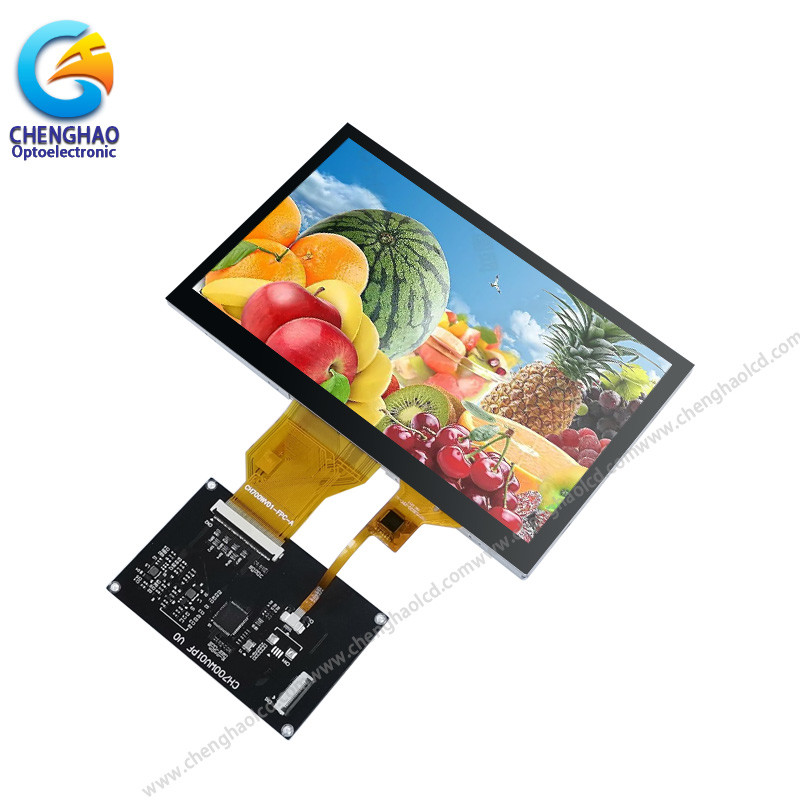

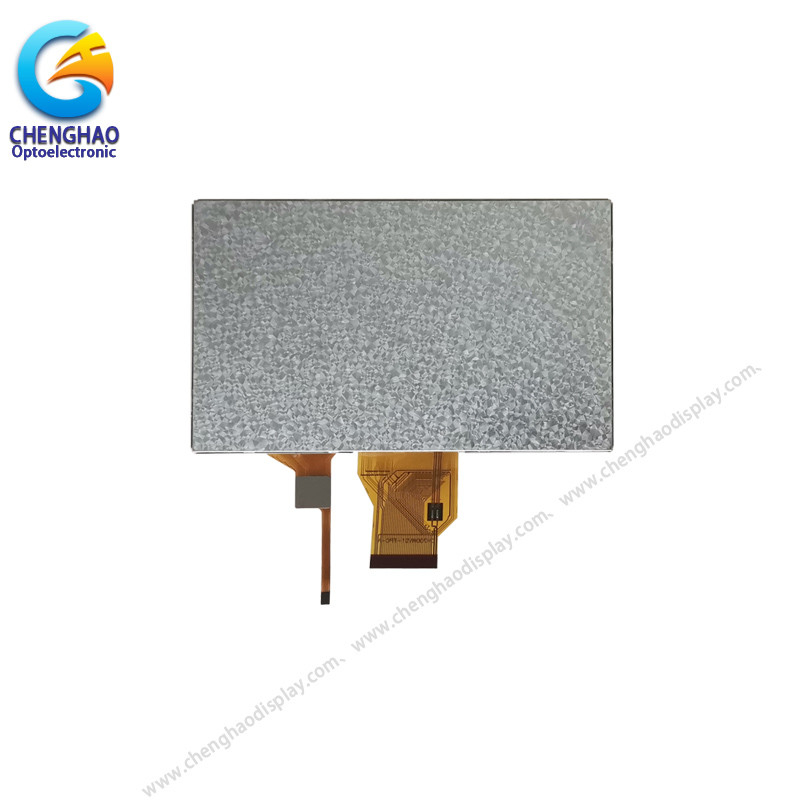

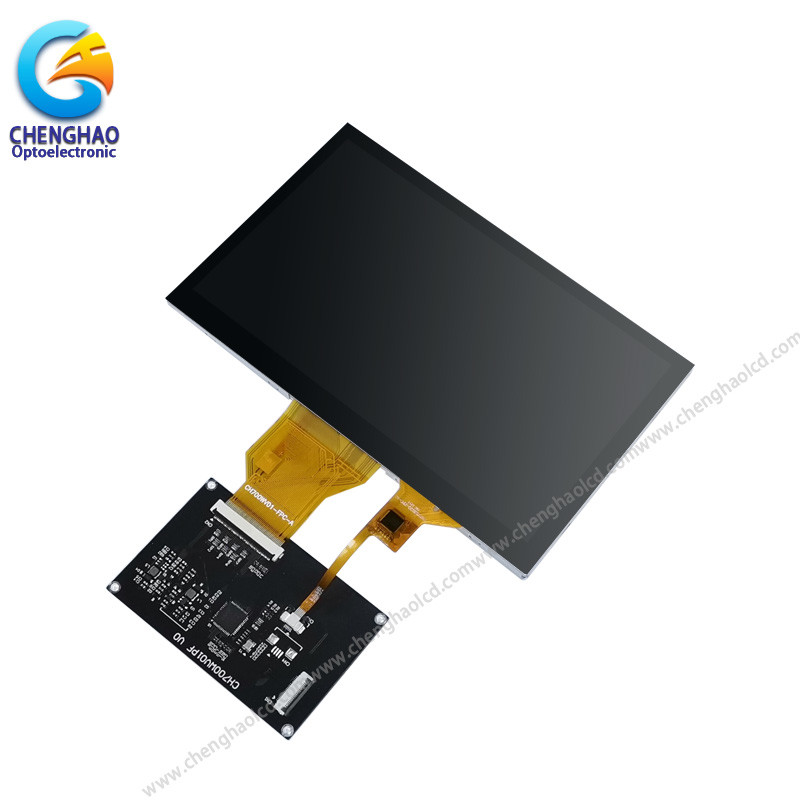

ChengHao Display model CH700WV01G-CTE-PF is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a Capacitive touch screen ,a TFT LCD panel, a driving IC, a back-light and FPC.
There is a 7.0 (Horizontal screen) inch diagonally measured active display area of this tft lcd panel, the resolution is 800*3(RGB)*480 dots, and the best viewing angle is 12 O'clock.
The driver used for this project can display 16M colors by R.G.B. signal input. The driver is mounted on the glass and the interconnection via FPC including components to drive the display module. Support SPI interface.
In addition, FPC can also be customized according to customer requirements, such as modifying back-light and FPC structure, interface definition, etc.
RoHS Compliance & Halogen Free.

3. Drawings

Notes:
(1) Display Type : 7"TFT+CTP

(2) Viewing Direction : 12 o'clock
(3) Lcd Drive IC :  ***
(4) Polarizer Mode : ***
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Quick Detail

* MODEL NO. :CH700WV01G-CTE-PE
* Module type:7" TFT+CTP
* Display shape: horizontal screen
* Display Mode:TN/ Transmissive / Normally White
* Number of Dots:800*480
* Module size:165.6*100.6*9 mm
* TFT Active area:154.08* 85.92
* TFT Interface:SPI
* Color : 16.7M
* Contrast : 500
* VIEWING DIRECTION: 12O'clock
* LCD DRIVE IC: ***
* POLARIZER MODE: TRANSMISSIVE/ Normally White
* OPERATING TEMP: -20°C~+70°C
* STORAGE TEMP: -30°C~+80°C
* UNMARKER TOLERANCE: ±0.20
* REQUIREMENTS ON ENVIRONMENTAL PROTECTION: RoHS
NEW
* FPC Number:50pin
* Back light Type:White LED
* Life Time:20000 Hr
* BL CIRCUIT DIAGRAM:
* Luminace: 400 cd/m2
* Touch Panel Type:capacitive touch panel
* Touch Panel Interface:i2c
* Touch Panel IC: ******

5. Application

6. FAQ

Q1: Do you accept customization displays and touch screens?
A: Sure, you can customization the FPC,Backlight and the touch screen.

Q2: What type of interface is your display screen?
A: Small sized of displays generally support SPI,MCU,RGB,MIPI.Medium sized displays generally support LVDS,MIPI,EDP.Different specifications use different interfaces.

Q3: Do you used capacitive touch screen or resistive touch screen.
A: We have capacitive touch screen and resistive touch screen .

Q4: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no stock,it will take some time,and then wait for the materials to come back to sample. But the customer needs to pay the sample fee and express fee.

Q5: How long is your lead time for mass production?
A: It takes about 20 - 45 working days for mass production,depending on the model and order quantity.

Q6: How to ensure long-term stable delivery?
A: First,we will recommend products that can be delivered for a long time to customers,and second,we will have a large number of stocks in advance for a long time.
