4.95 Inch IPS LCD Display Full Wide VGA 854x480 Pixels Support Multi Interface

Product Description

4.95 Inch IPS LCD Display Full Wide VGA 854x480 Pixels Support Multi Interface

1. Specification

2. Description

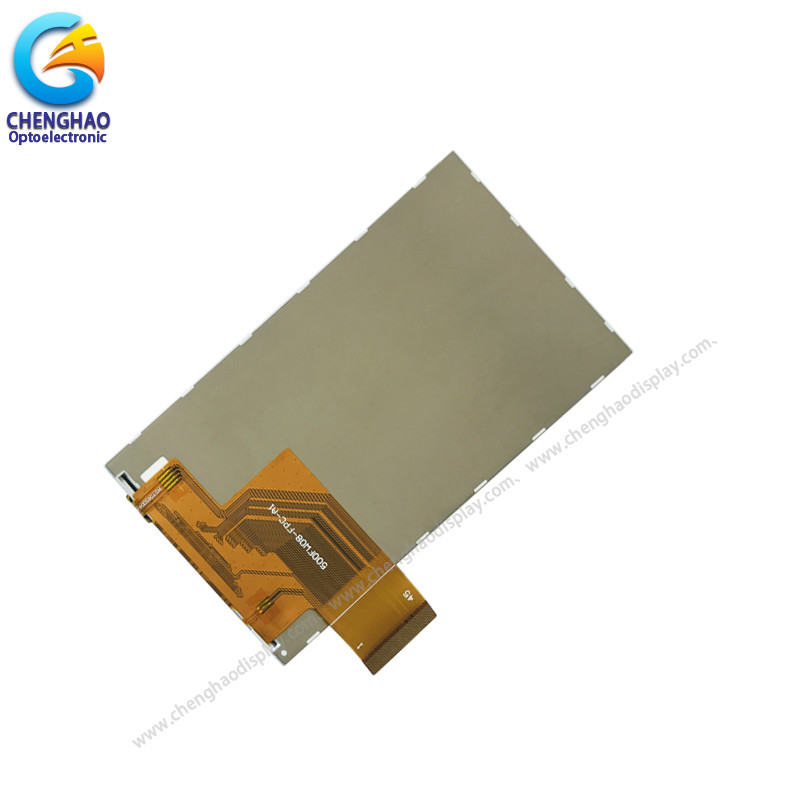

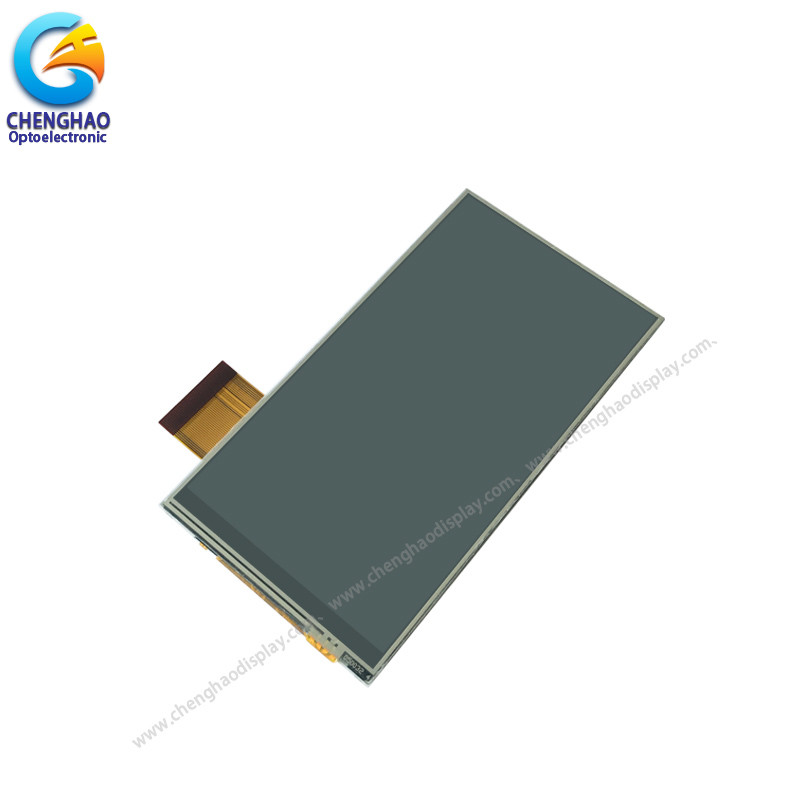

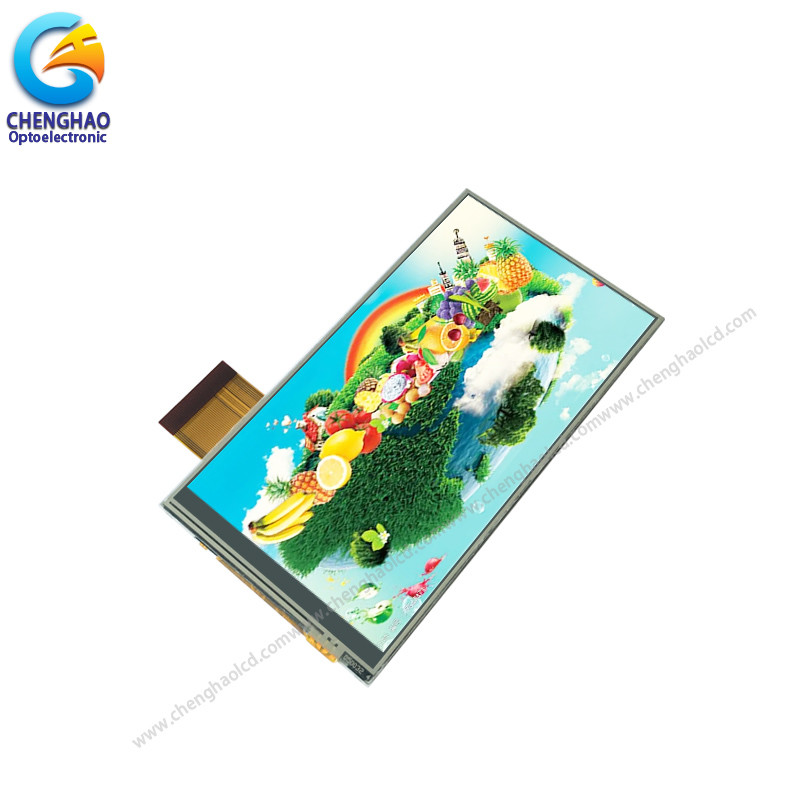

CHENGHAO Display CH500FW08A-T is a color active matrix Tft Lcd that uses amorphous silicon TFT as a switching device. This Tft Lcd is composed of a TFT LCD panel, a driving IC, a touch panel, a back-light and FPC. There is a color display area of this tft lcd display with a diagonal length of 4.95 inches, a resolution of 480*854 pixels, a color of 16M, and supports IPS full viewing angle (80/80/80/80). This touch screen lcd 5 inch has a wide operating temperature (-20~+70℃), a service life of more than 20,000H, and supports various customization services including FPC, interface, and brightness.
CH500FW08A-T is a full-view color display installed in financial payment terminals, which can provide buyers with certifications including CE, RoHS and more than one year of quality assurance service. Of course, if this 5 inch tft lcd does not meet your project requirements at all, we can also provide you with professional display solution customization services, you can directly consult our online customer service to obtain relevant information.

3. Drawings

Notes:
(1) Display Type : 4.95" TFT+RTP
(2) Viewing Direction :  80/80/80/80
(3) Lcd Drive IC : ***
(4) Polarizer Mode : ***
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Quick Detail

Lcm Name: Full Wide VGA 854x480 Pixels 4.95 Inch IPS LCD Display Support Multi Interface

Lcm No: CH500FW08A-T

Lcm Type: 4.95 inch TFT+RTP

Display Mode: IPS/Normally Black

Resolution: 480x854 dots

Viewing Direction: 80/80/80/80

5. Application

6. Why Choose Us?

The high quality products enable it to build a long-term relationship with world-famous enterprises in the industries
(1) Competitive Price
Own-owned factories offer lower prices and better quality assurance.
(2) Strong Technical Strength
We are a top supplier specializing in the production of color LCD screens. We have a technical team with rich experience in product research and development, and can provide customers with professional technical support and customized consulting services at any time, which is very important for cooperative customers with special project needs.
(3) Long-term Partner
Products are sold to more than 40 countries, so from Chenghao Optoelectronic you can get more stable supplying promise;
(4) Professional Service
We have a professional after-sales team that can provide you with after-sales consulting services 24 hours a day.At the same time, if you encounter any problems in the process of using our products, you can give us feedback, and our technical engineers will provide you with online remote consulting services at any time.
(5) Quality to be ensure
All panels are 100% brand new, without false panels; All packages have labels and serial numbers for easy viewing by customers;
