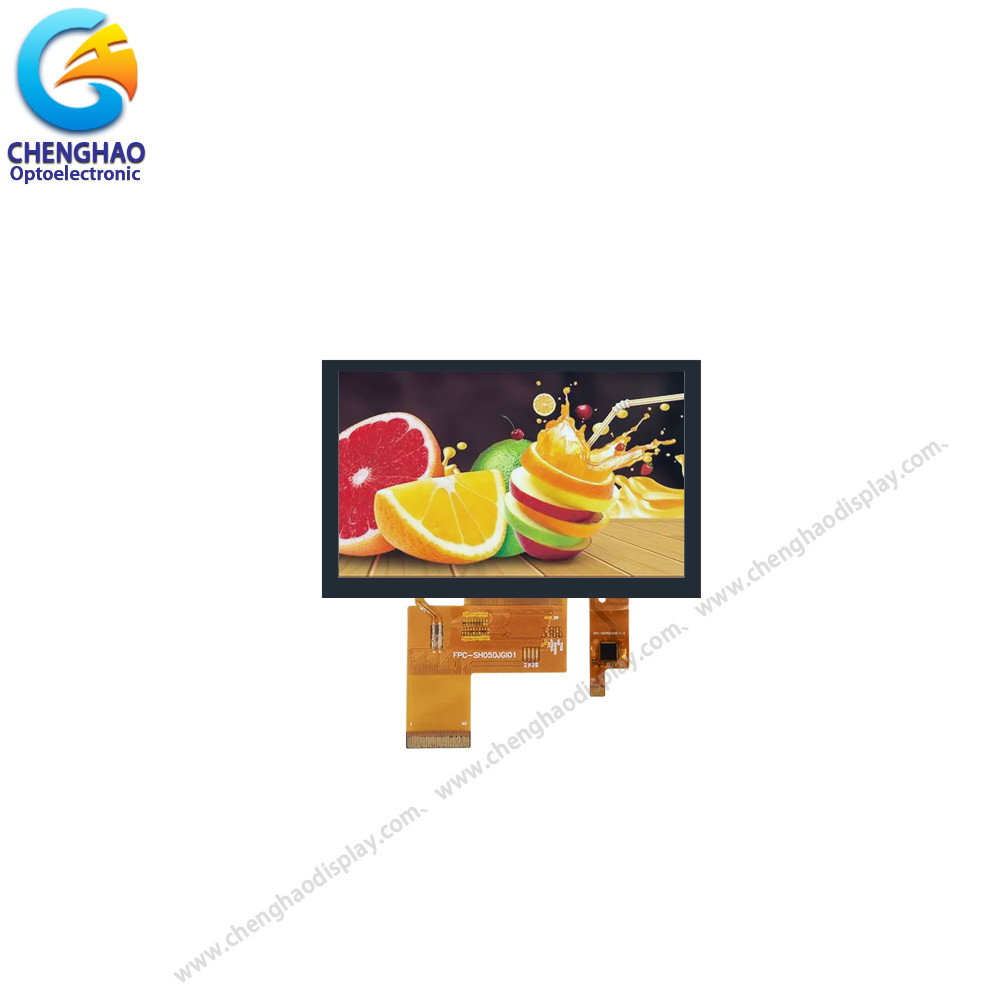

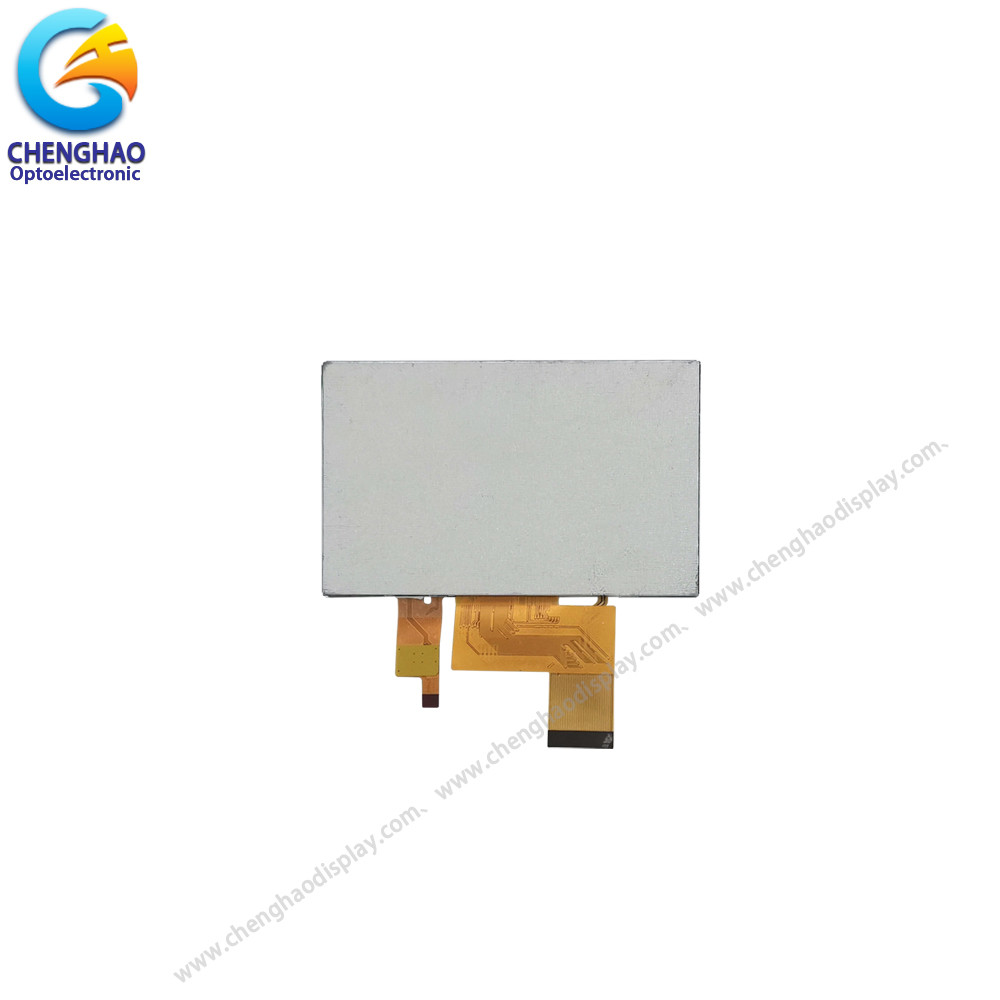

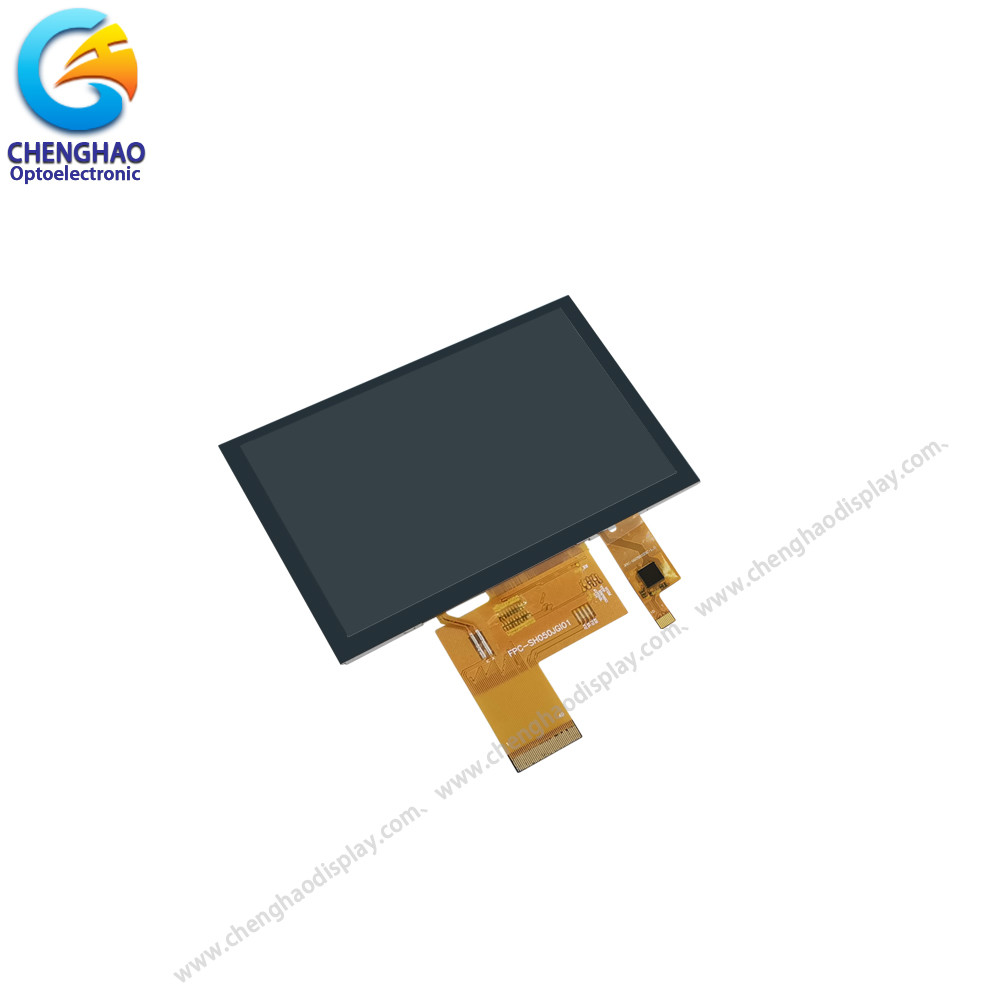

Sunlight Readable 5.0inch LCD Display Module All Viewing Angle

Product Description

Sunlight Readable 5.0inch LCD Display Module All Viewing Angle

Sunlight Readable Lcd Display Modules 5.0 inch 800*480 IPS All Viewing Angle

1. Specification

2. Description

ChenghaoLCD CH500WV05E-CT is a High Brightness Color lcd Screen, using RGB Interface, the brightness is 600 cd/m2, and it can operate normally over 20000H in the temperature range of -20~+70. In addition, there is a 5.0 inch color active display area of this color lcd screen, which can display videos or pictures with 16.7M colors and 800*480 pixels. It is worth mentioning that FPC, backlight brightness, and interface type are all customized components, which can be modified and customized according to customer requirements.
CH500WV05E-CT is a color LCD touch screen display installed in the POS machine, not only supports IPS All Viewing Direction, but also can realize Sunlight Readable. This tft lcd display modules can provide buyers with CE/RoHS certificate and more than one year warranty service.

3. Drawings

Notes:
(1) Display Type : 5.0” Tft+CTP
(2) Viewing Direction : 80/80/80/80
(3) TP Type:Capacitive Touch Panel
(4) Polarizer Mode : Transmissive / Negative
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS

4. Application

5. Our Service

(1).We provide one-year product after-sales guarantee service to all customers who purchase our products.
(2). For any technical problems encountered by customers in the process of testing or using our products, our technical team will provide customers with remote online technical support services at any time.
(3). We are a factory-type supplier with ISO certification. Our products on sale have undergone strict quality inspection and testing before shipment, and have also passed CE/ROHS certification.
(4). We have a professional after-sales service team, which can provide strong guarantee and logistical technical services for your orders.

(5). Replacement within 30 days after the shipment of products from us due to products' problems.

(6). We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.

(7). All goods will be inspected and tested before shipment.

6. FAQ

Q1.What is the minimum order quantity for your products?

A1.Minimum order quantity starts from ONE piece .

Q2. How can we get samples from you ?

A2.Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to
charge boot samples cost and post courier freight.

Q3.When will you send the parts to me?

A3.We will send the parts to you within 3-5 workdays after receiving your payment.

Any other more questions, please feel free to contact us. We are always at your service !
