300nits SPI Circular Tft Lcd Display 40P Open Frame Lcd Module
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Price : | / |
|---|---|---|---|
| Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements | Delivery Time : | 7-15 working days |
| Payment Terms : | T/T | Supply Ability : | 300Kpcs/month |
| Place of Origin: | ShenZhen, China | Brand Name: | Chenghao/Oem |
|---|---|---|---|
| Certification: | ROHS、ISO9001、CE | Model Number: | CH320QV18A |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Product Name: | LCD TFT Panel | Resolution: | 240x320 Dots |
|---|---|---|---|
| Display Mode: | Transmissive/IPS/Normally Black | Viewing Direction: | 80/80/80/80 |
| Color: | 65K/262K | Contrast: | 800:1 |
| Opeating Temp: | -20 ~ +70 ℃ | Storage Temp: | -30 ~ +80 ℃ |
| Highlight: | 3.2 inch TFT LCD Display Screen,QVGA TFT LCD Display Screen,Free Viewing Angle TFT LCD Screen |
||
Product Description

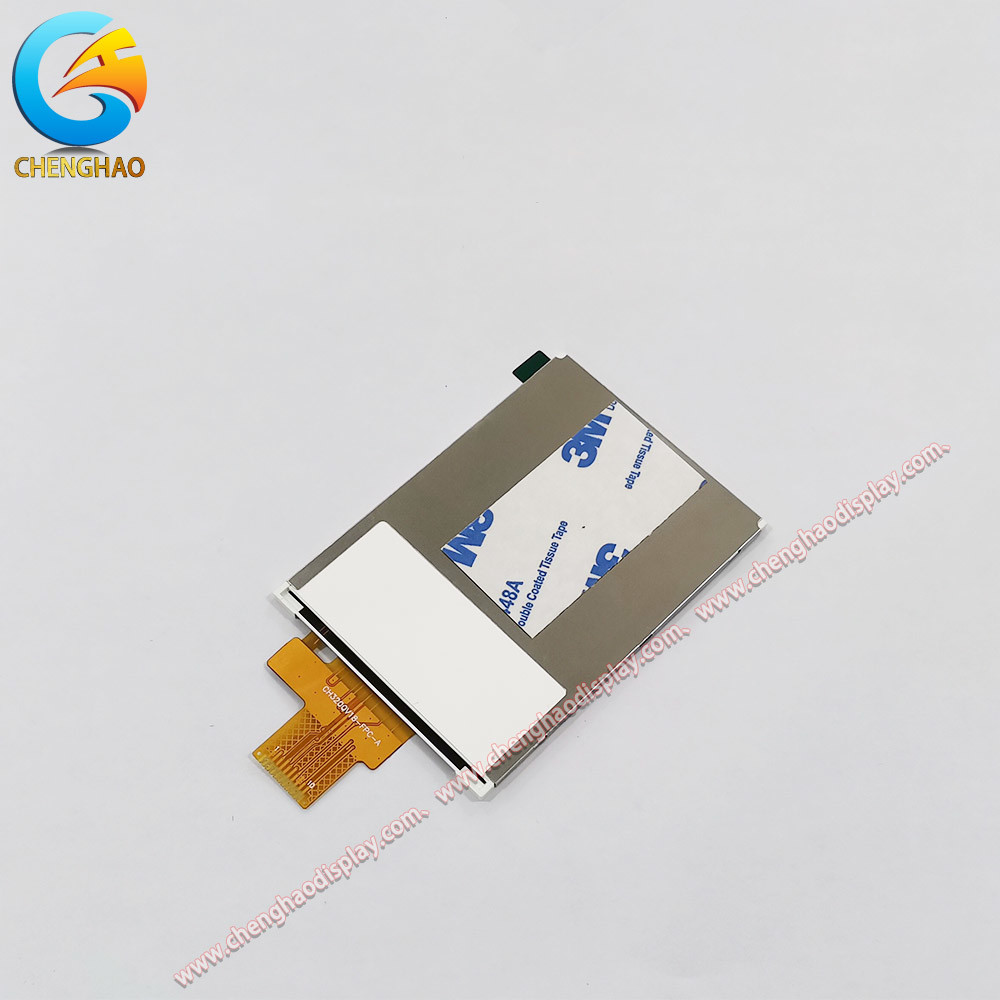

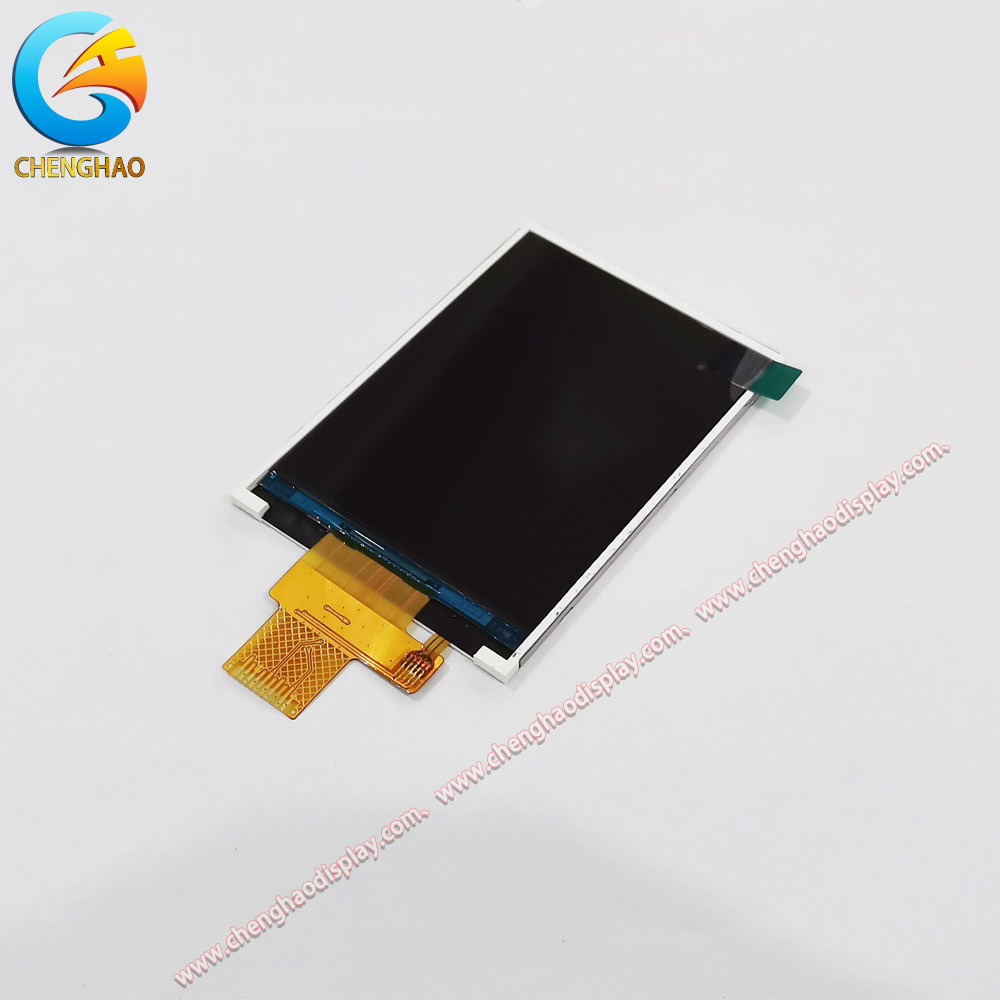

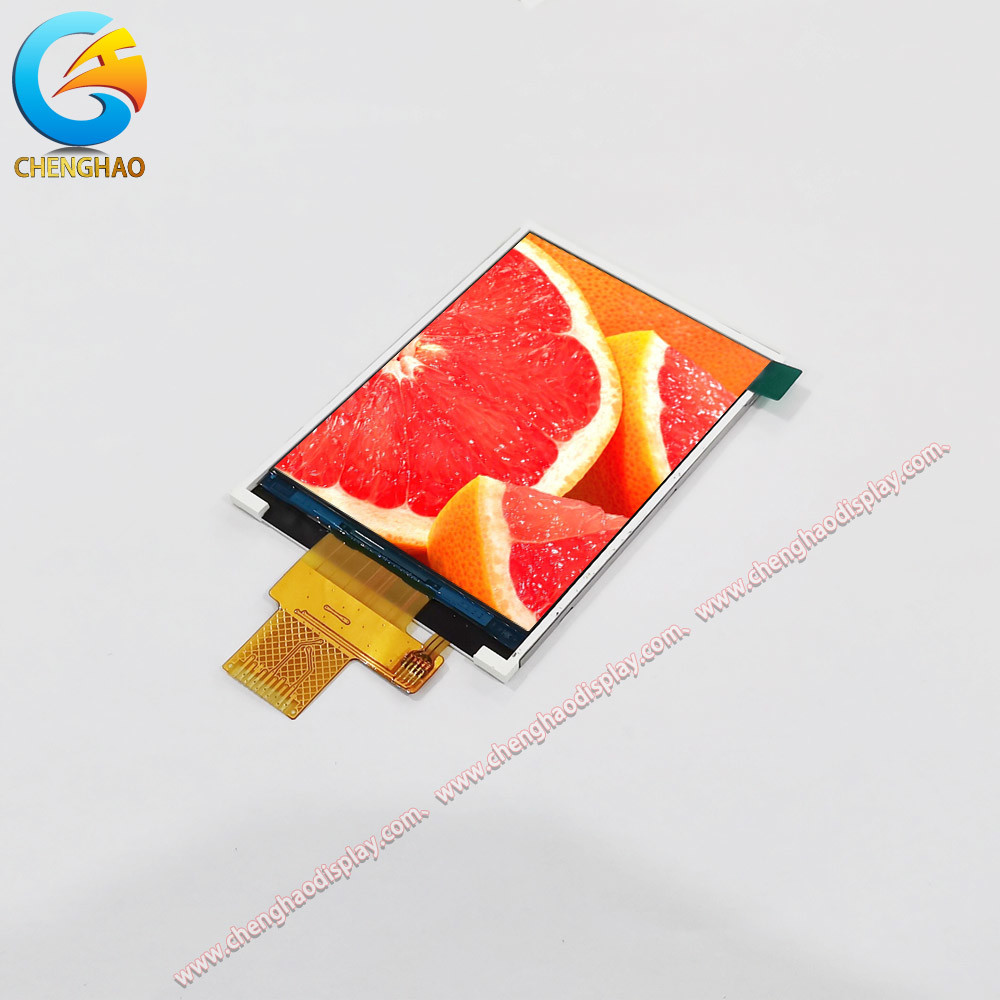

Free Viewing Angle 240*320 Qvga Pixels 3.2 inch 10pin Tft Lcd Display Screen
Specification of 3.2 inch tft lcd
| Module No | CH320QV18A |
| Resolution | 240*3(RGB0*320 dots |
| Viewing Directon | 80/80/80/80 |
| Operating Temp | -20 ~ +70 |
| Storage Temp | -30 ~ +80 |
| Color | 262K/65K |
| Contrast | 800:1 |
| Module Size | 55.04*77.7*2.45 mm |
Description of 3.2 inch lcd screen
The CH320QV18A is a 3.2-inch TFT LCD screen with a resolution of 240*320 pixels. It has a wide viewing angle of 80/80/80/80 and is suitable for use in 3D printers. The module is also RoHS, CE, and FCC certified and comes with a 12-month warranty.
Here are some more details about the CH320QV18A:
Operating temperature: -20 ~ +70 ℃
Storage temperature: -30 ~ +80 ℃
Life Time: 30000 hours
If you are looking for a high-quality TFT LCD screen for your 3D printer, the CH320QV18A is a great option. It is reliable, durable, and comes with a variety of features that make it perfect for use in this application.
Quick detail of 3.2 inch lcd display
Module Name:3.2 inch tft lcd
Lcd Type:3.2” IPS TFT
Display Mode:Transmissive/IPS/Normally Black
Number of dots: 240*320
Viewing Direction: 80/80/80/80
lcd Driver IC:ST7789V
Operating Temp:-20~+70
Storage Temp:-30~ +80
Module Size:55.04*77.7*2.45 mm
Viewing Area:49.4*65.6 mm
Active Area:48.6*64.8 mm
Color:65K/262K
Contrast: 800:1
FPC Pin Numbers : 10pin
