Iso 9001 Certified 2 Inch Ips Lcd Display With Driver Ic St7789 For Instrumentation

Product Description:

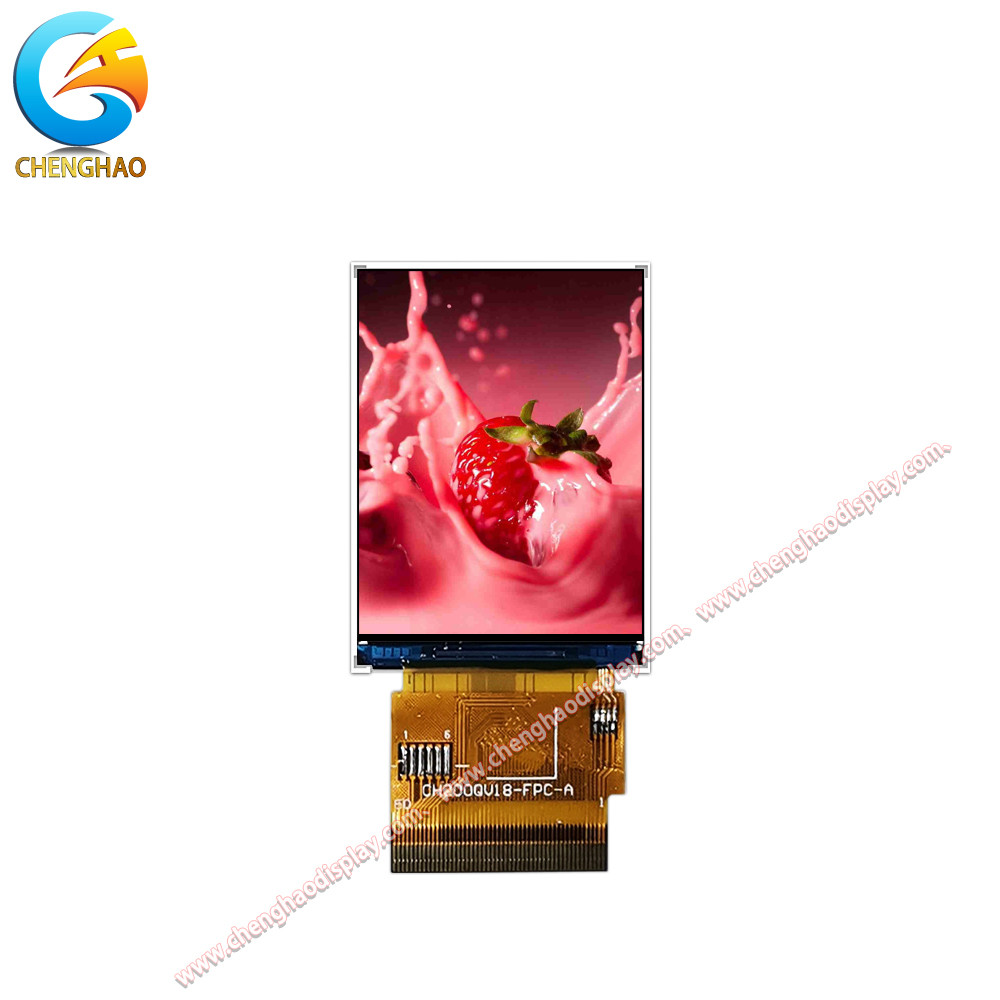

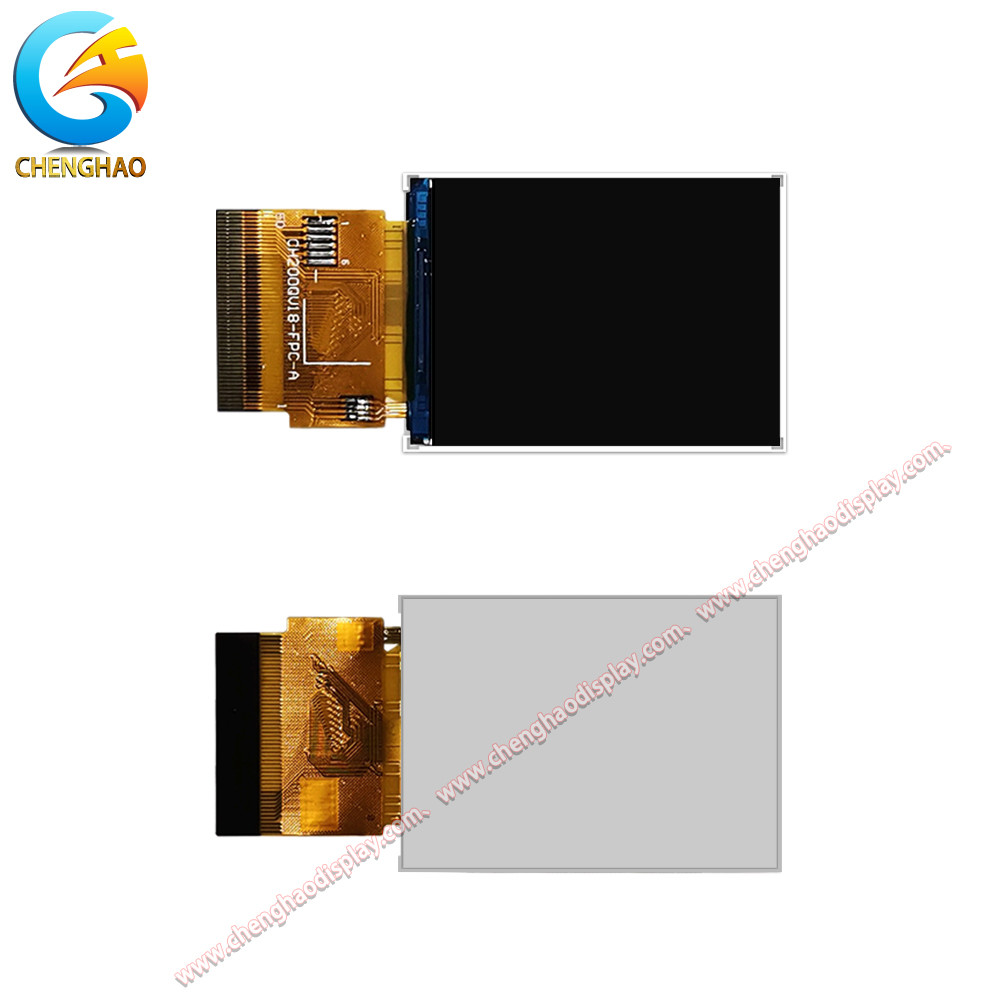

CH200QV18B IPS LCD Display is an advanced 2 inch LCD display with 240x320 resolution. It features a 31.2(W)x41.4(H) Mm viewing area and a 16 Ms response time, making it perfect for a wide range of applications. The display also has a ST7789 TFT driver with an SPI interface, enabling it to work with a variety of different devices. Its long life time of 50000 hours and operating temperature of -20 ~ +70 ℃ make it an ideal choice for long-term applications. It is designed with reliability, durability and high performance in mind, making it a great option for any project that requires a quality display.

Features:

• Product Name: 2 inch IPS LCD Display
• Operating Temperature: -20 ~ +70
• Viewing Area: 31.2(W)x41.4(H) mm
• Color Saturation: 262K & 65K
• Back Light: 5 White LED In Parallel
• Active Area: 30.6(W)×40.8(H) Mm
• IPS TFT LCD Display
• IPS TFT Screen

Technical Parameters:

Applications:

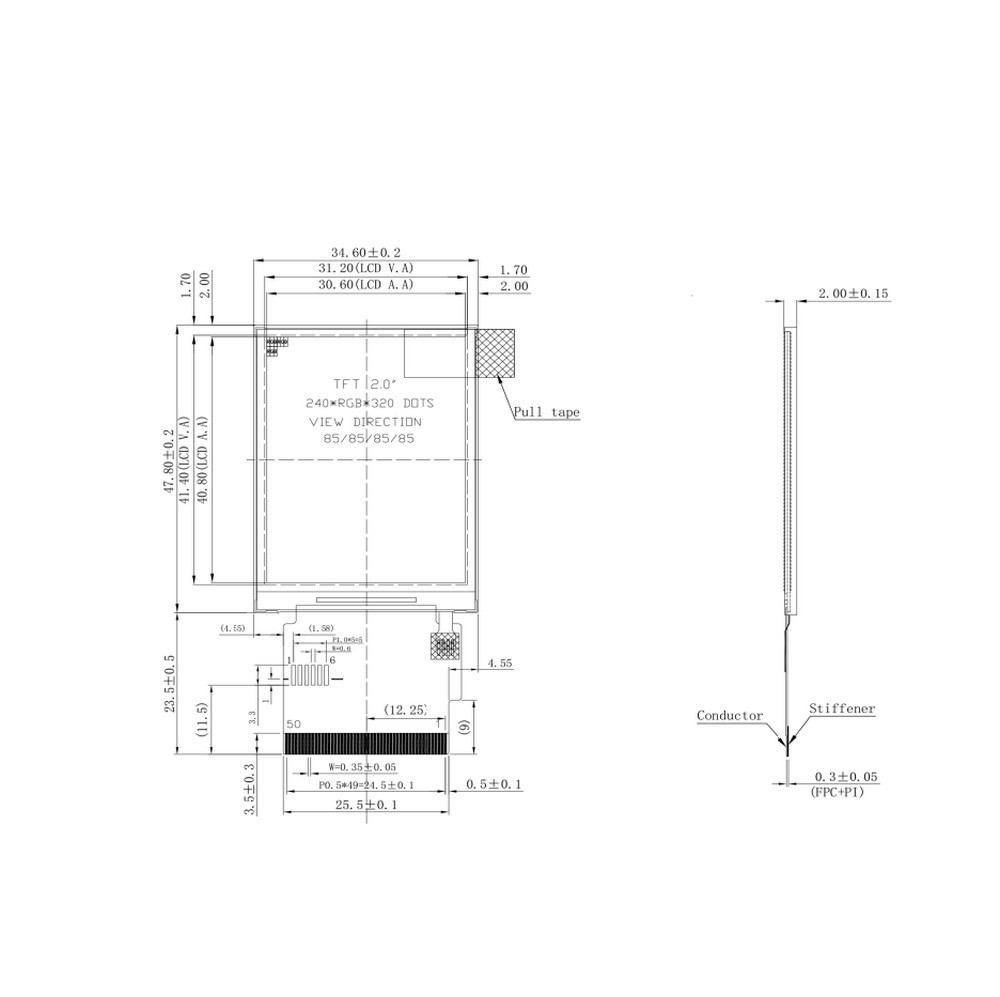

Chenghao Optoelectronic's IPS LCD display has a model number of CH200QV18B and has CE and RoHS certifications. It is a small size LCD screen with a size of 2.0 Inch, module outline size of 34.6(W)×47.8(H)×2.0(T) Mm, and 262K & 65K color saturation. The display also features a life time of 50000 H and a high brightness of 1000cd/m2. The product is safe and secure during delivery, as it is packed with tray + carton for small sizes, and foam slot + carton for bigger sizes. The packages can also be designed according to customers' requirements. The minimum order quantity is 1 Pcs and the supply ability is 300Kpcs/month, with a delivery time of 7-15 working days.

IPS LCD display is widely used in many modern applications. It is used in medical equipment such as monitors, mobile phones, tablets, digital cameras, and portable media players. It is also used in industrial control equipment, automotive displays, POS systems, smart watches, and home appliances. Its high brightness and life time make it a popular choice for outdoor applications such as digital signage, outdoor kiosks, marine displays, and outdoor advertising boards. Its small size makes it ideal for small electronic devices such as wearable monitors and hearing aids.

Support and Services:

We offer technical support and service for the IPS LCD Display. Our service includes:

• 24/7 customer support
• Live chat for technical support
• Phone and email support
• Guaranteed response times
• Software updates and patches
• Hardware replacement and repair

Packing and Shipping:

• Inner packaging: Bubble wrap and foam pads are used to protect the product from shocks during transportation.
• Outer packaging: Carton box is used for outer packaging. The box will be marked with the product name, model number, and serial number.
• Shipping: The product will be shipped by air using an international courier. The tracking number will be provided to customer upon shipment.

FAQ:

Q1: What is the brand name of this IPS LCD Display?
A1: The brand name of this IPS LCD Display is Chenghao Optoelectronic. Q2: What is the model number of this IPS LCD Display?
A2: The model number of this IPS LCD Display is CH200QV18B. Q3: Where is this IPS LCD Display manufactured?
A3: This IPS LCD Display is manufactured in Shenzhen, China. Q4: What certifications does this IPS LCD Display have?
A4: This IPS LCD Display has CE and RoHS certifications. Q5: What is the minimum order quantity of this IPS LCD Display?
A5: The minimum order quantity of this IPS LCD Display is 1 Pcs.
