320x240 3.5" TN Ips Tft Screen 1000nits High Backlight Lcd Panel
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements |
|---|---|---|---|
| Delivery Time : | 7-15 working days | Supply Ability : | 300Kpcs/month |
| Place of Origin: | China,Shenzhen | Brand Name: | Chenghao Optoelectronic |
|---|---|---|---|
| Certification: | CE、RoHS | Model Number: | CH200QV18B |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Brightness: | 1000 Cd/m2 | Color Saturation: | 262K & 65K |
|---|---|---|---|
| Connector: | 50 Pins FPC | Driver IC: | ST7789 |
| Viewing Area: | 31.2(W)x41.4(H) Mm | Display Type: | IPS TFT LCD |
| Resolution: | 240*320 | Display Mode: | RGB Vertical Stripe |
| Viewing Angle: | 85/85/85/85 | ||
| Highlight: | st7789 ips lcd display,high brightness ips lcd display,st7789 display lcd ips |
||
Product Description
The ST7789 IPS LCD Display is a small but powerful LCD display that offers a wide range of features and performance capabilities. With its operating temperature of -20 to +70 degrees Celsius, it can be used in a variety of applications. This display features a Transmissive/normally black display mode, a 4:3 aspect ratio and a contrast ratio of 800:1. Furthermore, its viewing angle of 85/85/85/85 degrees allows for a clear, vibrant image even from a wide range of angles. The ST7789 LCD display is an ideal choice for a range of applications, from small embedded systems and portable devices to larger displays for industrial and commercial use.
| Display Type | IPS TFT LCD |
|---|---|
| Brightness | 1000 Cd/m2 |
| Operating Temperature | -20 ~ +70 |
| Size | 2.0 Inch |
| Display mode | RGB Vertical Stripe |
| Connector | 50 Pins FPC |
| Active area | 30.6(W)×40.8(H) Mm |
| Response Time | 16 Ms |

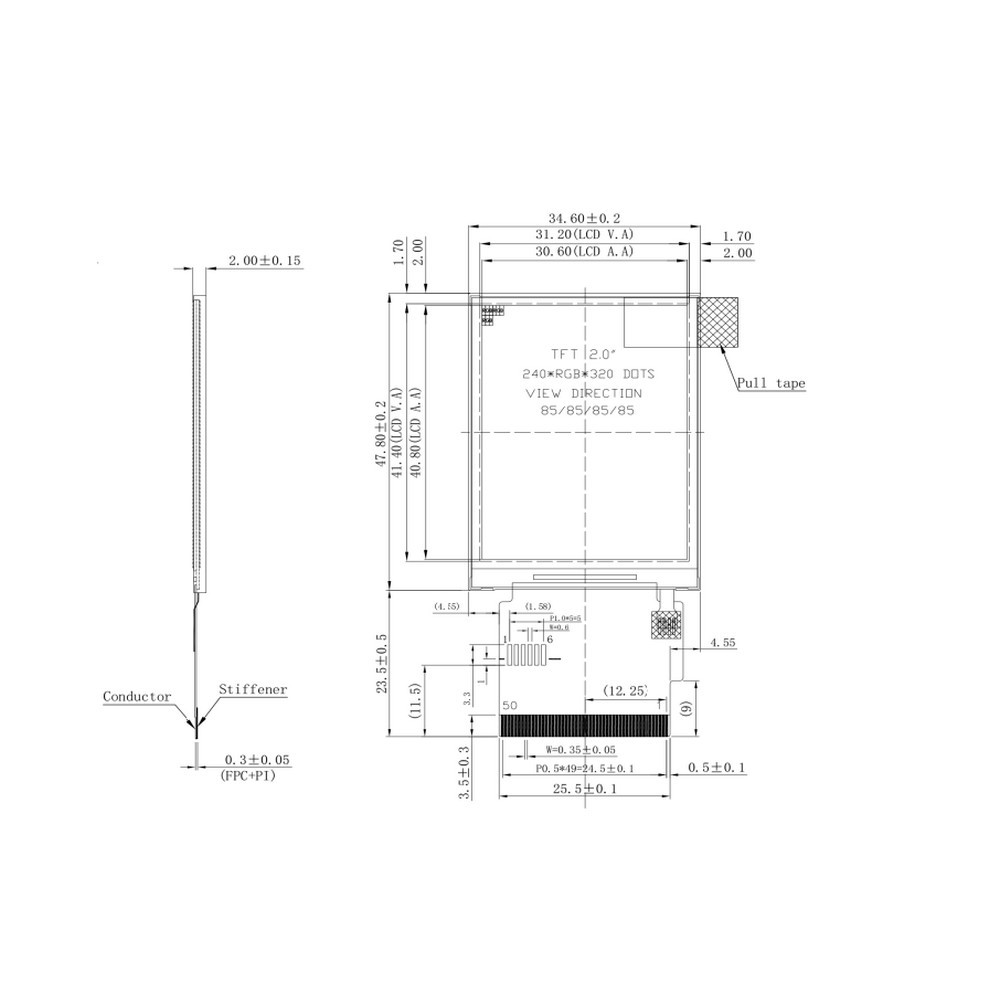

| Module size | 34.6(W)×47.8(H)×2.0(T) Mm |
| Interface | SPI+RGB / MCU / RGB |
Chenghao Optoelectronic is a leading supplier of IPS LCD Displays. Its CH200QV18B model is designed to be highly reliable and efficient, featuring a 240x320 resolution, 85/85/85/85 viewing angle, -20 ~ +70 operating temperature, 34.6(W)×47.8(H)×2.0(T) Mm module size, SPI+RGB/MCU/RGB interface and ips/transmissive/normally black display mode. It has been certified with CE and RoHS, and it offers an impressive minimum order quantity of 1 pc. Quality packaging is assured, with small sizes of products being packed in tray + carton, and bigger sizes foam slot + carton. Delivery time is 7-15 working days, and the company has a monthly supply ability of 300Kpcs.
The CH200QV18B IPS LCD display is ideal for a wide variety of applications, including medical and industrial equipment, consumer electronics, automotive, security and surveillance, and POS/ATM systems. Its superior image quality and advanced features makes it a perfect fit for all types of projects requiring a reliable and robust display.
IPS LCD Display provides technical support and services in the following areas:
Our IPS LCD Displays are securely packaged with protective foam or bubble wrap inside a sturdy cardboard box or plastic container to ensure safe delivery. The box is then sealed with tape for additional protection. For international orders, the package is marked with the relevant customs information.
We use a selection of shipping services depending on the destination. We ship our products via USPS, DHL, FedEx, or UPS. We offer express delivery services for urgent orders.
Q1: What is the Brand Name of this product?
A1: The Brand Name of this product is Chenghao Optoelectronic.
Q2: What is the Model Number of this product?
A2: The Model Number of this product is CH200QV18B.
Q3: Where is this product made?
A3: This product is made in Shenzhen, China.
Q4: Does this product have any certifications?
A4: Yes, this product has CE and RoHS certifications.
Q5: How is the packaging of this product?
A5: All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. We also design packages according to customers' requirements.
