Lcd Factory 3.5 Inch Custom Small Tft Lcd Display With Capacitive Touch
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements |
|---|---|---|---|
| Delivery Time : | 3~7 Days | Payment Terms : | T/T, AliPay, PayPal |
| Supply Ability : | 50000000 pcs/month |
| Place of Origin: | China | Brand Name: | chenghao optoelectronic |
|---|---|---|---|
| Certification: | CE, ISO9001, Rose, SGS | Model Number: | CH210QV03A |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Operating Temperature: | -20~+70℃ | Viewing Direction: | 80/80/80/80 |
|---|---|---|---|
| Backlight Color: | White LED | Lifetime: | 50,000 Hours |
| Connector: | 15 Pins FPC | Brightness: | 600cd/m2 |
| Contrast Ratio: | 800:1 | Display Mode: | IPS/Transmissive/Normally Black |
| Resolution: | 480*480 | Screen Size: | 2.1 Inch |
| Highlight: | sunlight readable round lcd panel,2.1 inch 480x480 round lcd panel,medical equipment round tft lcd display |
||
Product Description
Thin Film Transistor LCD Display, also known as Thin Film Transistor Monitor, is a type of LCD display which utilizes Thin Film Transistor technology. This Round Lcd Panel is designed to have a wide operating temperature range, with it being able to operate between -20 and 70℃. It has multiple display modes, including IPS, Transmissive and Normally Black, and a wide viewing direction of 80/80/80/80. This Thin Film Transistor LCD has a high contrast ratio of 800:1, and can display up to 262K and 65K colors.
| Parameters | Details |
|---|---|
| Display Type | Thin Film Transistor (TFT) LCD Display |
| Viewing Area | 53.88(w)x53.88(H) Mm |
| Outline Size | 56.18(w)x59.71(H)x2.3(T) Mm |
| Lifetime | 50,000 Hours |
| Storage Temperature | -30℃~80℃ |
| Display Mode | IPS/Transmissive/Normally Black |
| Viewing Direction | 80/80/80/80 |
| Brightness | 600cd/m2 |
| Resolution | 480x480 |
| Operating Temperature | -20~+70℃ |
| Display Area Size | 2.1 Inch |

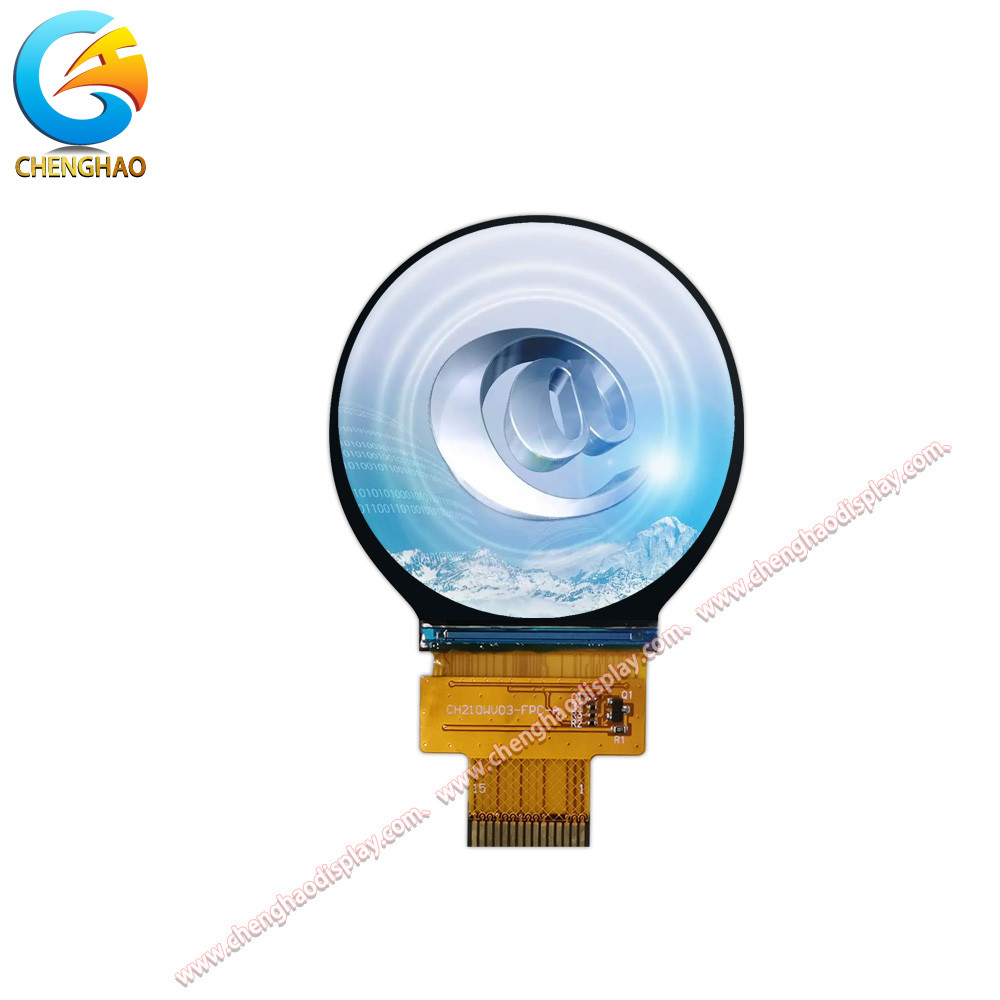

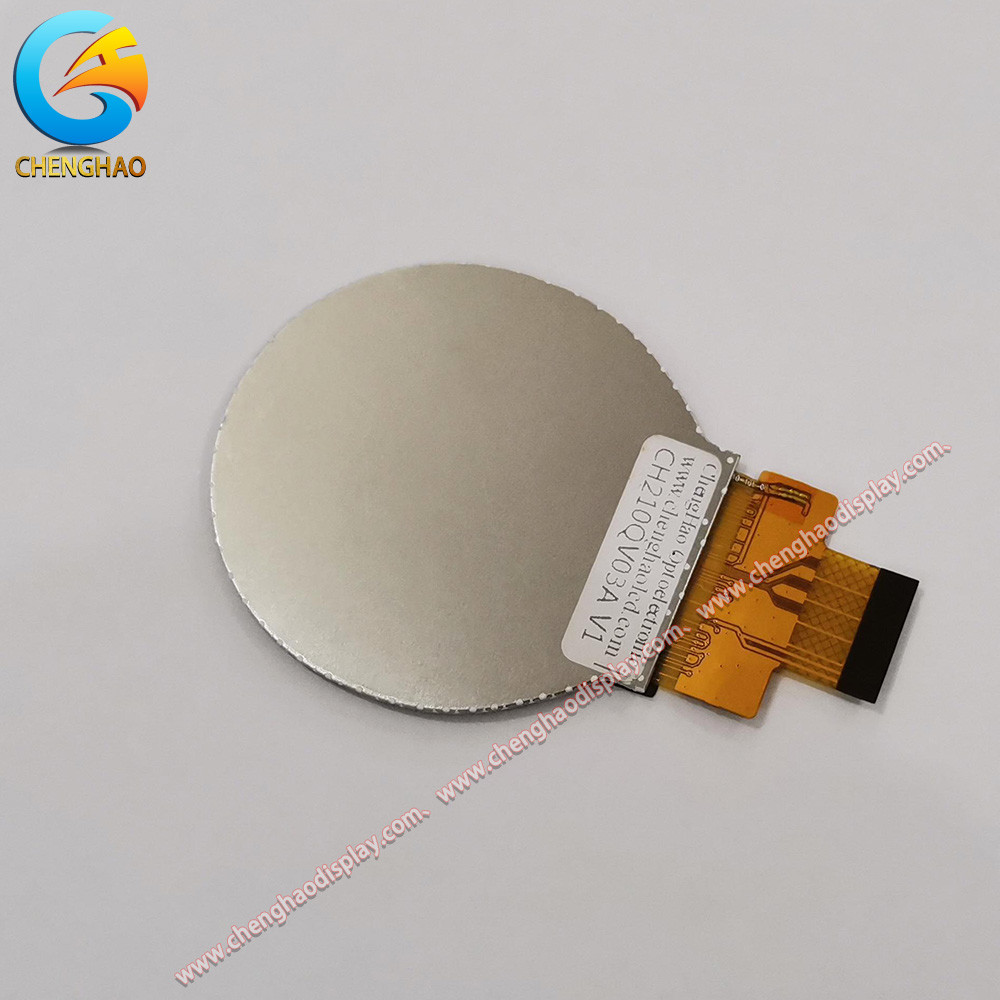

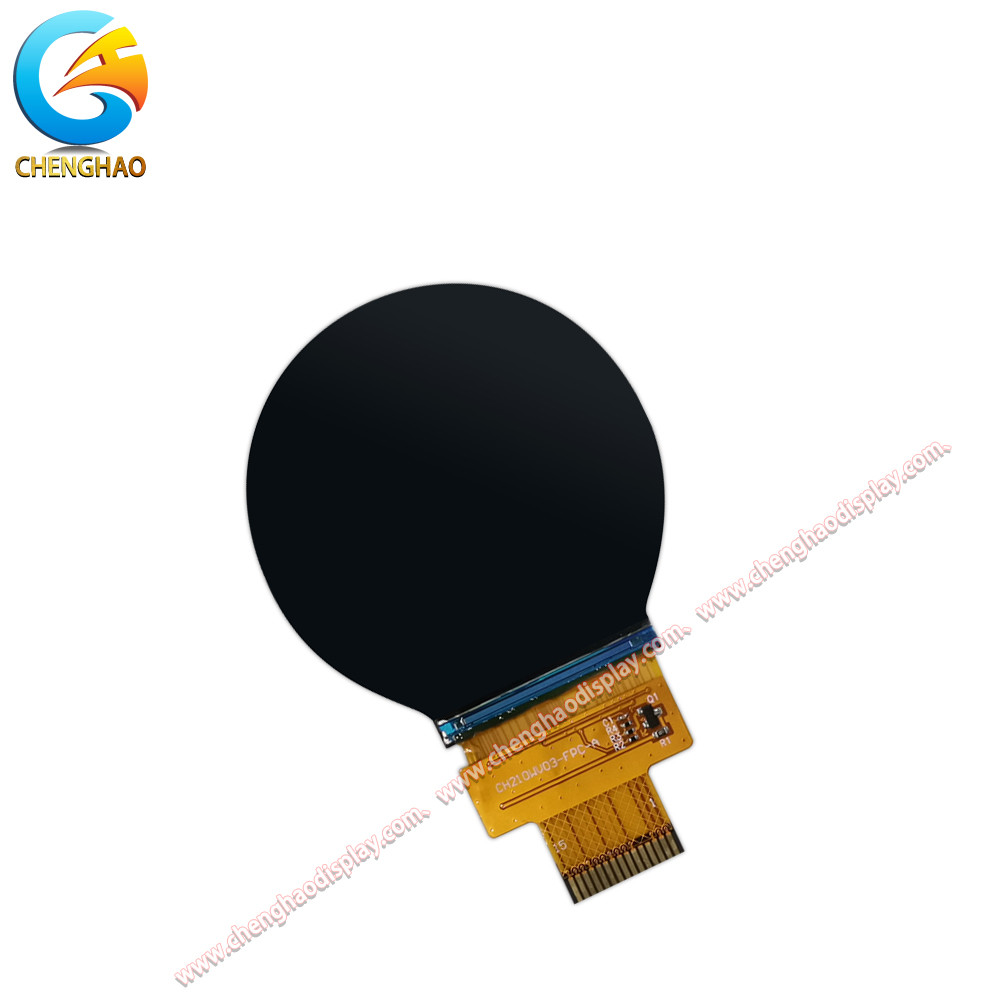

The Round Lcd Panel (Model Number: CH210QV03A) manufactured by Chenghao Optoelectronic is a high-quality liquid crystal display monitor featuring an active area of 53.28(w)x53.28(H) mm, a viewing angle of 80/80/80/80, a response time of 16 ms, and a lifetime of 50,000 hours. It has been certified by CE, ISO9001, Rose, and SGS. It is capable of operating in a wide range of temperatures from -30℃~80℃. The minimum order quantity is 1 piece and the supply ability is 50000000 pcs/month. The payment terms are T/T, AliPay, and PayPal and the delivery time is 3~7 days.
The TFT LCD Display is widely used in various applications such as industrial, medical, military, consumer electronics, and automotive. It can be used for digital signage, point-of-sale systems, video walls, gaming consoles, surveillance systems, and other embedded systems. It offers superior performance with its ultra-high resolution, high contrast ratio, and wide viewing angle. It is also highly reliable and durable due to its advanced thin film transistor technology. It is packaged safely in either tray plus carton for small sizes or foam slot plus carton for bigger sizes, and also custom packages can be designed according to customers’ requirements.
Our TFT LCD Display product provides full technical support and service for customers. We have a professional and experienced technical team, which can provide customers with timely and comprehensive services and solutions. Our technical support and service includes the following:
Packaging and Shipping for TFT LCD Display
Packaging:
The TFT LCD Display is packaged in a protective carton box with foam insert to prevent damage during transportation.
The carton box is labeled with product information and shipping details such as product name, model number, quantity, and destination address.
Shipping:
The TFT LCD Display is shipped by air or by sea depending on the customer's needs. All products are tracked and monitored during the shipping process to ensure timely delivery.
