Home ProductsLCD Display Module10.1inch Size Color Screen Tft Lcd Module 1024x600 Pixels Lcm

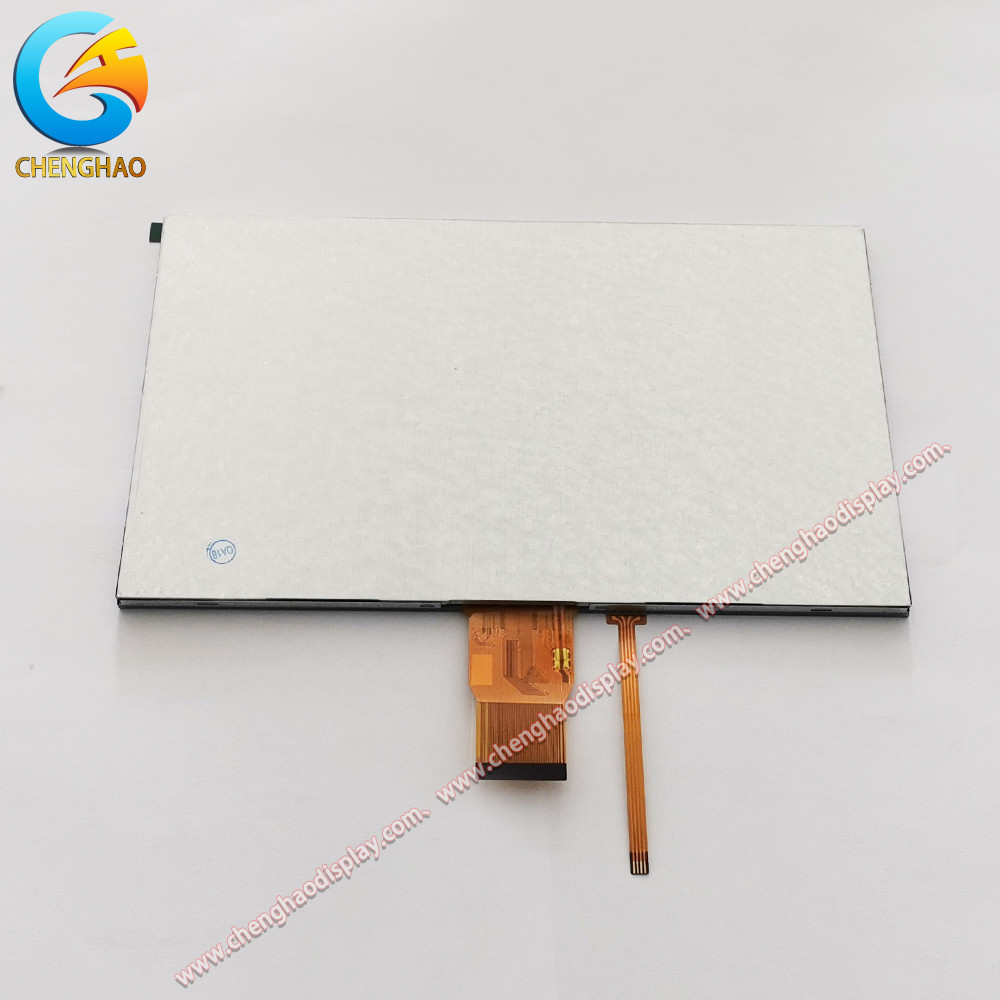

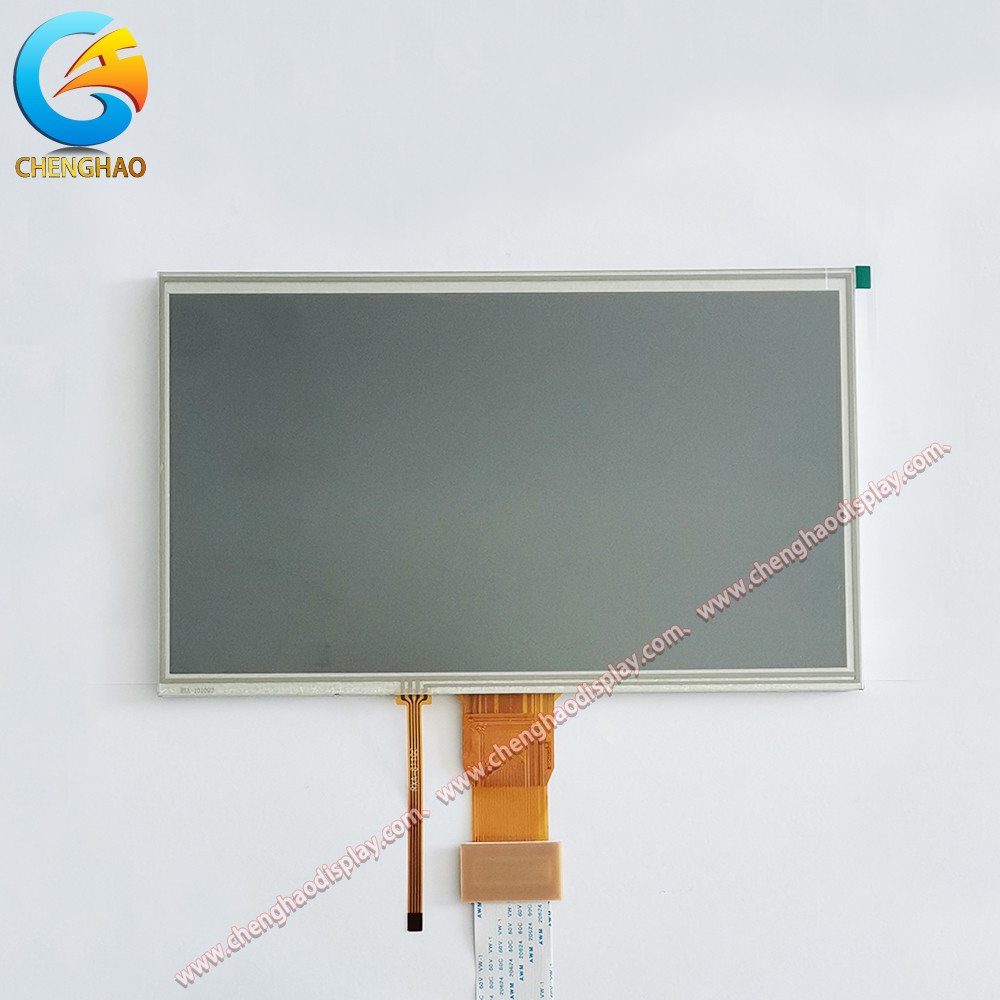

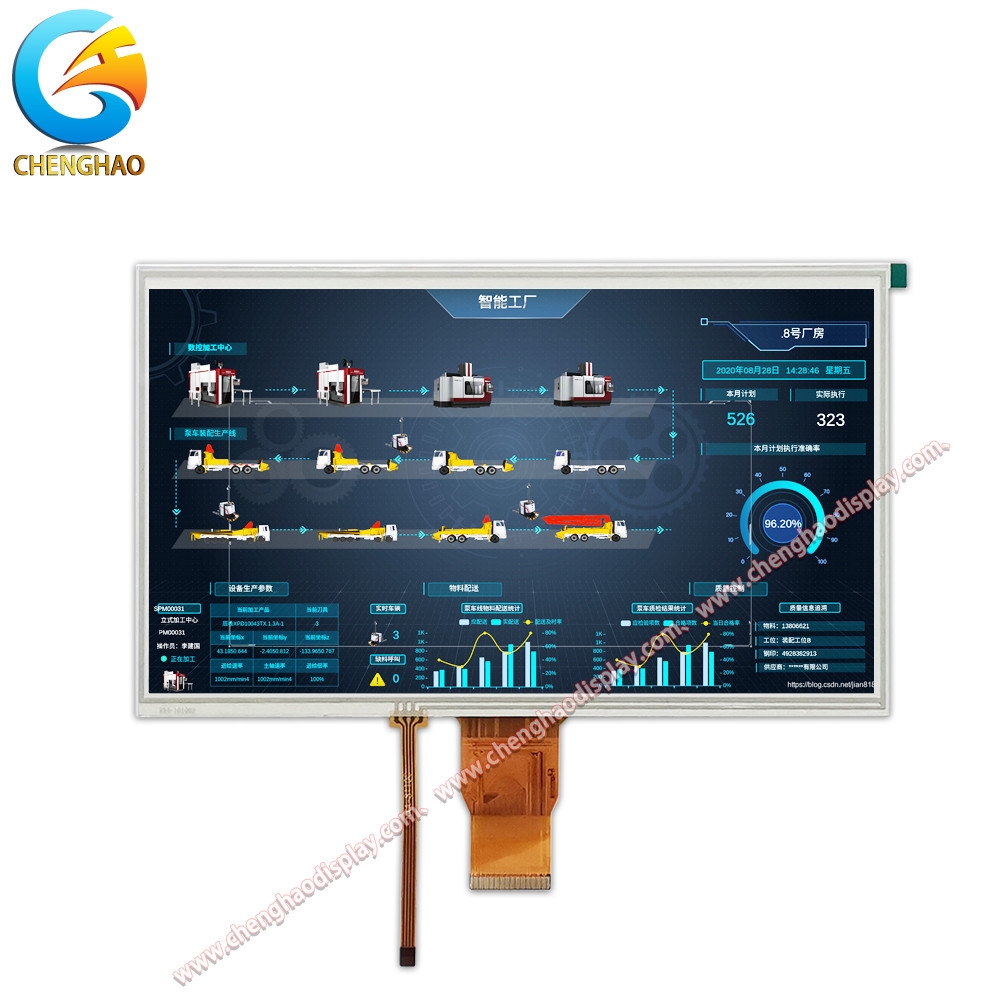

10.1inch Size Color Screen Tft Lcd Module 1024x600 Pixels Lcm
10.1inch Size Color Screen Tft Lcd Module 1024x600 Pixels Lcm
10.1inch Size Color Screen Tft Lcd Module 1024x600 Pixels Lcm 10.1inch Size Color Screen Tft Lcd Module 1024x600 Pixels Lcm 10.1inch Size Color Screen Tft Lcd Module 1024x600 Pixels Lcm 10.1inch Size Color Screen Tft Lcd Module 1024x600 Pixels Lcm
Contact Now

10.1inch Size Color Screen Tft Lcd Module 1024x600 Pixels Lcm

Minimum Order Quantity : 100 pcs Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Delivery Time : 3~7 Days Payment Terms : TT or Others
Supply Ability : 50000000 pcs/month
Place of Origin: China，Shenzhen Brand Name: Chenghao Optoelectronic
Certification: CE 、RoHS、FCC Model Number: CH101WS03A-T
Document: Product Brochure PDF

Detail Information
Module Type: 10.1”TFT + RTP + HDMI Board Resolution: 1024x600 Pixels
Storage Temperature: -30 ℃ ~ +80℃ Display Viewing Angle: 80/80/80/80
Display Size: 10.1 Inch Display Operating Temperature: -20 ℃ ~ +70℃
Display Brightness: 1000 Cd/m2 Active Area: 222.72*125.28 Mm
Highlight:

10.1inch size tft lcd module

,

1024x600 pixels tft lcd module

,

1024x600 pixels tft module

Product Description

Product Description:

The LCD display module of TFT display manufacturer adopts TFT LCD and touch panel design with USB interface. It is equipped with an HDMI interface driver board and supports free viewing angles. It also features a USB touch panel interface that supports touch feedback and a wide temperature environment. This LCD display module is an excellent choice for industrial applications.



Features:

  • Product Name: LCD Display Module
  • Operating System: Windows,Linux,MAC OS,etc
  • Display Brightness: 1000 Cd/m2
  • Application: Industrial Equipment
  • Touch Panel Interface: USB
  • Display Resolution: 1024*600 Dots
  • IPS Display Screen
  • LCD Module
  • Color Display


Technical Parameters:

Features Display Life Span
Support For Touch Feedback; Equipped With HDMI Interface Driver Board; Support For A Free Angle; Supports A Wide Temperature Environment 50000H
LCM Outline Display Operating Temp
235*143*6.29 Mm -20 ~ +70℃
Active Area Color
222.72*125.28 Mm 16.7M
Storage Temperature Working Power Supply
-30 ℃ ~ +80℃ DC12V/2A
Display Viewing Angle Display Size
80/80/80/80

10.1 Inch

PS:1280x480 LCD, LCD Display Module, TFT LCM


Applications:

Chenghao Optoelectronics CH101WS03A-T 10.1 "TFT LCD module is a display module with a resolution of 1024x600, a screen of 10.1 inches and a contrast of 800:1. It has passed CE, RoHS and FCC certification, and has no minimum order quantity. It is packaged in a safe way, with small trays and cartons, large foam tanks and cartons. It can also be customized to meet customer requirements. It is equipped with TFT LCD panel interface and HDMI board, and the lcm shape is 235 * 143 * 6.29mm. Storage temperature The temperature range is -30 ℃~+80 ℃, and the supply capacity is 50000000 pieces/month. Delivery time is 3-7 days, payment method is TT or other methods.



10.1inch Size Color Screen Tft Lcd Module 1024x600 Pixels Lcm 0





Support and Services:

LCD display module technical support and services
We provide technical support and services for our LCD display module products. Our expert team can answer your questions and collaborate with you to solve any technical issues you may encounter.
We provide:
  • 24/7 telephone support
  • Real time chat support
  • Email Support
  • Remote online technical services
  • 12 month warranty





Packing and Shipping:

1. All of our shipping boxes meet the export hardness standards
2. All of our boxes will be padded with foam inside to prevent screen damage
3. Our product packaging adopts a large box with small boxes
4. The weight of each box does not exceed 3.5 kilograms, and the dimensions may vary depending on the standard. We will use pallets or wooden frames for the goods
The above packaging methods are all to prevent damage to the display module during transportation, and we can also package the goods according to the customer's wishes.


FAQ:

Q: What is the brand of this LCD Display Module?
A: The brand name of this LCD Display Module is Chenghao Optoelectronic.
Q: What is the model number of this LCD Display Module?
A: The model number of this LCD Display Module is CH101WS03A-T.
Q: Where is this LCD Display Module made?
A: This LCD Display Module is made in China, Shenzhen.
Q: What certifications does this LCD Display Module have?
A: This LCD Display Module has CE, RoHS, and FCC certifications.
Q: What is the MOQ for this LCD Display Module?
A: There is no MOQ for this LCD Display Module.

10.1inch Size Color Screen Tft Lcd Module 1024x600 Pixels Lcm 1
