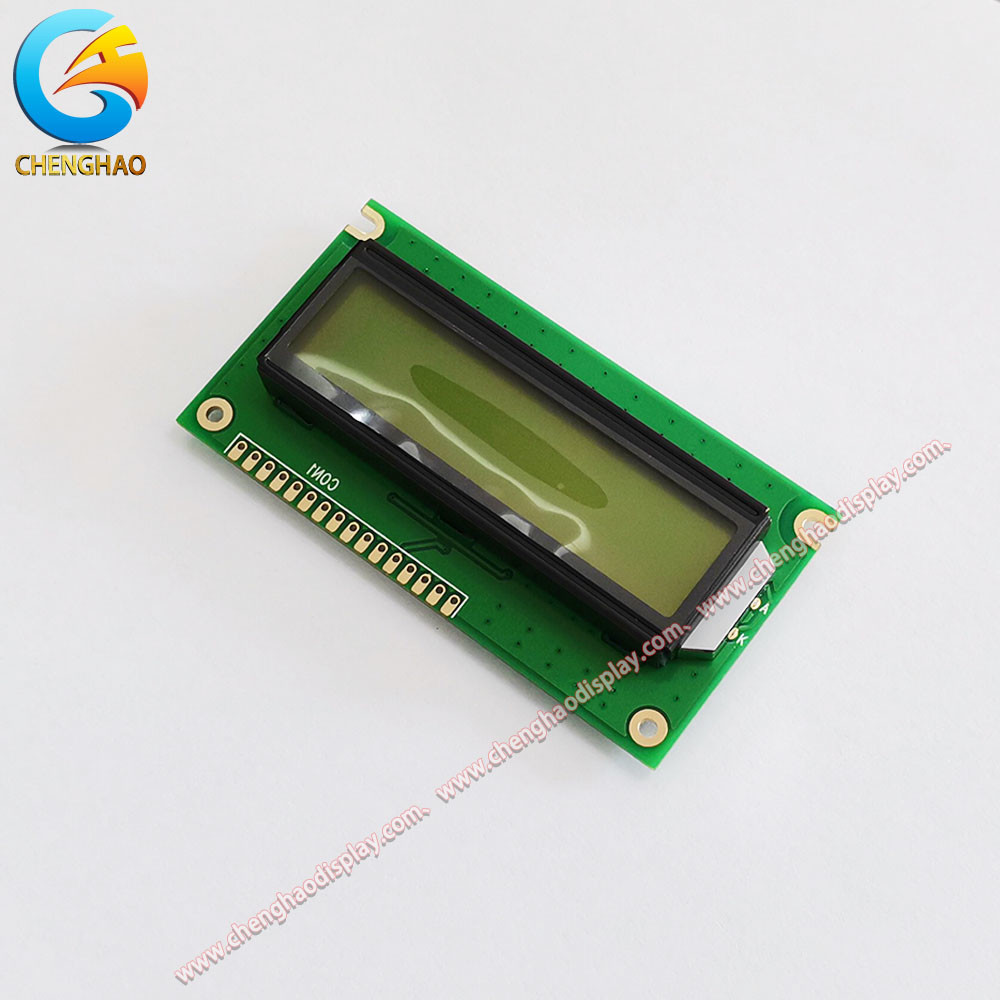

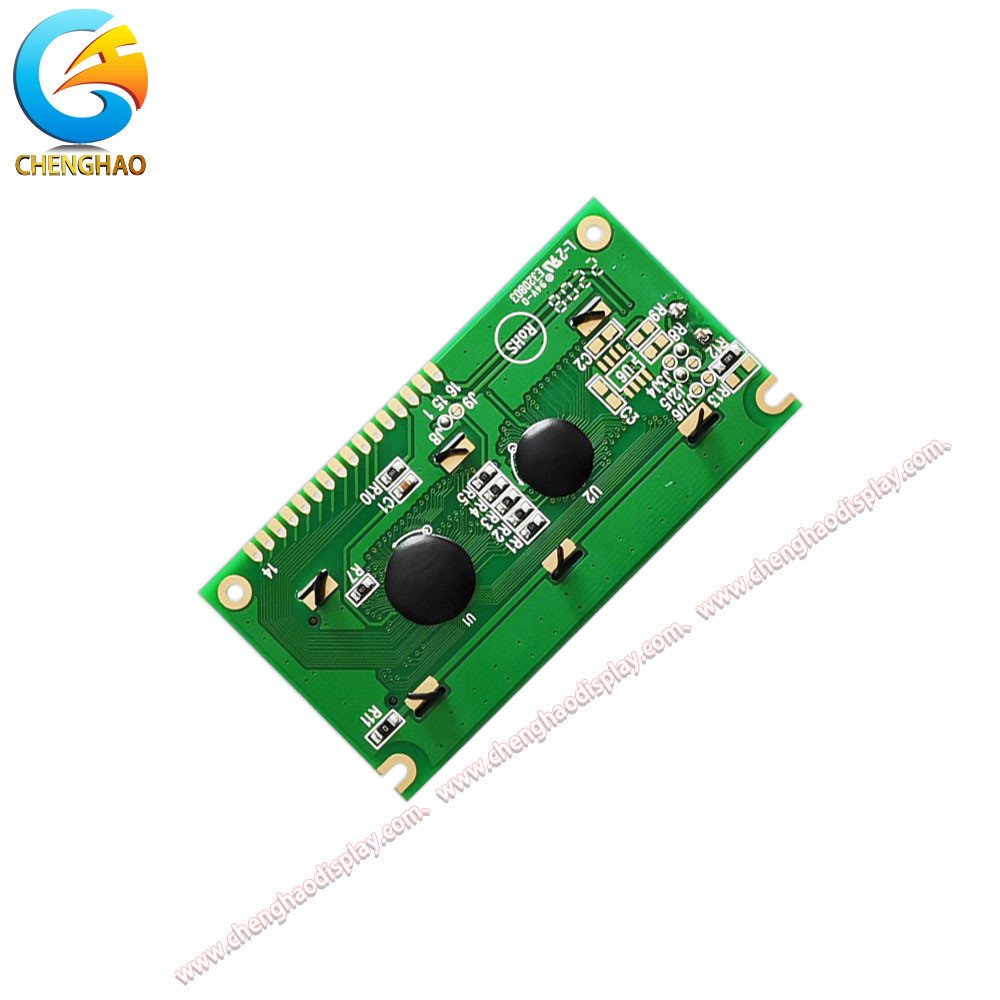

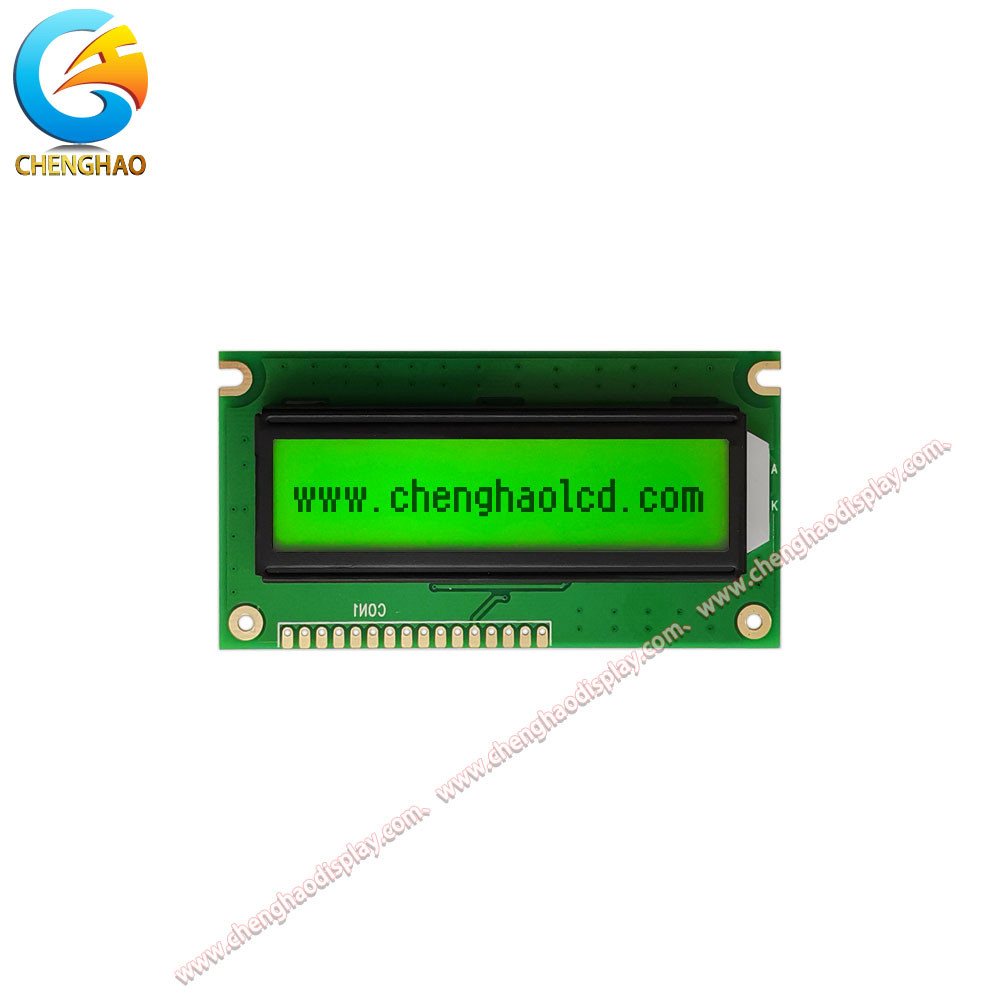

16x2 Custom Lcd Module 1602 Character Serial Blue Backlight
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements. |
|---|---|---|---|
| Delivery Time : | 3~5 working days | Payment Terms : | TT or negotiation |
| Supply Ability : | 5000K Pcs/Month |
| Place of Origin: | Shenzhen,China | Brand Name: | Chenghao Optoelectronic |
|---|---|---|---|
| Certification: | CE / RoHS / FCC | Model Number: | CH1602C01A |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Product Name: | Alphanumeric LCD Display | STORAGE TEMPERATURE: | -30 ~ 80 ℃ |
|---|---|---|---|
| DISPLAY BACKGROUNTND: | YELLOW-GREEN | DUTY: | 1/16DUTY |
| NUMBER OF CHARACTERS: | 16 Characters X 2 Lines | VIEW AREA: | 66(W)×16(H) Mm |
| EFFECTIVE V/AREA: | 56.2(W)×11.5(H) Mm | DISPLAY DOT: | BLUE-BLACK |
| OPERATING TEMPERATURE: | -20 ~70 ℃ | ||
| Highlight: | iic alphanumeric lcd display,green backlight alphanumeric lcd display,green backlight 16x2 alphanumeric lcd display |
||
Product Description
This product is an STN monochrome LCD monitor with a viewing angle of 6 o'clock. The display point is blue-black, and the viewing area is 66 (width) × 16 (height) mm. The character size is 0.55 (width) × 0.65 (height) mm, and the size outline is 84.0 × 44.0 × 12.5 mm. This monochrome LCD display is ideal for applications requiring a display that displays simple information. The monitor is highly reliable and has low power consumption, making it ideal for a variety of applications.#lcd 16x02
1. Display Specification
| ITEM | SPECIFICATION |
| DISPLAY TYPE | STN/YELLOW-GREEN/POSITIVE/TRANSFLECTIVE |
| COLOR | DISPLAY DOT: BLUE-BLACK |
| DISPLAY BACKGROUNTND: YELLOW-GREEN | |
| INPUT DATA | 68 SERIES |
| DUTY | 1/16DUTY |
| VIEW ANGLE | 6 O’CLOCK |
| CONTROLLER | SPLC780D1 OR EQUIVALENT |
| BEZEL | 0.6T |
| BACKLIGHT | LED (YELLOW-GREEN) |
| OPERATING TEMPERATURE | -20 ~70 ℃ |
| STORAGE TEMPERATURE | -30 ~ 80 ℃ |
2.Mechanical Specification
| ITEM | SPECIFICATION | UNIT |
| DIMENSIONAL OUTLINE | 84.0(W)×44.0(H)×12.5.0MAX.(T) | mm |
| VIEW AREA | 66(W)×16(H) | mm |
| EFFECTIVE V/AREA | 56.2(W)×11.5(H) | mm |
| NUMBER OF CHARACTERS | 16Characters×2Lines | --- |
| CHARACTER PITCH | 2.95(W)×5.55(H) | mm |
| CHARACTER SIZE | 0.55(W)×0.65(H) | mm |
Block Diagram
Terminal Functions
| PIN NO. | SYMBOL | LEVEL | FUNCTION |
| 1 | VSS | 0V | GND |
| 2 | VDD | +5.0V | Power Supply for logic |
| 3 | V0 | - | Operating voltage for LCD |
| 4 | RS | H/L | H: Data L: Instruction code |
| 5 | R/W | H/L | H: Read L: Write |
| 6 | E | H-L | Chip Enable signal |
| 7~14 | DB0~DB7 | H/L | Data bus line |
| 15 | LEDA | +5.0V | Power Supply for LED Back Light |
| 16 | LEDK | 0V |
Dimensional Outline
1. All of our shipping boxes meet the export hardness standards
2. All of our boxes will be padded with foam inside to prevent screen damage
3. Our product packaging adopts a large box with small boxes
4. The weight of each box does not exceed 3.5 kilograms, and the dimensions may vary depending on the standard. We will use pallets or wooden frames for the goods
The above packaging methods are all to prevent damage to the display module during transportation, and we can also package the goods according to the customer's wishes.
