10.1 Inch Capacitive Touch Screen Module 800*1280 Full HD TFT LCD Display
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements |
|---|---|---|---|
| Delivery Time : | 3~7 Days | Payment Terms : | TT or Others |
| Supply Ability : | 20000000 pcs/month |
| Place of Origin: | China，Shenzhen | Brand Name: | Chenghao Optoelectronic |
|---|---|---|---|
| Certification: | CE 、RoHS、FCC | Model Number: | CH800WX04A-CT |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Product Name: | LVDS TFT Liquid Crystal Capacitive Screen | Touch Panel Type: | Capacitive |
|---|---|---|---|
| Storage Temperature: | -40 ~ +90℃ | Warranty: | 12 Months |
| Color Saturation: | 16 M | Touch Glass Cover Hardness: | 6H |
| Viewing Area: | 177.24*99.96 Mm | Resolution: | 1280*720 Dots |
| Active Area: | 176.64*99.36 Mm | ||
| Highlight: | TFT Liquid Crystal Capacitive Screen,LVDS TFT LCD Capacitive Touchscreen,8 Inch TFT LCD Capacitive Touchscreen |
||
Product Description
TFT LCD Capacitive Touchscreen Overview

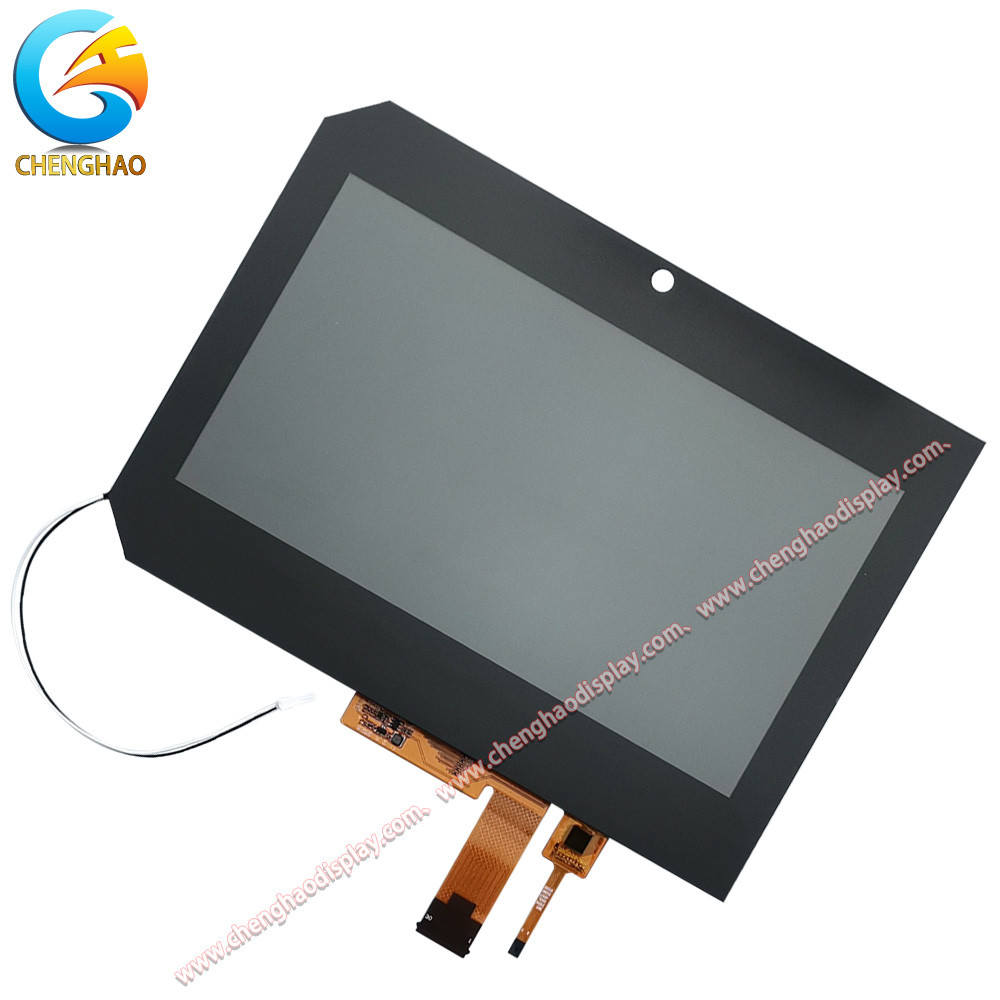

The TFT LCD Capacitive Touchscreen CH800WX04A-CT is a display module produced by Chenghao Optoelectronics. The module uses an 8-inch LCD display with 1280x720 resolution and is equipped with a capacitive touch screen. It uses IPS display technology, supports 85/85/85/85 free viewing angles, has 16M color saturation and 800 contrast ratio. The backlight of this module uses white LED, and the brightness can be adjusted according to customer needs, up to 1200 cd/m2.

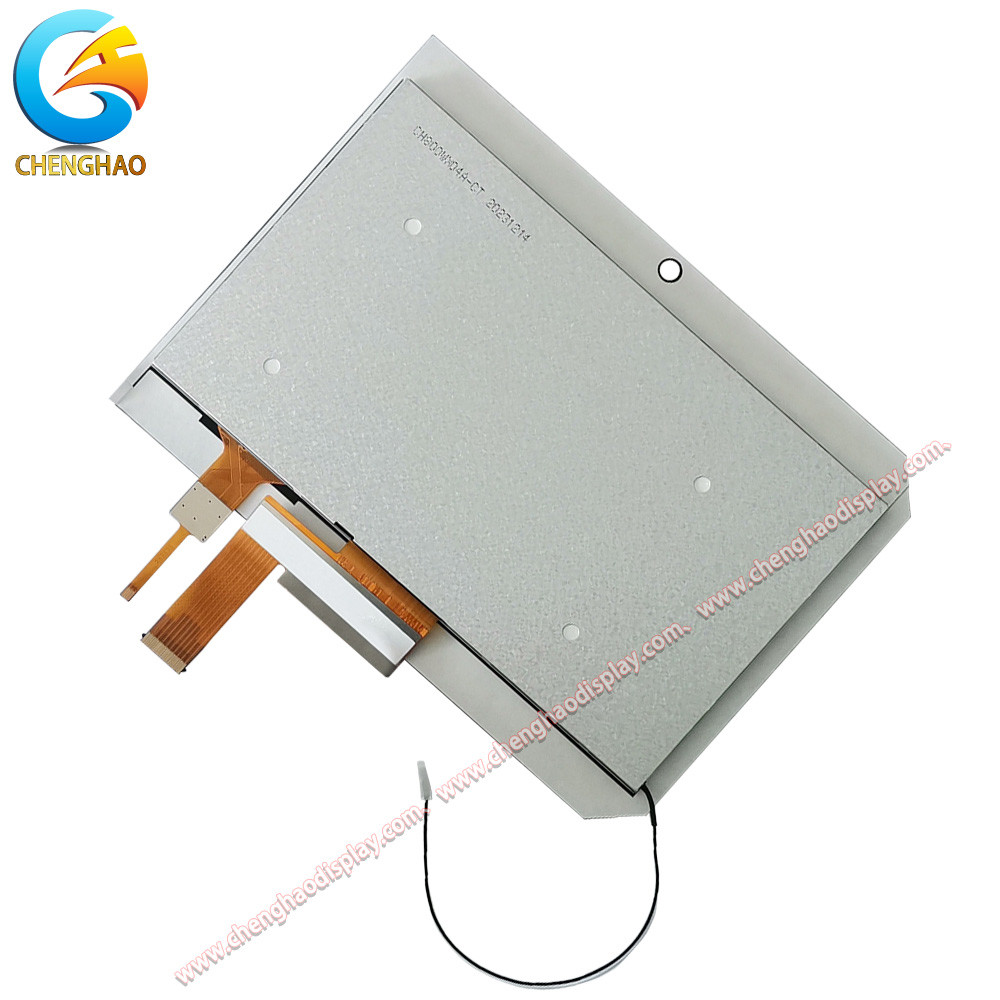

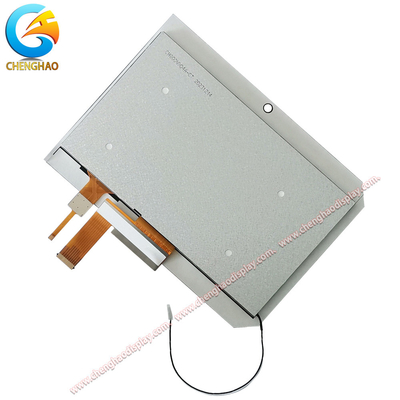

The appearance size of CH800WX04A-CT is 203.4*149.4*6.4 mm, the viewing area is 177.24*99.96 mm, and the effective area is 176.64*99.36 mm. The touch panel uses I2C interface, the thickness of the glass cover mirror is 0.7 mm, the hardness is 6H, and the light transmittance reaches more than 87%. The number of FPC pins of this module is 30.
High brightness backlight
The TFT LCD capacitive touch screen is equipped with 36 white LED backlights, which can provide bright and clear display even under outdoor sunlight, suitable for indoor and outdoor use.
8 inches Active Display Area

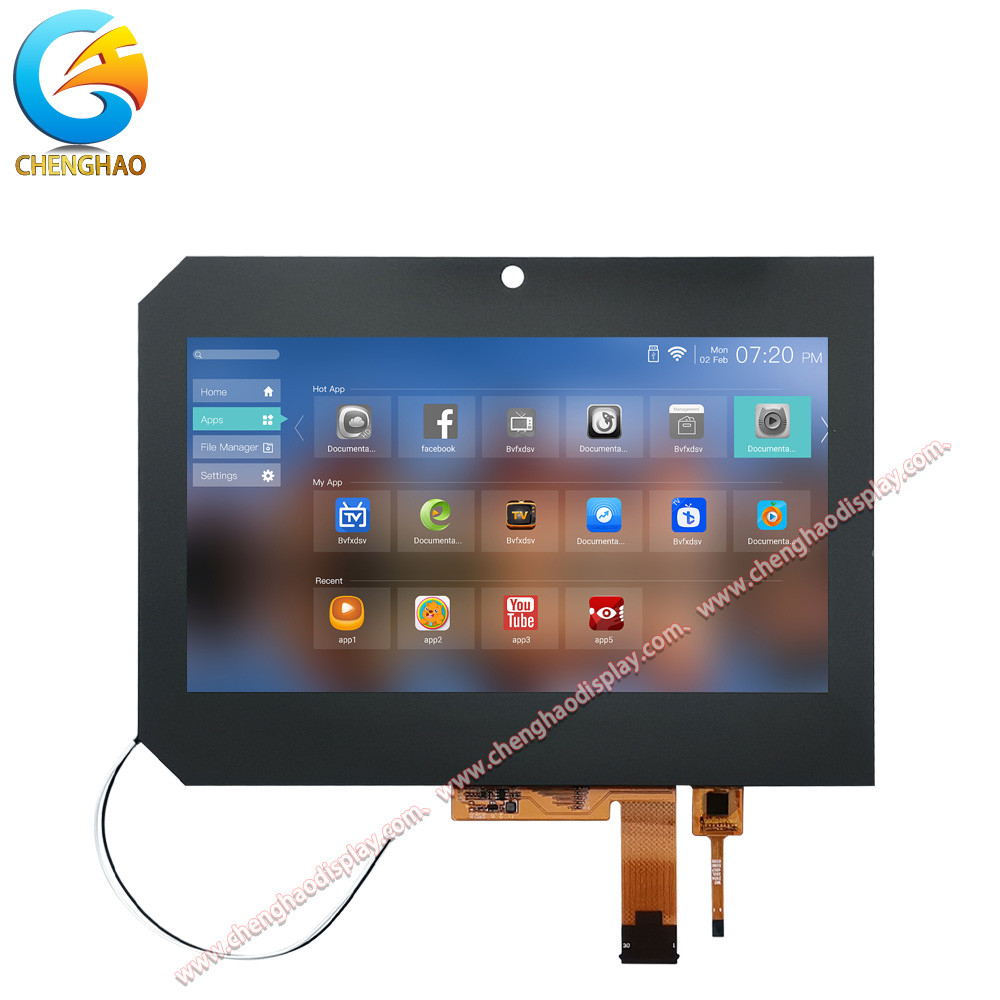

The TFT LCD Capacitive Touchscreen has an active display area with a diagonal value of 8 inches, which can display videos or images with 16M color and 1280*720 Resolution.
Support wide temperature environment
The TFT LCD capacitive touch screen adopts a wide temperature resistant design and can operate normally in an environment of -30~+85℃, and can be placed in an environment of -40~+90℃. This product is designed to withstand harsh environments and maintain its performance, providing durability and reliability for long-term use.
Product Features:
Key Features:
| Product Name | TFT LCD Capacitive Touchscreen |
|---|---|
| Type | Thin Film Transistor Capacitance Touchscreen |
| Module Type | TFT Liquid Crystal Capacitance Touch Display |
| Storage Temperature | -40 ~ +90℃ |
| Resolution | 1280*720 Dots |
| Module FPC Pin Number | 30 Pins |
| Contrast Ratio | 800:1 |
| Backlight Type | 36 Pcs White LED |
| Module Outline Size | 203.4*14.94*6.4 Mm |
| Touch Glass Cover Hardness | 6H |
| Capacitive Touch Panel Driver IC | GT911 |
| Active Area | 176.64*99.36 Mm |
| Warranty | 12 Months |
CH800WX04A-CT has a wide range of applications and is widely used in various industries such as communication equipment, home appliances, industrial control, medical equipment, vehicle equipment, digital equipment, wearable equipment, and Internet of Things equipment. Specific application examples include GPS navigation, digital photo frames, netbooks, fingertip pulse meters, vehicle-mounted display equipment, payment financial equipment, customer terminal equipment, elevator display equipment, industrial control equipment, instrumentation equipment, artificial intelligence equipment, medical equipment, smart Home equipment, security identification equipment, vending machines, etc.
In addition to a wide range of application fields, Chenghao Optoelectronic also provides various forms of customization services, including module customization, packaging customization and transportation customization according to customer needs. In terms of module customization, they can redesign the FPC shape and structure according to the customer's project needs to ensure that the module perfectly matches the installation equipment. In addition, they can also define module interface types according to customer requirements, supporting SPI, MCU, RGB, MIPI, LVDS, HDMI and other interface types . For customers who require touch interaction, Chenghao Optoelectronic provides two solutions, capacitive touch and resistive touch, to meet the needs of different application scenarios.
In short, CH800WX04A-CT is a display module with a wide range of application fields and customized services. Its high resolution, IPS display technology and capacitive touch screen make it have good application prospects in various industries. If you have project needs for LCD/LCM/LCD solutions, please contact Chenghao Optoelectronic, they will provide you with high-quality products and customized services.
