300nits SPI Circular Tft Lcd Display 40P Open Frame Lcd Module
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | 100 pcs | Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements |
|---|---|---|---|
| Delivery Time : | 3~7 Days | Payment Terms : | TT |
| Supply Ability : | 300K pcs/month |
| Place of Origin: | China Shenzhen | Brand Name: | Chenghao Optoelectronic |
|---|---|---|---|
| Certification: | RoHS，CE、FCC | Model Number: | CH700WS10E-CTF |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Product Name: | 7.0 Inch Small Touch Screen Display Module | Operating Temperature: | -20℃~70℃ |
|---|---|---|---|
| Touch Type: | Capacitive | Color: | 16M |
| Storage Temperature: | -30℃~80℃ | Lcm Interface: | RGB |
| Touch Panel Interface: | I2C | Display Mode: | IPS/Normally Black/Tranmissive |
| Highlight: | 7.0 Inch Touch Screen Display Module,1024*600 Touch Screen Display Module,16M Color Touch Screen Display Module |
||
Product Description

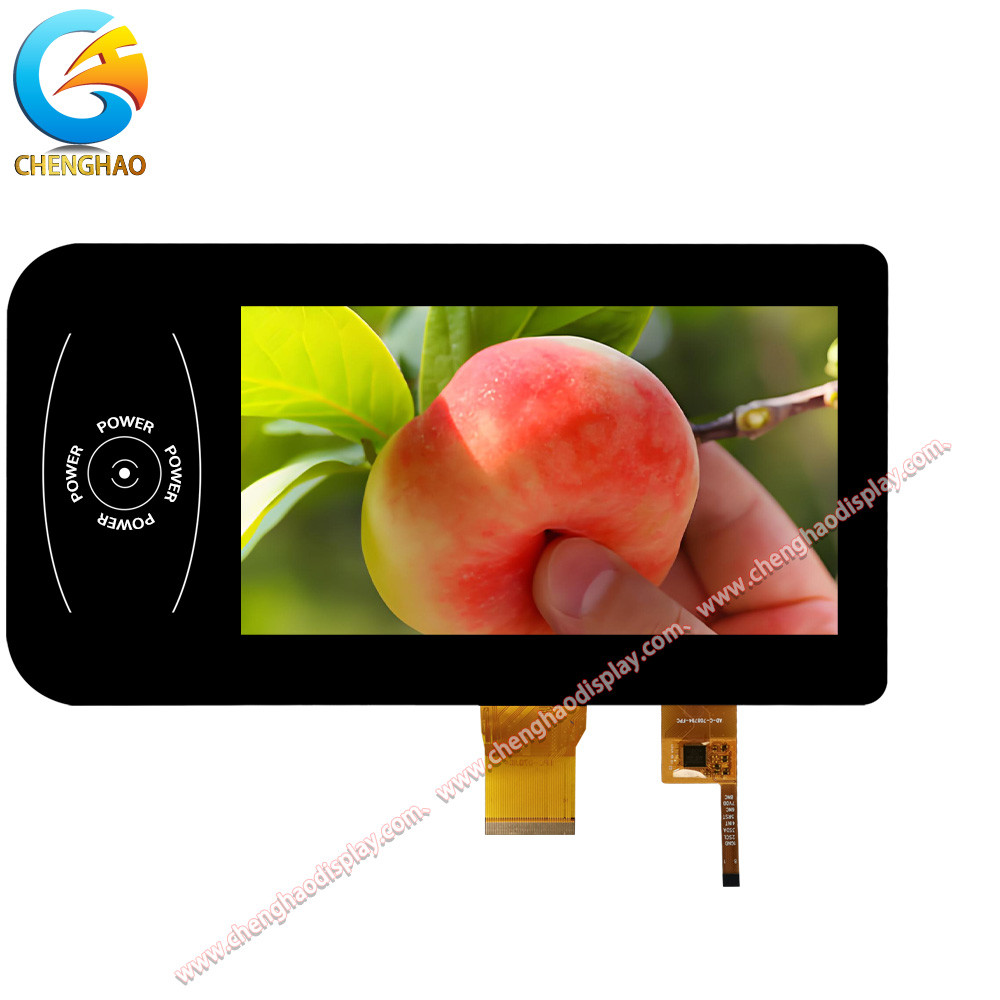

The ChengHao Display model CH700WS10E-CTF is a TFT LCD module that utilizes amorphous silicon TFT as a switching device and is equipped with a color active matrix, which produces vibrant and high-quality colors.

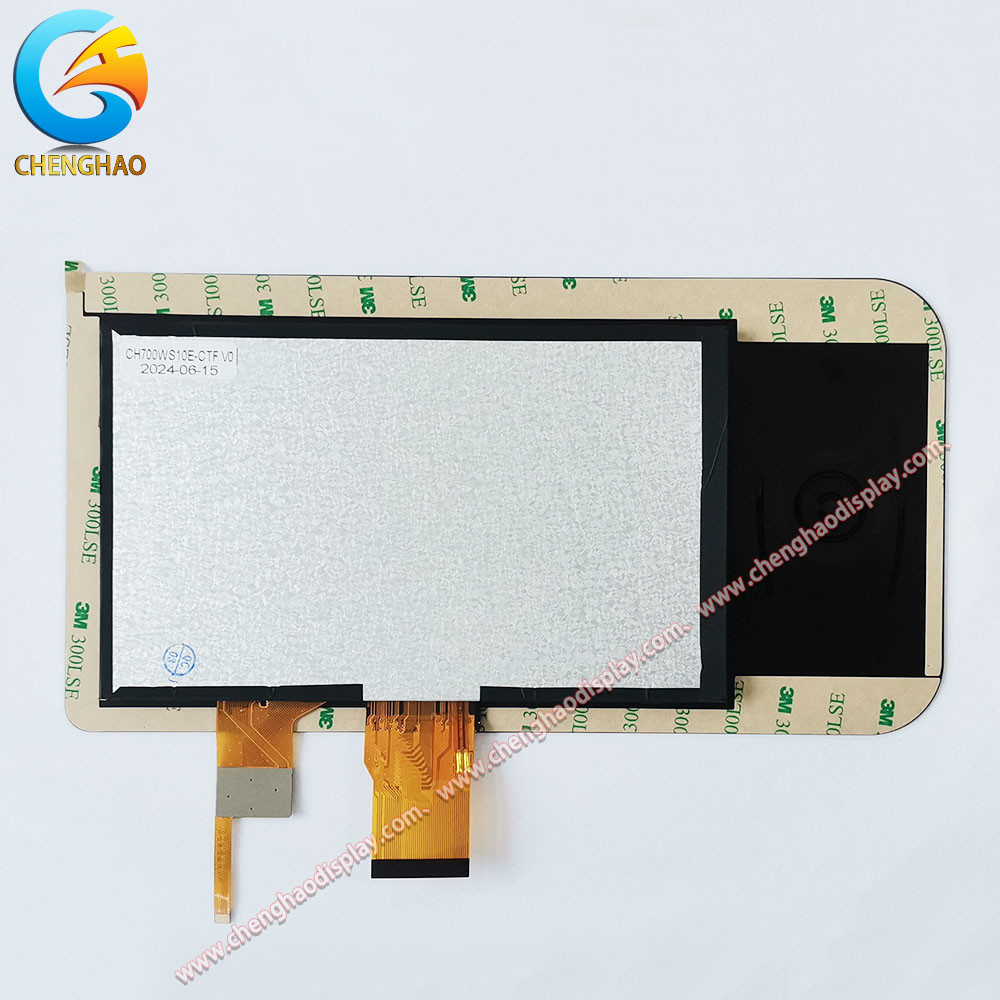

The module comprises of key components such as a touch glass cover with a capacitive touch module and a tempered glass panel. The touch module supports multi-touch and uses the I2C interface to communicate with external devices, while the tempered glass panel is designed to meet the specific installation requirements of the customer's equipment.
Measuring 7.0 inches diagonally, the TFT LCD has an active display area with a resolution of 1024*600*3-RGB, and the driver can display 16M colors through R.G.B signal input. The driver is mounted on the glass and is interconnected with the FPC component to drive the display module.
The backlight assembly consists of 27 white LED beads, which provide a backlight brightness of over 1000cd/m2. Furthermore, this LCD module is compliant with RoHS and is halogen-free, making it eco-friendly.
The CH700WS10E-CTF display module has a unique feature - sunlight readability. With a backlight assembly that produces 1000cd/m2 brightness, users can clearly read the screen even in moderate outdoor sunlight. This makes the display suitable for use in environments where ambient light changes frequently throughout the day.
Another advantage of this display touch screen is its free viewing angle. This display uses IPS display mode to achieve ultra-high contrast, allowing users to get extremely high clarity when reading the screen at any viewing angle.

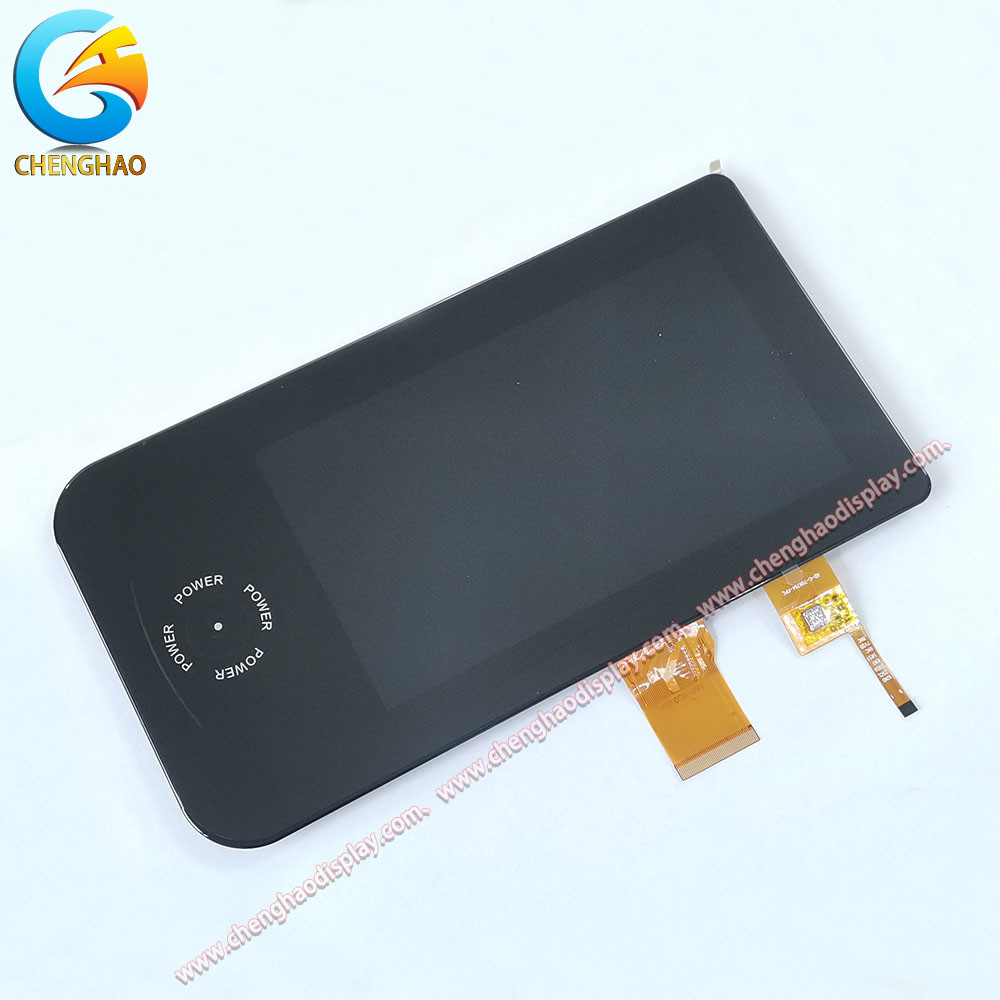

To support human-computer interaction, the module surface is also equipped with a capacitive touch glass cover. This allows users to interact with the screen by touch, which is ideal for interactive applications or scenarios where touch input is critical, such as home appliances, industrial equipment, and medical equipment.
| Model Number | CH700WS10E-CTF |
| Place of Origin | China Shenzhen |
| Certification | RoHS,CE,FCC |
| Color | 16M |
| Resolution | 480*800 Pixels |
| Luminance | 1000 Cd/m2 |
| FPC Pin Number | 50 Pins |
| Product Name | 7.0 Inch 1024*600 Pixels Small Touch Screen Display Module |
| Keywords | IPS LCD, LCD TFT module, TFT LCD touch display,tft display module |
The Chenghao Optoelectronics CH700WS10E-CTF is an advanced full-color touch screen module designed for home washing machines. Unique in its class, this module boasts a powerful and responsive touch screen interface that other technologies can't match.
At Chenghao Optoelectronics, we understand that different customers have different requirements, which is why we offer flexible customization options for our products. Whether you need to modify certain parameters of the display module or go full custom, we have the expertise and resources to ensure you get what you need.
Our modules are versatile and can be applied to a range of fields and equipment from industrial control to home appliances, medical devices, laboratory instruments, IoT devices, artificial intelligence, automotive transportation, and more. Whatever your needs, Chenghao Optoelectronics can meet them.
As an LCD manufacturer with rich technical experience, Chenghao Optoelectronic's most competitive and core capability is to provide customized LCD services and products according to customer needs. Our LCD customization includes but is not limited to the following:
(1) Design and customize l touch glass cover
The touch glass cover is an important component of the LCD touch screen display module. Its shape and size will directly affect whether the LCD module can be perfectly installed in the device. We can design and customize the touch glass cover according to customer requirements. The customization content includes but is not limited to the shape, thickness, punching, silk screen and other designs of the glass panel.
(2) Design and customize FPC
As the communication bridge between the LCD module and the external device, the shape and structure of the FPC are mainly determined by the requirements of the installation equipment. We can design and customize the shape, structure, pin number and other contents of the FPC according to the customer's project requirements.
(3) Modify the backlight brightness
The backlight component is the most important component of the LCD screen module. Its brightness will directly affect the clarity of the user reading the screen. All of Chenghao Optoelectronic's LCD modules support customization of brightness within 200~3000 cd/m2, so that they can meet the environmental use requirements of different customers for different brightness.
(4) Customized interface
All of our LCD modules support, but are not limited to, customization by customers within the range of RGB, MCU, MIPI, SPI, LVDS, HDMI, and EDP.
Q1: What is the brand name of this small LCD touch screen?
A1: The brand name of this small LCD touch screen is Chenghao Optoelectronic.
Q2: What is the model number of this small LCD touch screen?
A2: The model number of this small LCD touch screen is CH700WS10E-CTF.
Q3: Where is this small LCD touch screen made?
A3: This small LCD touch screen is made in China Shenzhen.
Q4: What certifications does this small LCD touch screen have?
A4: This small LCD touch screen has RoHS, CE, and FCC certifications.
Q5: What are the packaging details for this small LCD touch screen?
A5: All the products are packed in the right way to keep them safe. For small sizes of products, we use tray + carton. For bigger sizes, we use foam slot + carton. We also design packages according to customers' requirements.
Q6: What is the minimum order quantity for this small LCD touch screen?
A6: The minimum order quantity for this small LCD touch screen is 100 pcs.
Q7: What is the delivery time for this small LCD touch screen?
A7: The delivery time for this small LCD touch screen is 3~7 days.
Q8: What are the payment terms for this small LCD touch screen?
A8: The payment terms for this small LCD touch screen are TT.
Q9: What is the supply ability for this small LCD touch screen?
A9: The supply ability for this small LCD touch screen is 300K pcs/month.
