13.3 TFT Panel 1920x1080 Pixels Custom Lcd Display Screen With Transmissive Display Mode

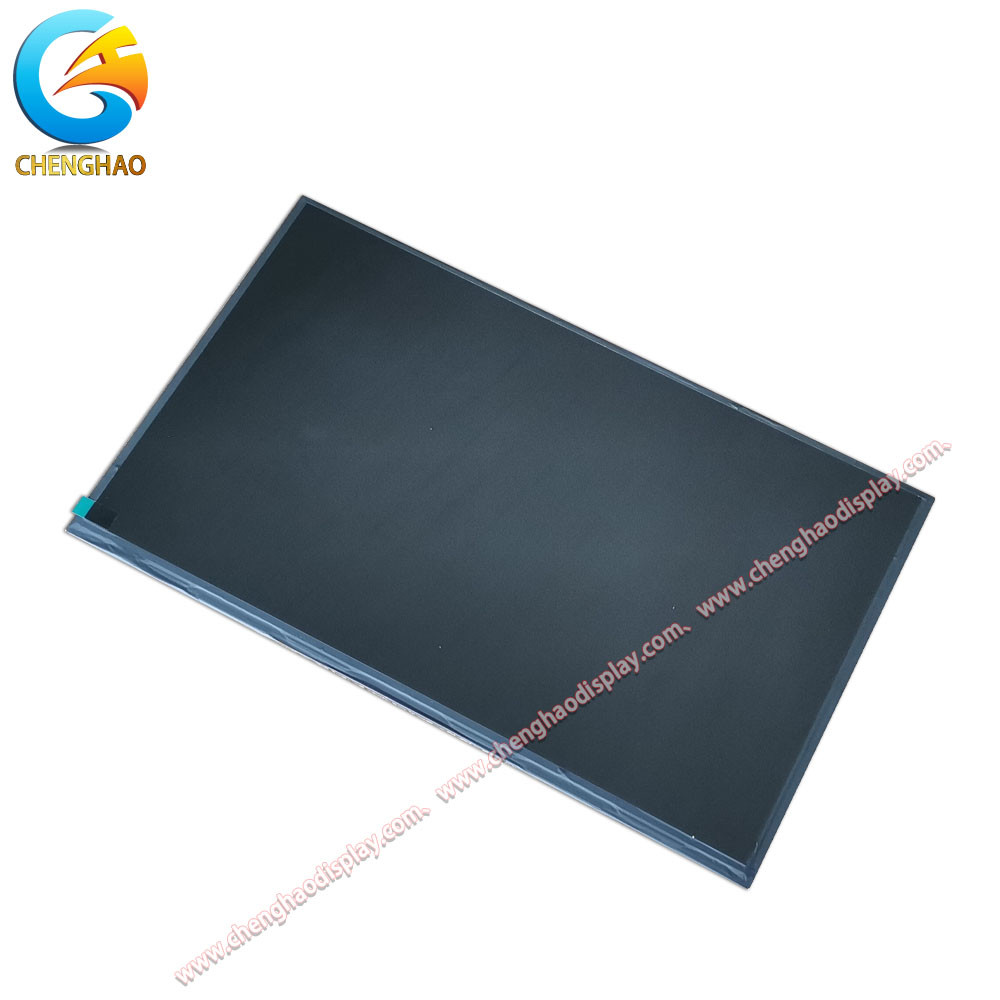

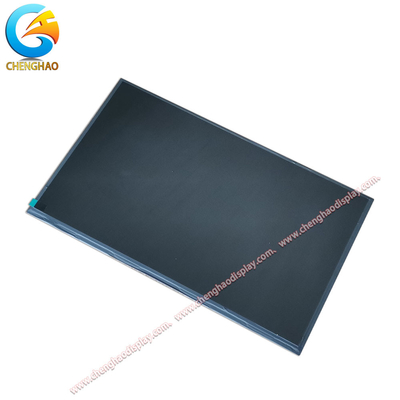

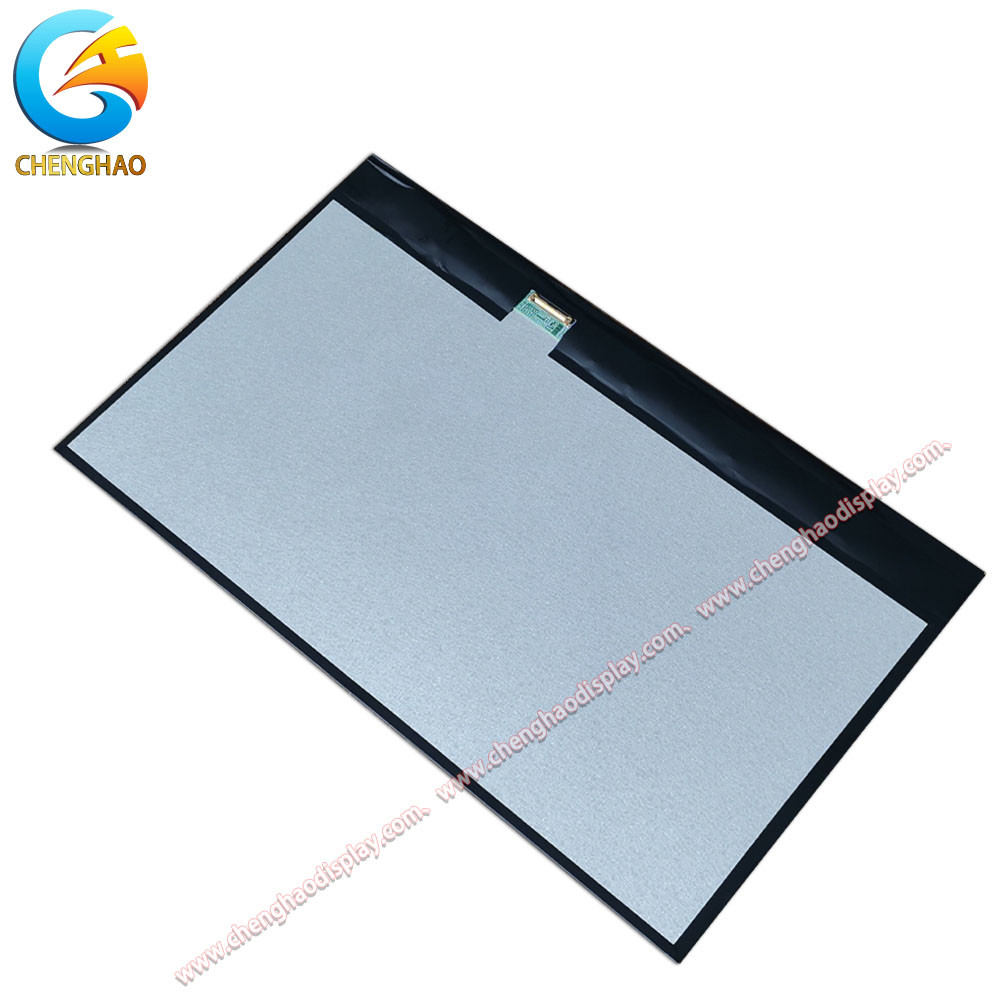

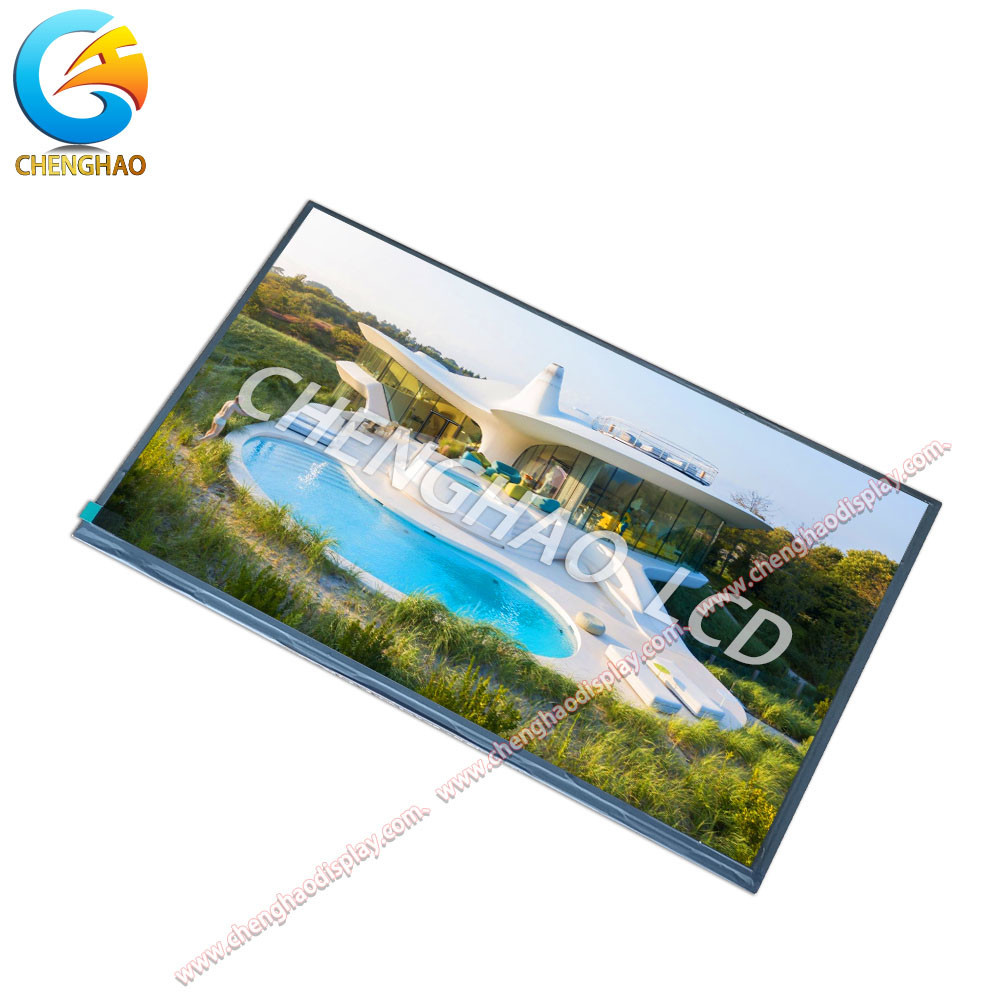

ChengHao Display model CH133FH01A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that employs amorphous silicon TFT as a switching device. It consists of a TFT LCD panel, a driving IC, a back-light, and Connector.

This display module is characterized by a diagonal measurement of 13.3 inches and the capability to display 16M colors and 1920*1080 pixels of full-color images through R.G.B. signal input. It uses IPS display technology, with a free viewing angle of 89/89/89/89, providing the best viewing experience. The module's temperature range extends from -20°C to +70°C for normal operation, while its storage temperature range varies from -30°C to +80°C. With a maximum brightness of 330 cd/m2, this display module also supports EDP interface. Additionally, it complies with RoHS & Halogen-free standards.

The ChengHao Display model CH133FH01A is a high-quality LCD screen that has been designed and customized by Chenghao Optoelectronic. This display module has a resolution of 1920 x 1080, allowing for clear and precise viewing of the screen.

• Free Viewing Direction is supported: Thanks to its use of IPS display technology, the display supports viewing angles of 89/89/89/89, making it easy for users to read the screen from any angle without worrying about blurred vision.
• Supports wide temperature environment: The CH133FH01A has a robust design that supports operation at temperatures ranging from -20 to +70 degrees Celsius, making it ideal for use in extreme environments.
• Long service life: The backlight component of the CH133FH01A has a service life of up to 50000H, which contributes significantly to the durability of this display module.
• Bright colors: The CH133FH01A can display 16M colors by R.G.B. signal input, which results in realistic video or images.
• EDP interface support: CH133FH01A uses the EDP interface for communication and interconnection with external devices, which enhances its advantages in industrial application.

Module Name: 13.3 inch Tft Lcd Display Module

Module Type: 13.3" TFT

Display Mode: IPS/Transmissive/Normally Black

Number of Dots: 1920*1080

Viewing Direction: 89/89/89/89

Luminance: 330 cd/m2

Contrast: 800

Color: 16M

Pin Number: 30 pins

Operating Temperature: -20 ~ +70

Storage Temperature: -30 ~ +80

Customizable Full HD LCD Screen for Automotive Central Control

ChengHao Display Model CH133FH01A Introduction - A high-performance Full HD LCD screen, developed and customized to meet the needs of automotive central control. With customizable performance parameters, this LCD screen can be customized to the precise requirements of a range of industries, and can be widely used in various industries such as automotive manufacturing, industrial equipment, home appliances, consumer electronics, medical equipment, etc.
