800x600 Pixels Lcd Touch Screen Display 10.4 Inch With SPI RGB Mcu Multi-Interface

Product Description:

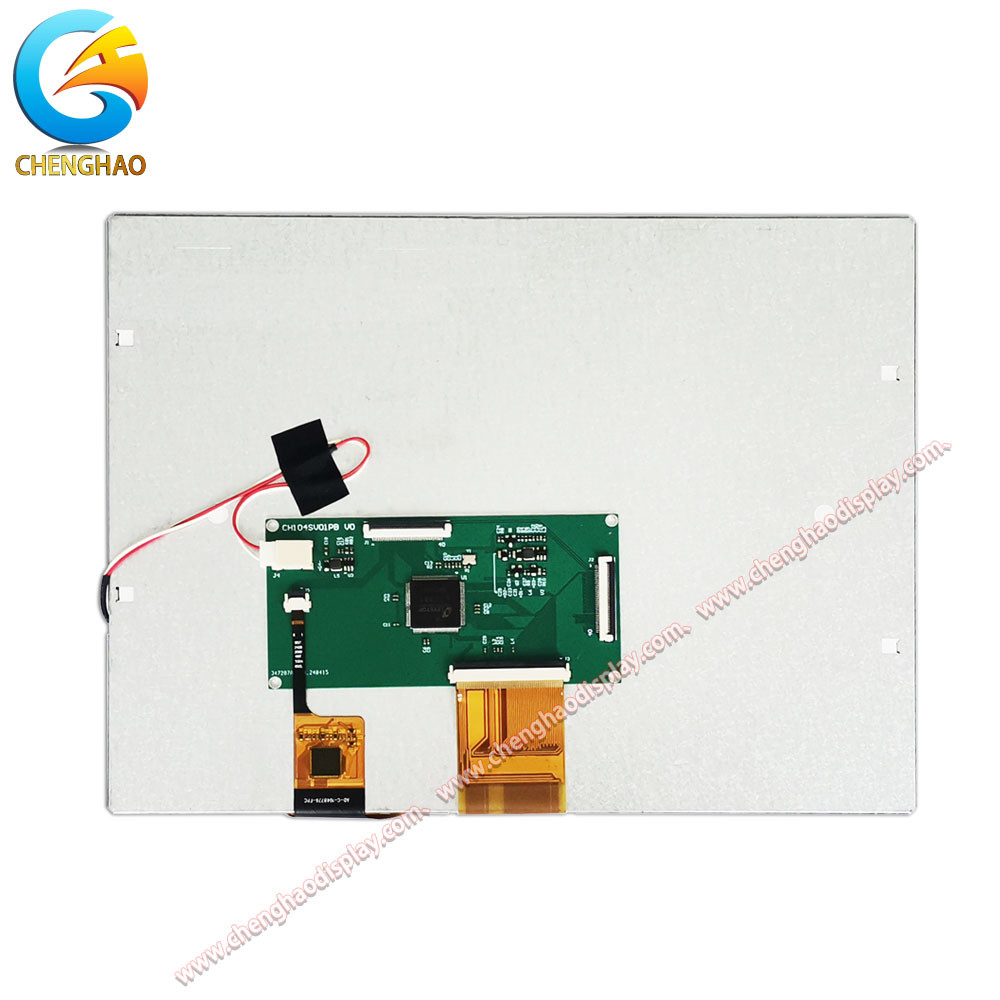

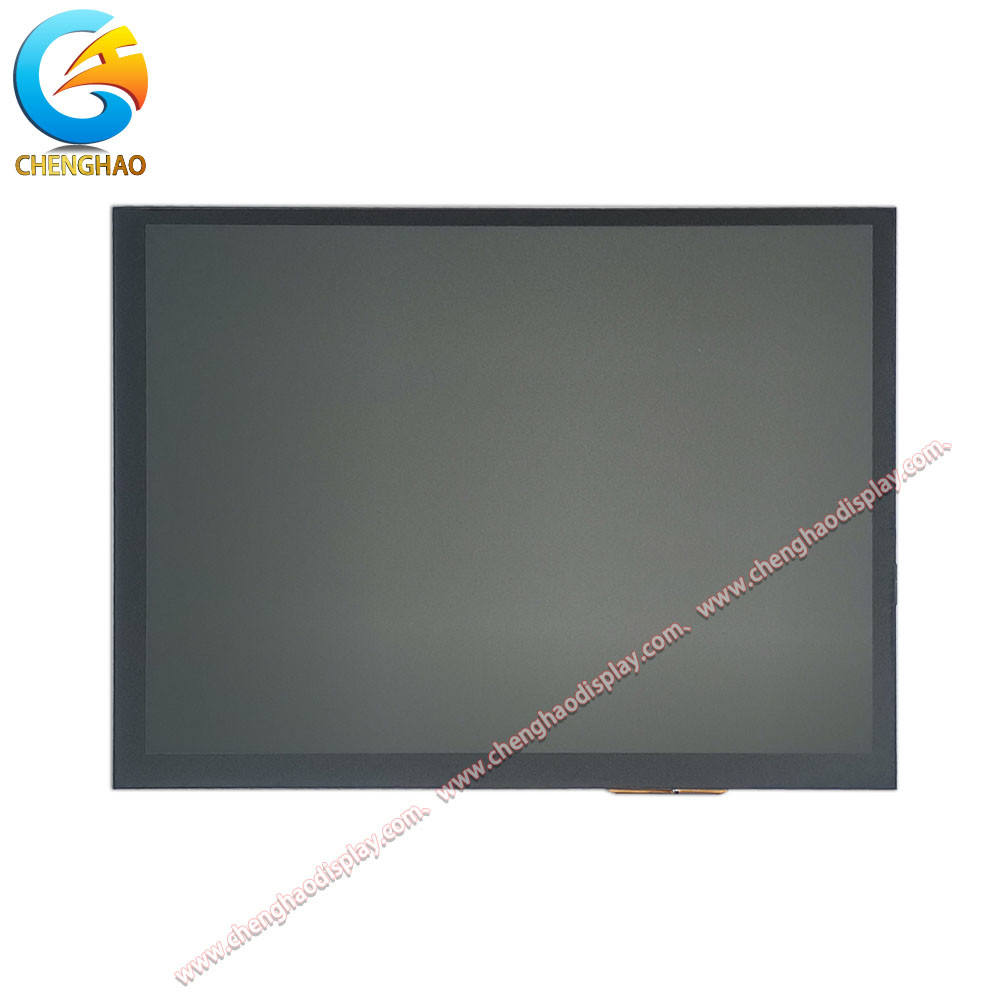

Chenghao Display model CH104SV01A-CT-PB is an LCD module that utilizes amorphous silicon TFT as a switching device. This module includes a touch panel, an LCD display screen, and a PCB board. The LCD display screen consists of a touch panel, a TFT LCD panel, a driving IC, a back-light, and FPC.

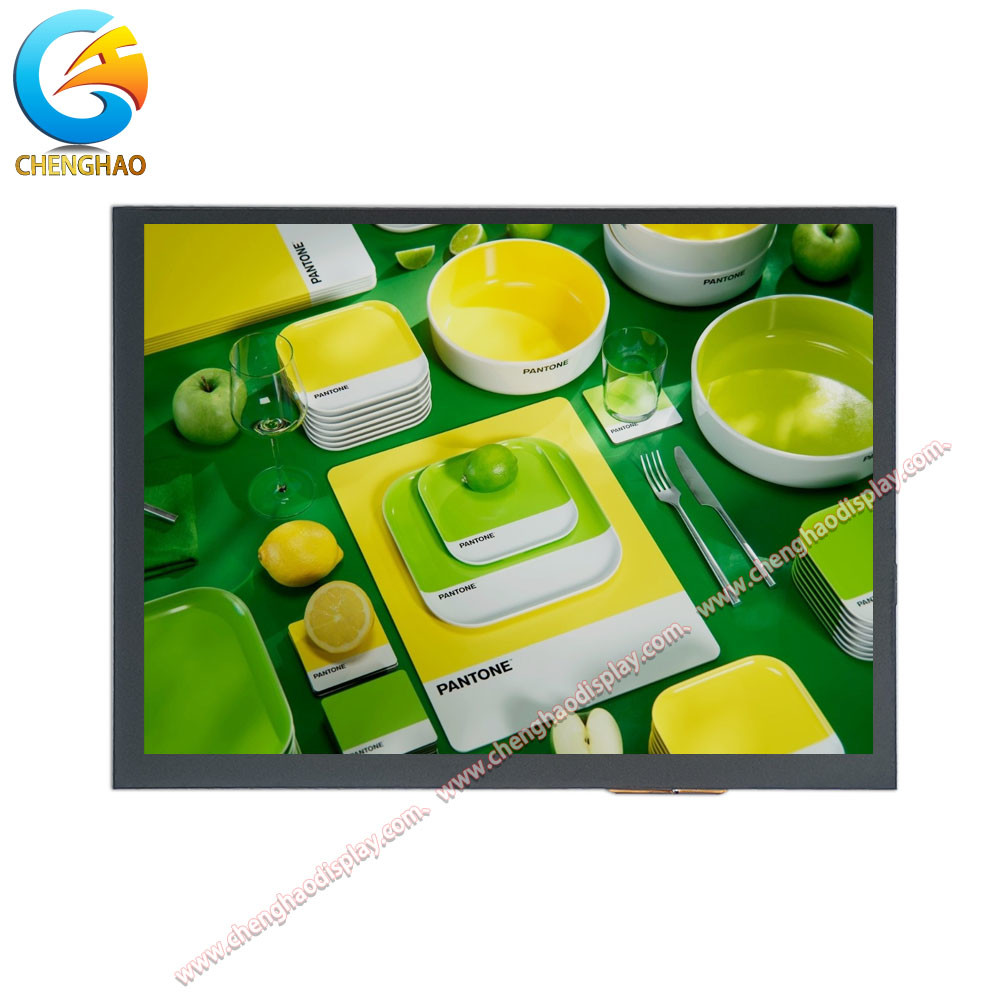

The display screen is capable of outputting image content with 16.7M color and 800*600 pixels after inputting R.G.B. signal. It has a 10.4 inch active display area and adopts TN/Tranmissive/Normally White display mode. The best viewing angle is at 12 o'clock, and it can operate at temperatures ranging from -20 ~ +70℃. This display screen is compatible with SPI, RGB, MCU, and other interfaces.

The touch panel on this module is a capacitive touch glass cover, and it is equipped with a control chip model GT9271. The glass cover can communicate with external devices through the I2C interface, and it also supports multi-touch. The thickness of the glass cover is 1.1 mm, and it is customizable to meet any customer's requirements.

Finally, it is essential to note that this module is RoHS compliant & Halogen-free, ensuring that it is environmentally friendly and safe for public use.

Features:

Technical Parameters:

Module Name:10.4 inch Lcd Touch Screen Module
Module No:CH104SV01A-CT-PB
Module Type: 10.4" TFT+CTP+PCB
Resolution: 800*600 dots
Display Mode: TN/Transmissive/Normally White
Viewing Direction: 12:00
Brightness: 800 cd/m2
Contrast: 500
Color: 16.7M
Touch Type: Capacitive
Touch Interface: I2C
Touch Glass Cover's lens: 1.1 mm
Operating Temperature: -20 ~ +70 ℃
Storage Temperature: -30 ~ +80 ℃

Applications:

Chenghao Display has designed and customized CH104SV01A-CT-PB, a 10.4 inch LCD display module, specifically for industrial equipment.

This display module has several functional parameters that can be modified and adjusted as per customer requirements. This feature makes it highly versatile and suitable for a wide range of uses, including in home appliances, automobile transportation, Internet of Things equipment, medical equipment, and other similar industries.

Overall, Chenghao Display has created a display module that allows for flexibility and adaptability to meet the needs of various industries.

FAQ:

Q1: What is the brand name of this product?

A1: The brand name of this product is Chenghao Optoelectronic.

Q2: What is the model number of this product?

A2: The model number of this product is CH104SV01A-CT-PB.

Q3: Where is this product manufactured?

A3: This product is manufactured in China Shenzhen.

Q4: Does this product have any certifications?

A4: Yes, this product is certified with RoHS, CE, and FCC certifications.

Q5: What is the minimum order quantity for this product?

A5: The minimum order quantity for this product is 100 pcs.

Q6: How is this product packaged?

A6: All the products are packed in the right way to keep it safe. For small sizes of products, we use tray + carton, for bigger sizes we use foam slot + carton. We also design packages according to customers' requirements.

Q7: What is the delivery time for this product?

A7: The delivery time for this product is 3~7 days.

Q8: What are the payment terms for this product?

A8: The payment terms for this product are TT.

Q9: What is the supply ability for this product?

A9: The supply ability for this product is 300K pcs/month.
