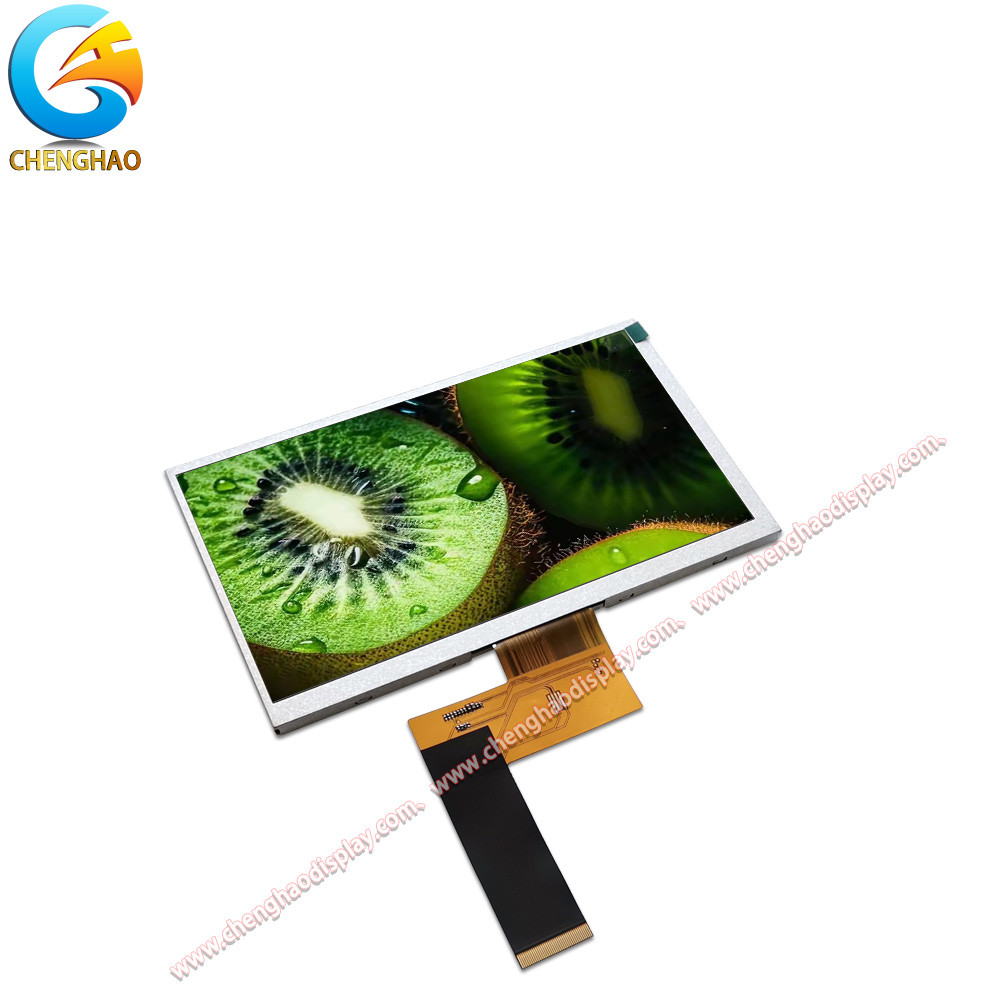

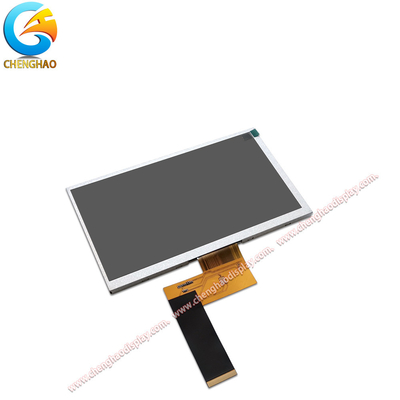

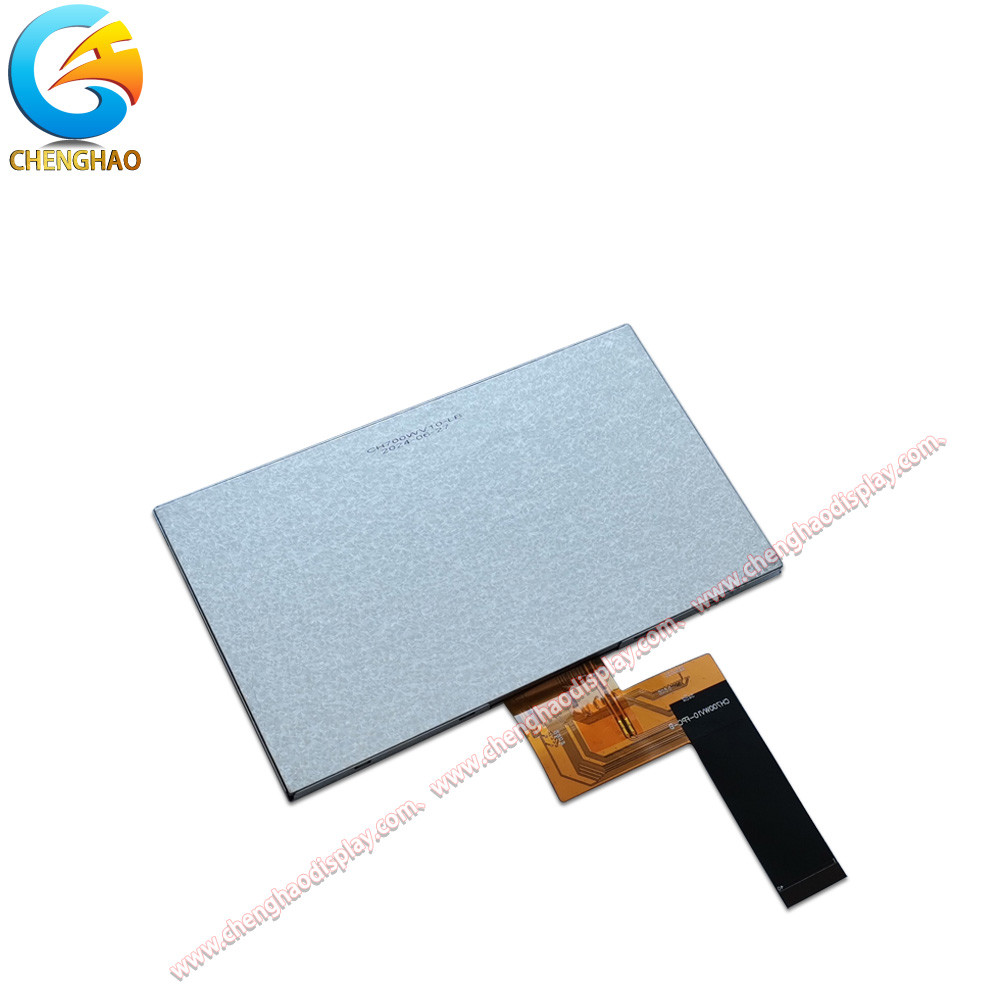

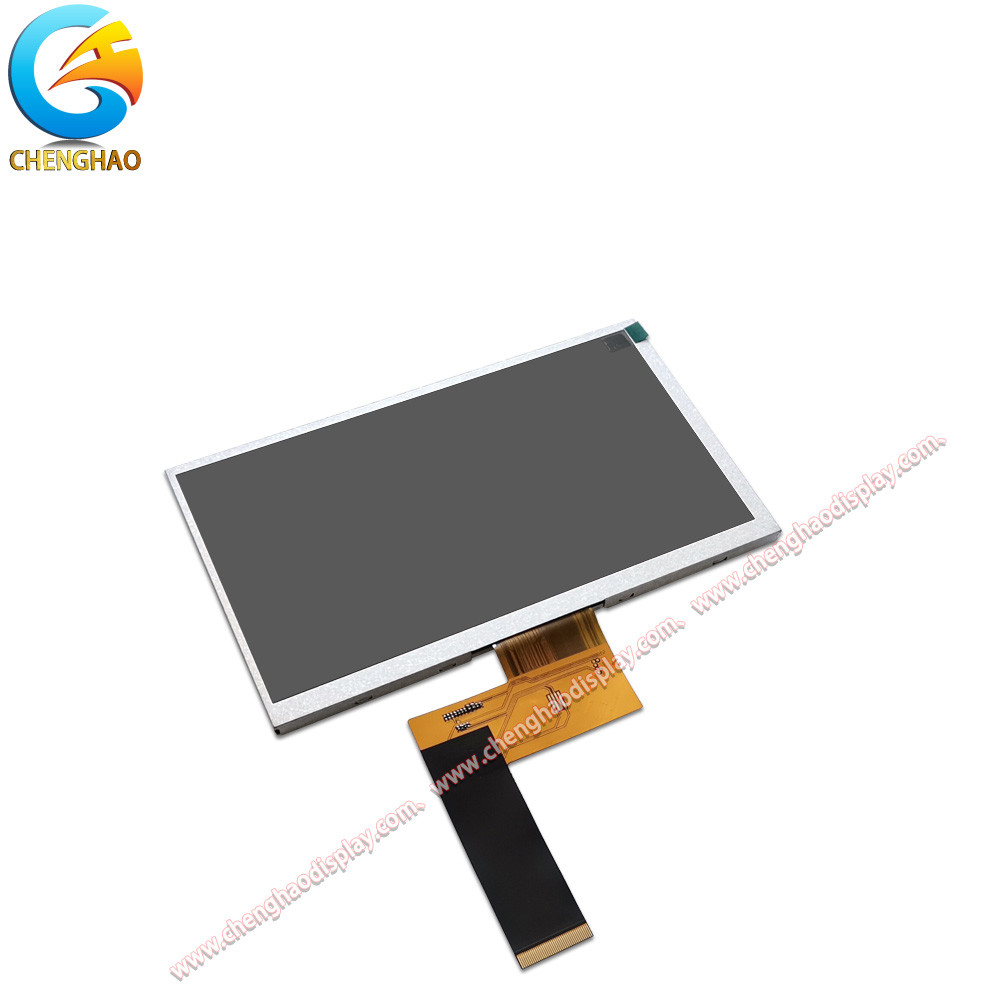

800x480 IPS TFT LCD Display 40 Pins RGB Interface 7 Inch Color Screen

Minimum Order Quantity : 100 Pcs Packaging Details : All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Delivery Time : 7-15 working days Supply Ability : 300Kpcs/month
Place of Origin: China,Shenzhen Brand Name: Chenghao Optoelectronic
Certification: CE、RoHS Model Number: CH700WV10A
Document: Product Brochure PDF

Detail Information

Product Name: IPS Tft Lcd Display Viewing Direction: 85/85/85/85
Storage Temperature: -30 ~ +80℃ Luminance: 1000 Cd/m2
Color: 16.7M Display Mode: IPS/Transmissive/Normally Black
Display Interface: RGB Operating Temperature: -20 ~ +70℃
Display Type: 7.0
Highlight:

40 Pins TFT LCD Display

,

7 Inch TFT LCD Display

,

800x480 IPS TFT LCD Display

Product Description

Product Description:

Chenghao CH700WV10 is a top-of-the-line full-color TFT LCD display. With a large 7-inch color effective display area, the display can output high-quality images and videos with a resolution of 800*480 and 16M colors.

One of the outstanding features of this display is its ability to operate smoothly over a wide range of temperatures. It can operate normally in environments as low as -20℃ and as high as +70℃. When not in use, it can be safely stored in environments as low as -30℃ and as high as +80℃.

The Chenghao CH700WV10 has an impressive design and a lifespan of 50000 hours. In addition, this 7-inch display uses IPS display technology to provide an optimal viewing angle of 85/85/85/85. It supports RGB interface and the FPC pin count is 40 pins. Most importantly, the Chenghao CH700WV10 is RoHS-compliant and halogen-free, making it an ideal choice for environmentally conscious buyers.



Features:

Sunlight Readable Display

The Chenghao CH700WV10 is an LCD screen that is highly readable in sunlight. With a brightness of up to 1000 cd/m2, this display screen supports sunlight readability.



Wide Temp Display

This High Brightness TFT LCD is designed to work in a wide temperature range of -20 ~ +70℃ and can be stored in an environment of -30 ~ +80℃. This is particularly important for devices that work in an environment with rapid temperature changes.



Free Viewing Direction Display

This LCD display uses the IPS/Transmissive/Normally Black display mode, which expands the optimal viewing angle to 85/85/85/85. This means that users can get a great viewing experience when reading the screen from any angle.





800x480 IPS TFT LCD Display 40 Pins RGB Interface 7 Inch Color Screen 0

Technical Parameters:

Viewing Direction 85/85/85/85
Luminance 1000 cd/m2
Display Interface RGB
Display Type 7.0
Storage Temperature -30 ~ +80℃
Resolution 800*480 Dots
Display Mode IPS/Transmissive/Normally Black
Operating Temperature -20 ~ +70℃
Color 16.7M


Applications:

The Chenghao CH700WV10 is a 7-inch color IPS display that offers outstanding performance and high cost effectiveness. Its exceptional features make it highly suitable for use in a wide range of applications, including industrial control terminal equipment, vehicle-mounted GPS navigation, medical instruments and equipment, and smart home devices, among others.



800x480 IPS TFT LCD Display 40 Pins RGB Interface 7 Inch Color Screen 1

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is Chenghao Optoelectronic.

Q: What is the model number of this product?

A: The model number of this product is CH700WV10A.

Q: Where is this product manufactured?

A: This product is manufactured in China, specifically in Shenzhen.

Q: What certifications does this product have?

A: This product has CE and RoHS certifications.

Q: What is the minimum order quantity for this product?

A: The minimum order quantity for this product is 100 pieces.

Q: How is this product packaged?

A: All the products are packed in the right way to keep it safe. For small sizes of products, we use tray + carton, for bigger sizes we use foam slot + carton. We also design packages according to customers' requirements.

Q: What is the delivery time for this product?

A: The delivery time for this product is 7-15 working days.

Q: What is the supply ability for this product?

A: The supply ability for this product is 300Kpcs/month.
