3.5 Inch Touch Screen Display 480*320 Resolution IPS TFT Screen with SPI MCU RGB Multi-interface

Product Description

Product Description:

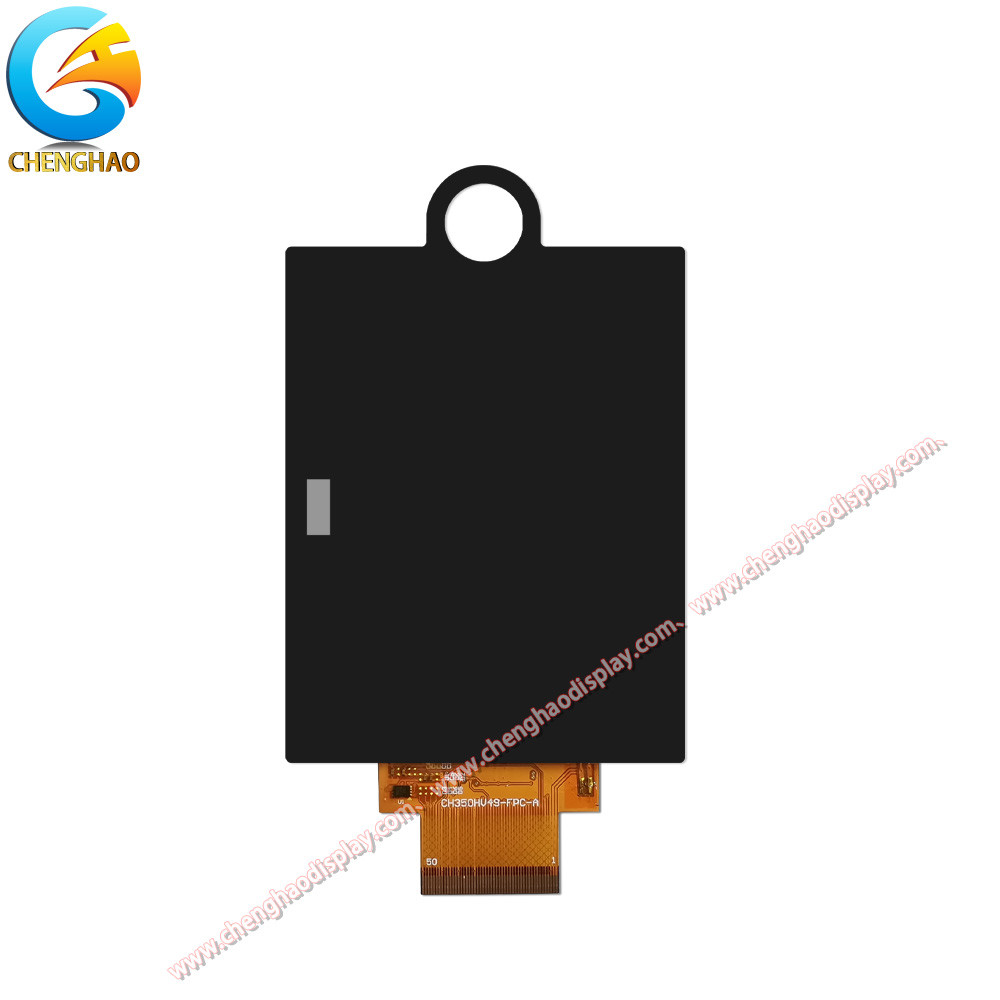

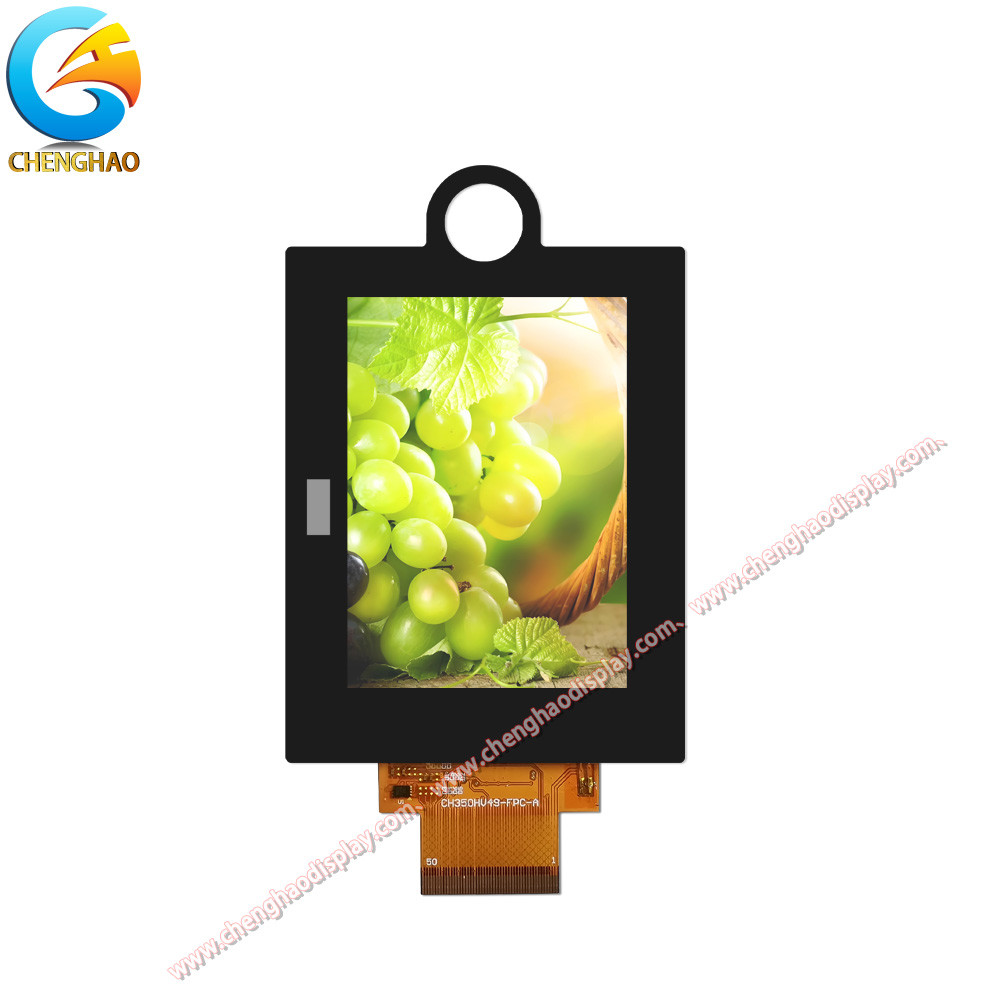

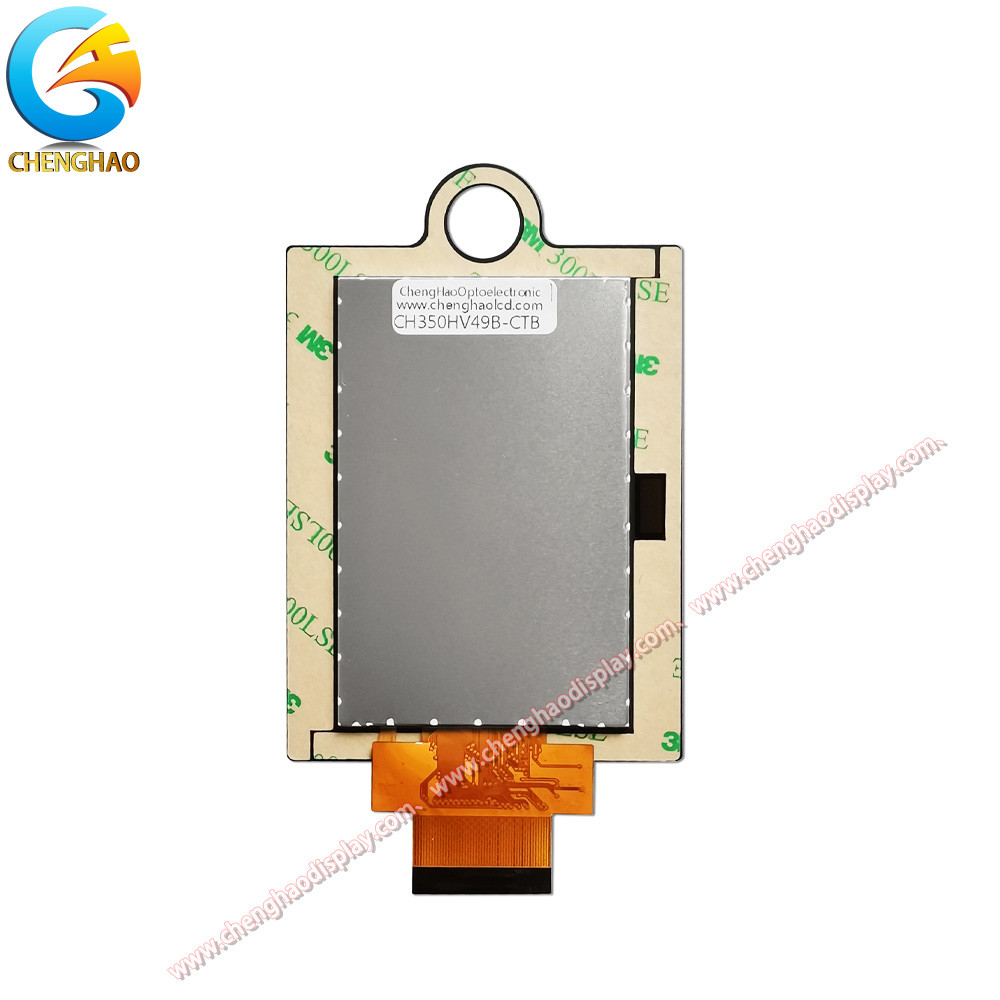

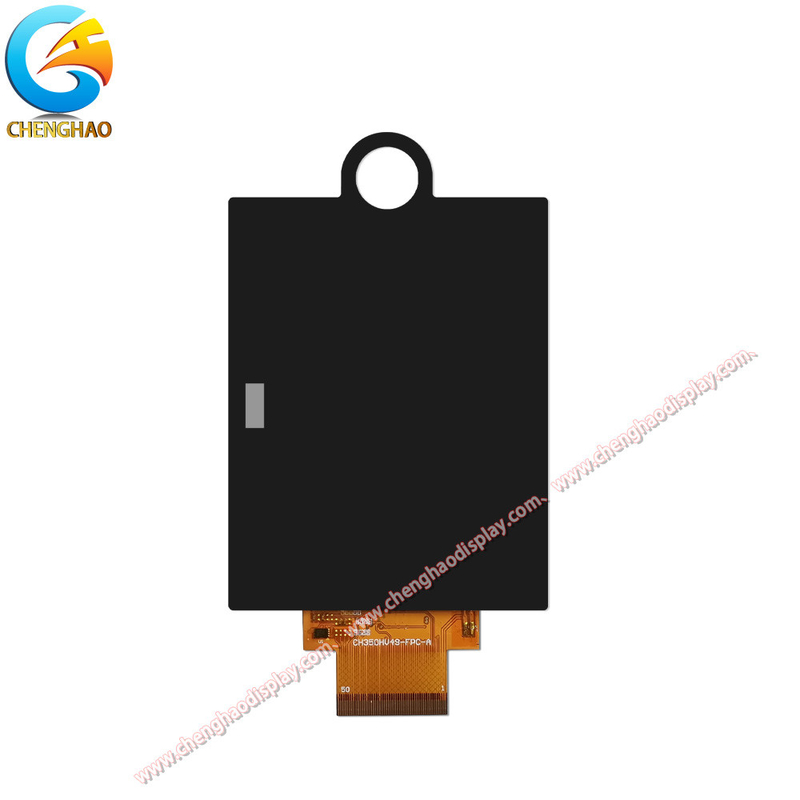

CH350HV49B-CTB is a 3.5 inch small touch LCD module designed by Chenghao Optoelectronic for smart door lock products. The display module has a resolution of 320*480 pixels and can display 262K color videos or images. The screen design brightness is 300 cd/m2 Luminance. This level of brightness allows this display to display clearly in most indoor environments. This display module adopts IPS/Transmissive/Normally Black display mode, supports 85/85/85/85 viewing angles, and can run smoothly for more than 30000 hours in -20 ~ +70℃ environment. The module supports SPI, RGB, MCU and other interfaces. The display module is RoHS-compliant and halogen-free.
	Features
		CH350HV49B-CTB is an outstanding LCD screen module that offers a plethora of impressive features. One of its most distinctive features is that it comes with a custom touch panel that has a full black effect, which not only supports screen touch sensing but also gives the entire display module a more natural and luxurious appearance. Furthermore, this LCD screen module adopts IPS display technology, which greatly enhances the viewing angle of the display, expanding it to 85/85/85/85. This means that the display remains clear and sharp from different viewing angles, without any blurry or distorted images that are usually caused by angle problems. Another excellent feature of this LCD module is its wide temperature resistance design, allowing it to function smoothly within a temperature range of -20 ~ +70℃. This design strengthens the display module's resistance to various environments, and greatly improves its durability and reliability under challenging working conditions.



Technical Parameters:

Luminance	300 Cd/m2
Operating Temperature	-20 ~ +70 ℃
Lcd Interface	SPI + MCU + RGB
Display Mode	IPS / Transmissive / Normally Black
Viewing Direction	85/85/85/85
Resolution	480*320 Dots
Life-time	30000 H
Touch Panel Interface	IIC
Touch Panel Type	Capacitive
Storage Temperature	-30 ~ +80 ℃

Applications:

The CH350HV49B-CTB is a custom LCD display module built for smart home devices. This display module is designed to meet the different needs of customers and can be easily modified accordingly, making it versatile and suitable for industries such as medical equipment, industrial equipment, automotive equipment, commercial equipment, artificial intelligence, and home appliances.
Chenghao Optoelectronic has a professional technical team that can modify and customize the CH350HV49B-CTB TFT lcd screen according to customer requirements, so that this LCD screen can be perfectly integrated with different devices, making it a perfect choice for different industries. For example, in smart homes, it can be used to display information such as temperature, humidity, or lighting status.
In the medical device industry, it can be used to display key data such as heart rate and blood pressure readings. It can also be used to monitor and display diagnostic images on medical equipment such as X-ray and ultrasound machines. In addition, it can also be integrated into automotive equipment to display key information such as speed, mileage readings, and fuel consumption for the convenience of drivers.

FAQ:

Q: What is the brand name of this product?
A: The brand name of this product is Chenghao Optoelectronic.

Q: What is the model number of this product?
A: The model number of this product is CH350HV49B-CTB.

Q: Where is this product made?
A: This product is made in China, specifically in Shenzhen.

Q: What certifications does this product have?
A: This product has CE, RoHS, and FCC certifications.

Q: What is the minimum order quantity for this product?
A: There is no minimum order quantity for this product.

Q: What are the packaging details for this product?
A: All the products are packed in the right way to keep it safe. For small sizes of products, we use tray + carton. For bigger sizes, we use foam slot + carton. We also design packages according to customers' requirements.

Q: What is the delivery time for this product?
A: The delivery time for this product is 3-7 days.

Q: What are the accepted payment terms for this product?
A: The accepted payment terms for this product are TT or others.

Q: What is the supply ability for this product?
A: The supply ability for this product is 20,000,000 pcs/month.
