SPI RGB MCU Multiple Interface TFT Lcd Screen 2.4 Inch Capacitive Touch Panel

Product Description:

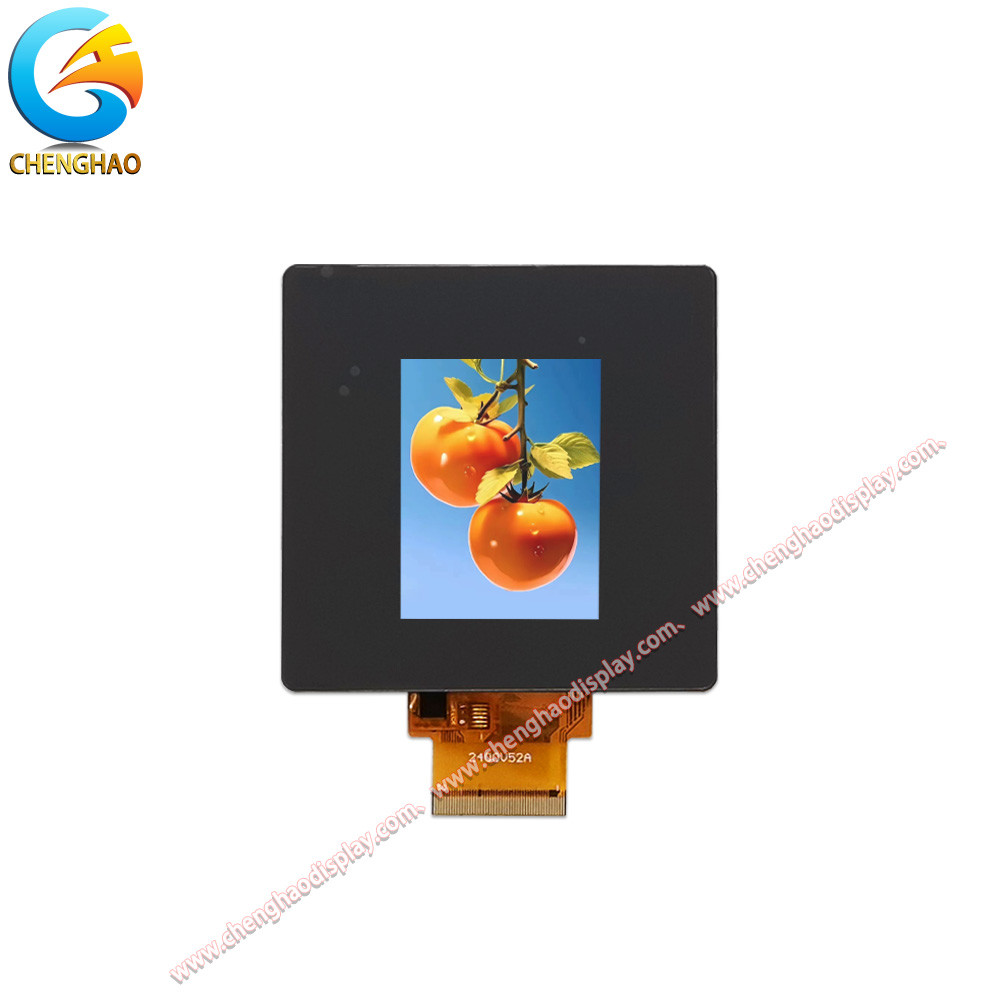

CH240QV52A-CTD is a small LCD touch screen developed by Chenghao Optoelectronics specifically for 86 boxes. The touch screen has an effective display area of ​​2.4 inches and can display 240*320 pixel color images. It supports SPI, MCU, RGB and other interfaces to communicate with external devices. The display uses IPS/Transmissive/normally black display mode and supports 80/80/80/80 free viewing angles.

In terms of touch function, the LCD touch screen adopts a capacitive touch glass cover design with a thickness of only 1.1mm and has a sensitive screen touch sensing function.
The display has a service life of up to 30,000 hours and excellent stability. It can run smoothly in an environment of -20~+70℃, complies with RoHS standards, and is halogen-free.

Features:

CH240QV52A-CTD is a small-size LCD touch screen module that has been specially designed for home appliances. This module is tailored to meet the specific requirements of users. The CH240QV52A-CTD has a lot of features that make it an ideal choice for customers looking for a high-quality LCD touch screen module.

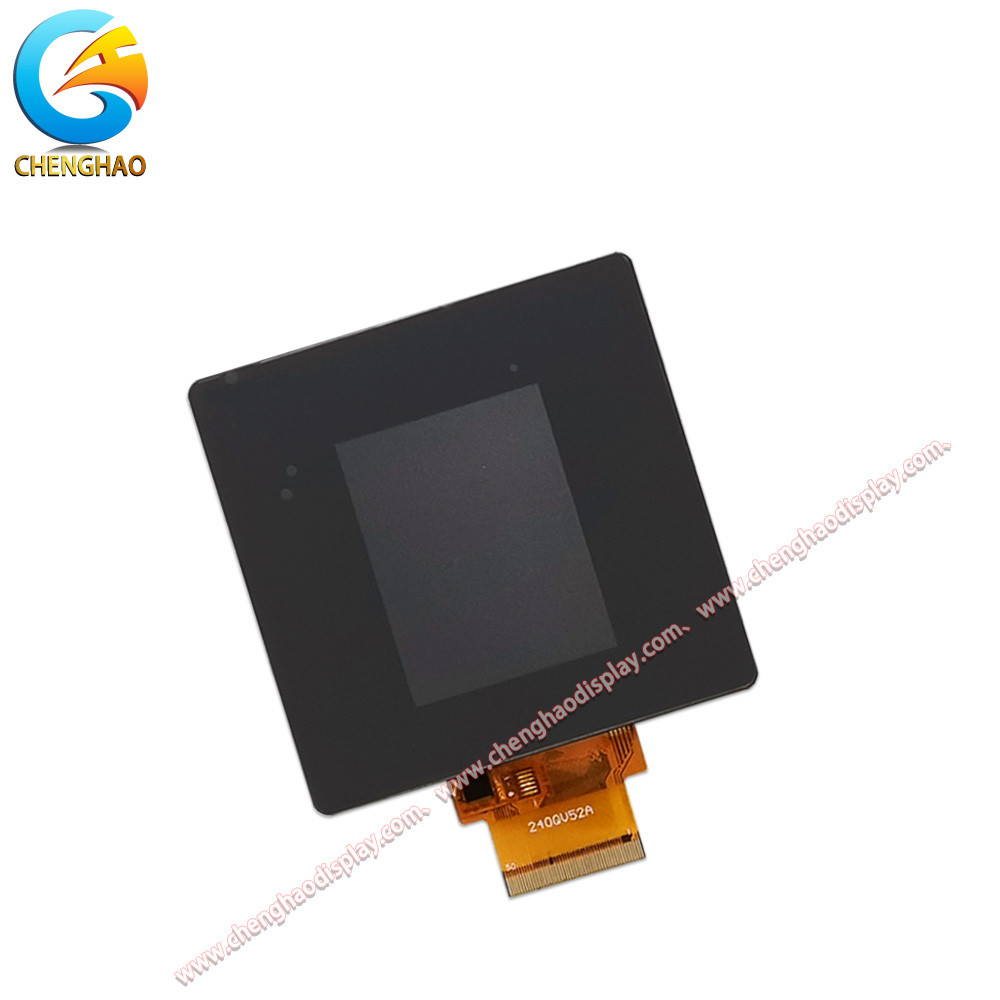

One of the unique features of the CH240QV52A-CTD is its customized appearance. Chenghao Optoelectronic has designed a square touch glass cover that fits seamlessly on the customer's 86-box device. The black glass cover has a thickness of 1.1 mm and is based on the equipment parameters provided by the customer. With this customized glass cover, the CH240QV52A-CTD looks aesthetically pleasing and merges perfectly with the device.

The LCD touch screen module has been designed to support a wide temperature environment. It can operate stably in a wide temperature range between -20℃ and +70℃. It adapts to many application environments with a large temperature difference between day and night. This feature ensures that the module remains operational irrespective of the environmental conditions it's exposed to.

In order to meet the customer's needs for human-computer interaction of the device, we have installed a capacitive touch sensing panel for this display module. The touch panel can communicate and interconnect with the customer's 86-box device through the I2C interface. This feature enhances the user's experience by providing a seamless interface with the device.

Technical Parameters:

Customization

CH240QV52A-CT is a customized LCD display module. This display module can be modified and customized strictly according to customer requirements. The supported customization contents include but are not limited to the following:
(1) Modify the backlight brightness;
(2) Customize the LCD interface (SPI/MCU/RGB/MIPI/LVDS/HDMI and other interfaces are optional);
(3) Customize the shape and structure of the FPC;
(4) Remove or replace the touch sensor panel;
(5) Design a customized glass cover;
(6) Anti-glare screen;
(7) Punch holes;
(8) Silk screen printing;
...

FAQ:

Q: What is the brand name of this small LCD touch screen?
A: The brand name of this small LCD touch screen is Chenghao Optoelectronic.

Q: What is the model number of this small LCD touch screen?
A: The model number of this small LCD touch screen is CH240QV52A-CTD.

Q: Where is this small LCD touch screen manufactured?
A: This small LCD touch screen is manufactured in Shenzhen, China.

Q: What certifications does this small LCD touch screen have?
A: This small LCD touch screen is certified with RoHS, CE, and FCC.

Q: What is the minimum order quantity for this small LCD touch screen?
A: The minimum order quantity for this small LCD touch screen is 100 pcs.

Q: What is the delivery time for this small LCD touch screen?
A: The delivery time for this small LCD touch screen is 3~7 days.

Q: What are the payment terms for this small LCD touch screen?
A: The payment terms for this small LCD touch screen are TT.

Q: What is the supply ability for this small LCD touch screen?
A: The supply ability for this small LCD touch screen is 300K pcs/month.

Q: What is the packaging details for this small LCD touch screen?
A: All the products are packed in the right way to keep it safe. For small sizes of products, we use tray + carton, for bigger sizes we use foam slot + carton. We also design packages according to customers' requirements.
