Lcd Factory 3.5 Inch Custom Small Tft Lcd Display With Capacitive Touch
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | No Moq | Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements |
|---|---|---|---|
| Delivery Time : | 3~7 Days | Payment Terms : | TT or Others |
| Supply Ability : | 20000000 pcs/month |
| Place of Origin: | China，Shenzhen | Brand Name: | Chenghao Optoelectronic |
|---|---|---|---|
| Certification: | CE 、RoHS、FCC | Model Number: | CH686HD02A-CT |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Product Name: | HD TFT Lcd Display | Module Size: | 181*69.5*6.5 Mm |
|---|---|---|---|
| Lcd Interface: | MIPI | Touch Panel Transmittance: | ≥87% |
| Backlight Type: | 12 White LED | Touch Panel Type: | IIC |
| Display Mode: | IPS / Transmissive / Normally Black | Touch Panel Thickness: | 1.1 Mm |
| Touch Panel Cover Hardness: | 6H | ||
| Highlight: | Long Strip TFT Lcd Display,40 pins TFT Lcd Display,1280x480 TFT Lcd Display |
||
Product Description

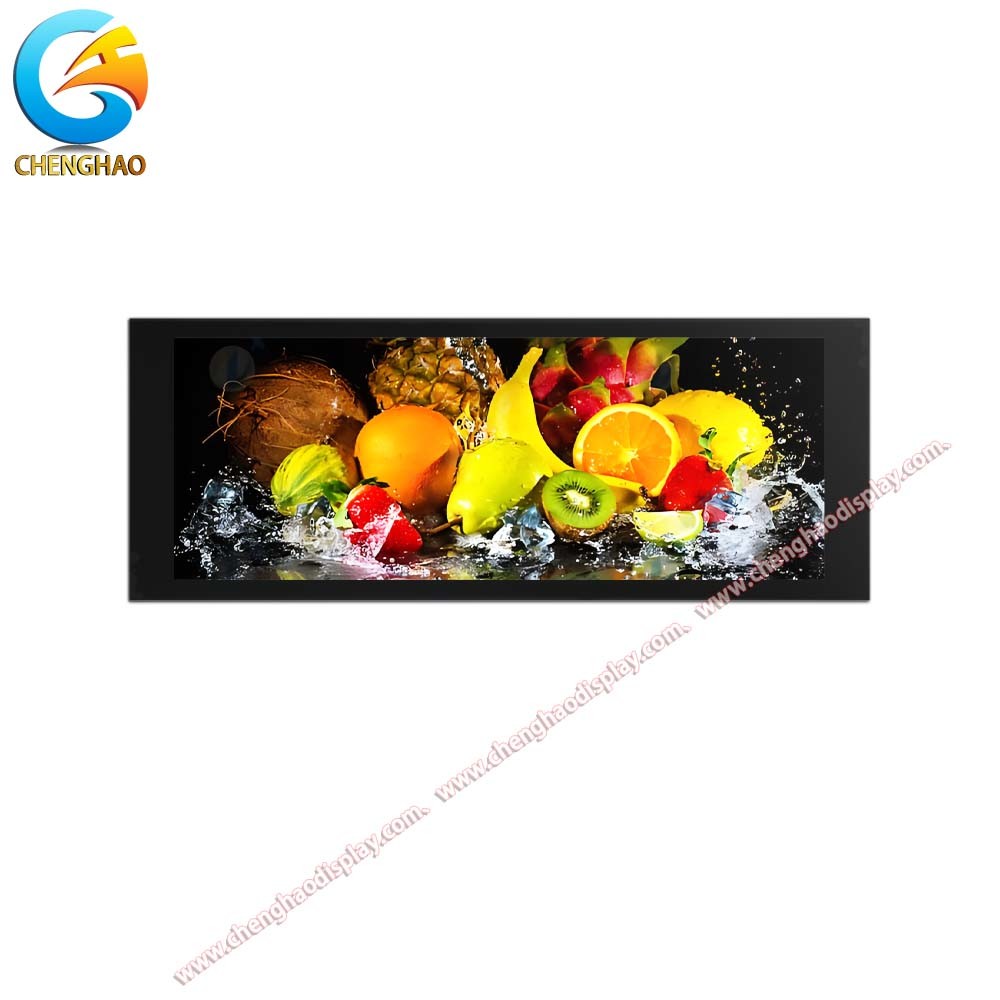

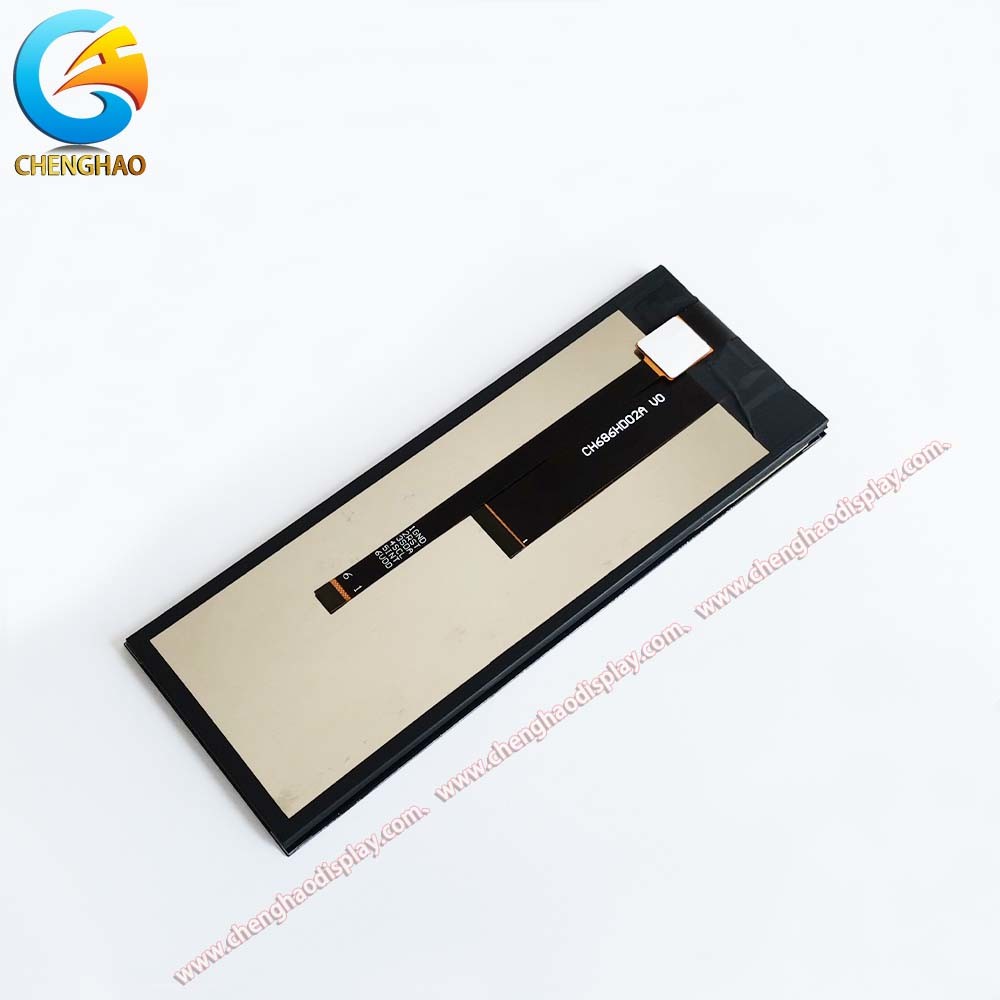

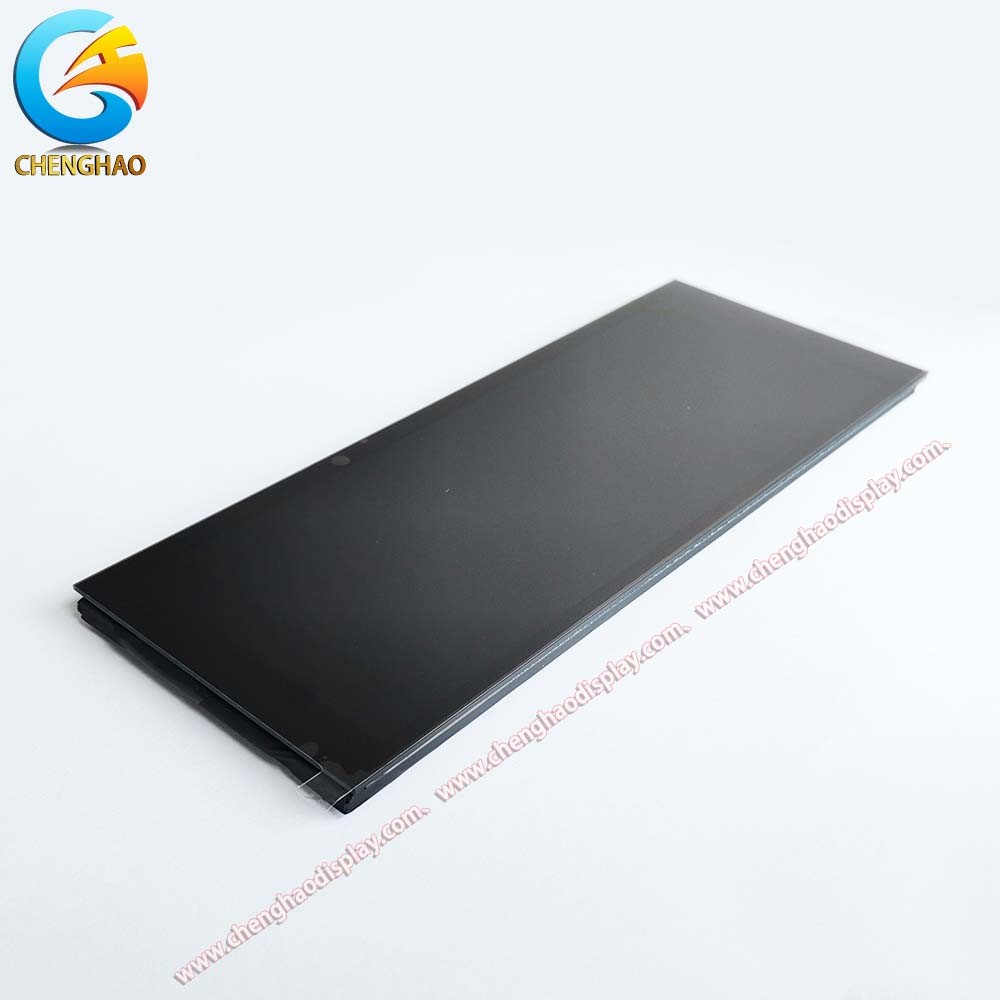

Chenghao Optoelectronic CH686HD02A-CT is a medium-sized capacitive color touch screen display module. It features a display area of 6.86 inches with a display resolution of 1280*480 and 16M colors. The display module uses IPS/Transmissive/Normally Black display mode with a viewing angle of 85/85/85/85, and it communicates with external devices through MIPI interface. The appearance size of the display module is 181*65.6*6.6mm.
The display module uses 12 LED beads embedded backlight component as its light source, which can produce white light with a luminance of up to 500 cd/m2. This design ensures clear display even in normal intensity sunlight.
|
To meet the customers' demand for touch sensing of display modules, we installed a black touch glass cover with capacitive touch sensing. This cover is 1.65 mm thick and has an embedded GT911 driver IC, which uses an I2C interface. The cover operates normally with an input voltage of 2.8~3.3v and has a light transmittance of over 87%.
The 6.86-inch full color LCD touchscreen display is designed to operate stably for a long time in temperature environments ranging from -20 ~ +70 degrees Celsius. When the power is off, it can be stored in an environment of -30 ~ +80 degrees Celsius.
Finally, it's good to know that this touch screen module is RoHS-compliant and halogen-free, making it environmentally friendly.
Chenghao Optoelectronic CH686HD02A-CT is a car-grade touch screen display module with a unique long strip appearance, and it also has many excellent features to offer.
|
| Product Attribute | Value |
| Product Name | Thin Film Transistor Capacitive Touchscreen |
| Touch LCD Module | Yes |
| Touch TFT | Yes |
| FPC Pin Number | 40 pins |
| Storage Temperature | -30 ~ +80℃ |
| Touch Panel Thickness | 1.1 mm |
| Backlight Brightness | 500 Cd/m2 |
| Module Size | 181 x 69.5 x 6.5 mm |
| Touch Panel Type | IIC |
| LCD Interface | MIPI |
| Resolution | 1280 x 480 dots |
| Contrast | 800:1 |
| Touch Panel Operating Voltage | 2.8 ~ 3.3 V |
Chenghao Optoelectronic CH686HD02A-CT is a medium-sized LCD touch screen display module. The most notable appearance feature of this touch screen module is its unique long strip design. This design breaks the limitations of traditional rectangular screens and uses long strips to. This unique shape enables it to adapt to more special installation environments and application scenarios.
(1) In commercial places, long strip displays can be installed along the door frames and counter edges of shops, which not only does not take up too much space, but also can be cleverly integrated into the environment to form a unique visual display effect;
(2) Long strip displays also have significant advantages in visual effects. Its high definition and long life make it widely used in medical, industrial control and other fields. For example, in medical equipment, long strip displays can display patients' physiological data and diagnostic results in real time. Their high definition and stability are very suitable for such applications.
(3) In the field of industrial control, long strip displays are used to display various parameters and data, and their high definition and long life are also very suitable.
(4) In the field of automobile manufacturing, long strip displays can be better integrated into various components of the car, allowing the narrow interior space of the car to be fully utilized. For example, a long strip display can be placed on a car's odometer or center console to display corresponding vehicle information.
Q: What is the brand name of this product?
A: The brand name of this product is Chenghao Optoelectronic.
Q: What is the model number of this product?
A: The model number of this product is CH686HD02A-CT.
Q: Where is this product manufactured?
A: This product is manufactured in China, specifically in Shenzhen.
Q: What certifications does this product have?
A: This product has the CE, RoHS, and FCC certifications.
Q: What are the packaging details for this product?
A: All the products are packed in the right way to keep them safe. For small sizes of products, we use tray + carton. For bigger sizes, we use foam slot + carton. We can also design packages according to customers' requirements.
Q: What payment terms are accepted for this product?
A: We accept TT (telegraphic transfer) or other payment terms.
Q: Is there a minimum order quantity for this product?
A: No, there is no minimum order quantity for this product.
Q: What is the delivery time for this product?
A: The delivery time for this product is 3 to 7 days.
Q: What is the supply ability for this product?
A: The supply ability for this product is 20,000,000 pcs/month.
