MIPI TFT LCD Display 6.86inch 1280 480 Widescreen Capacitive Touch For Medical Devices

Product Description:

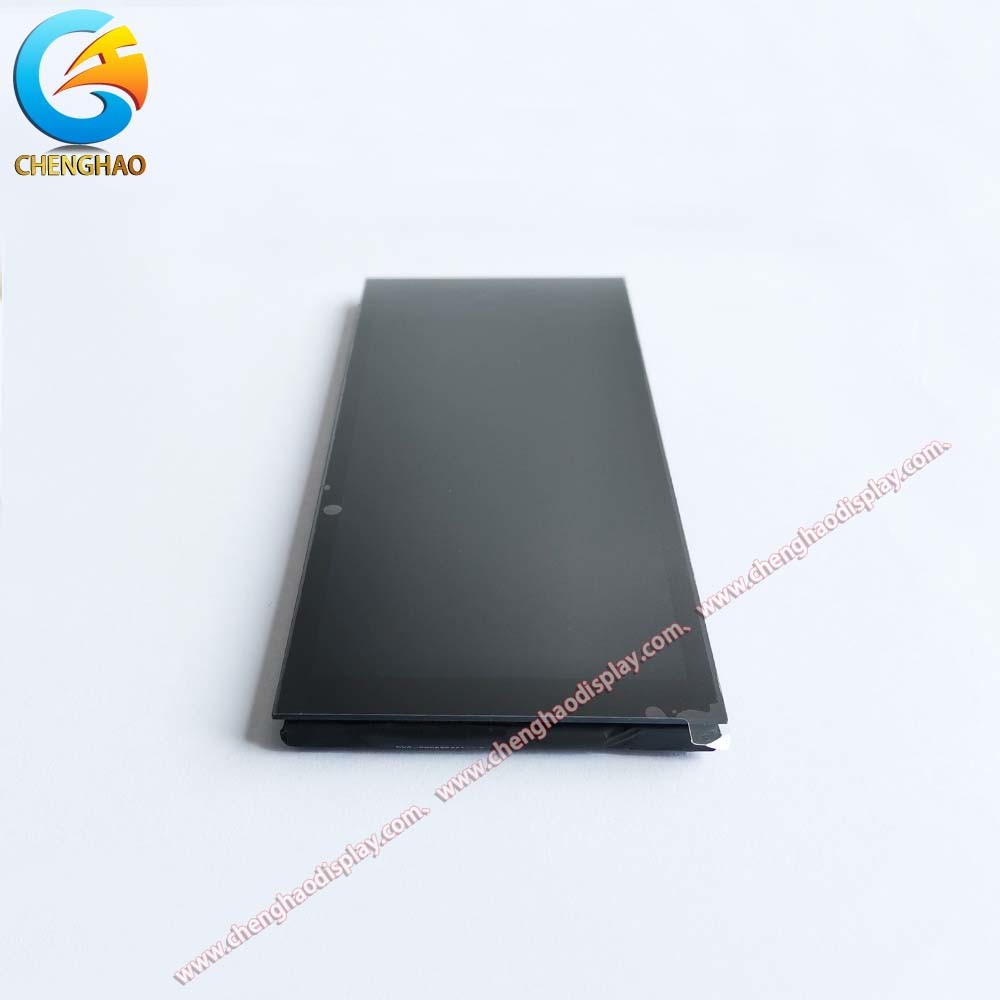

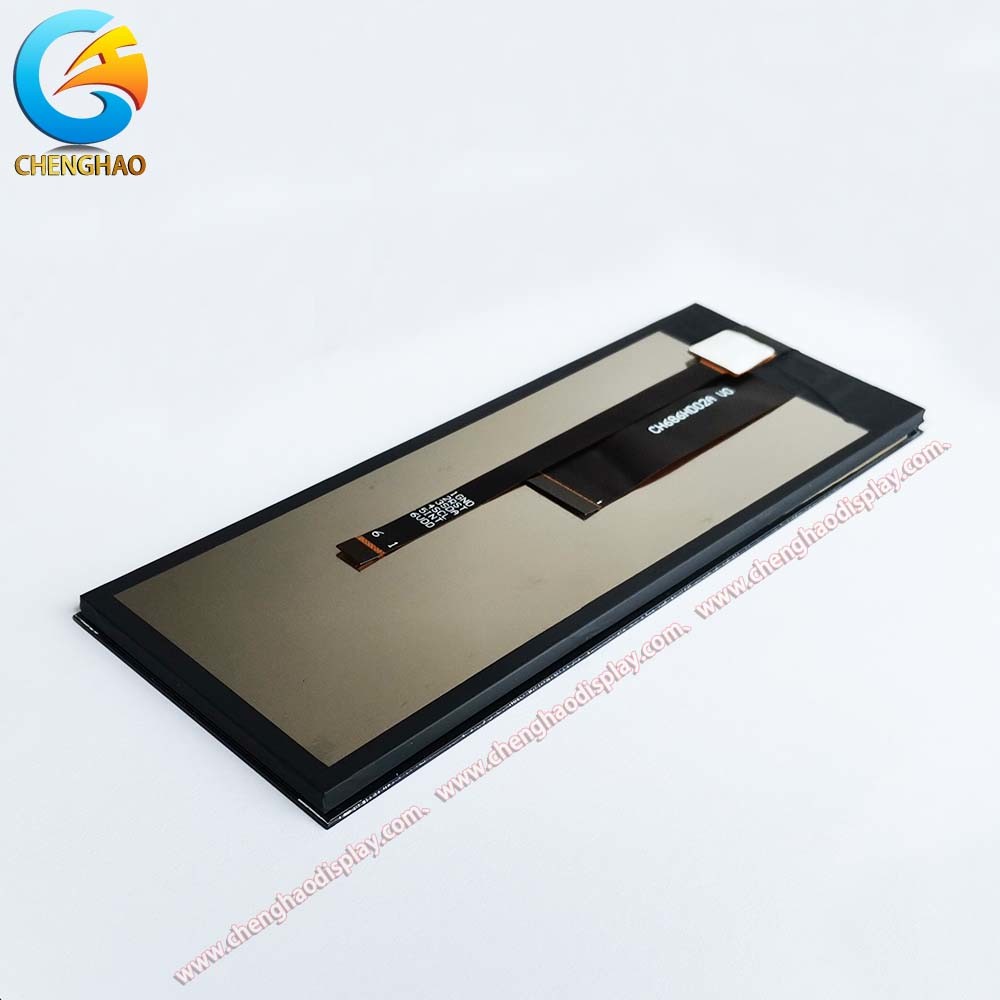

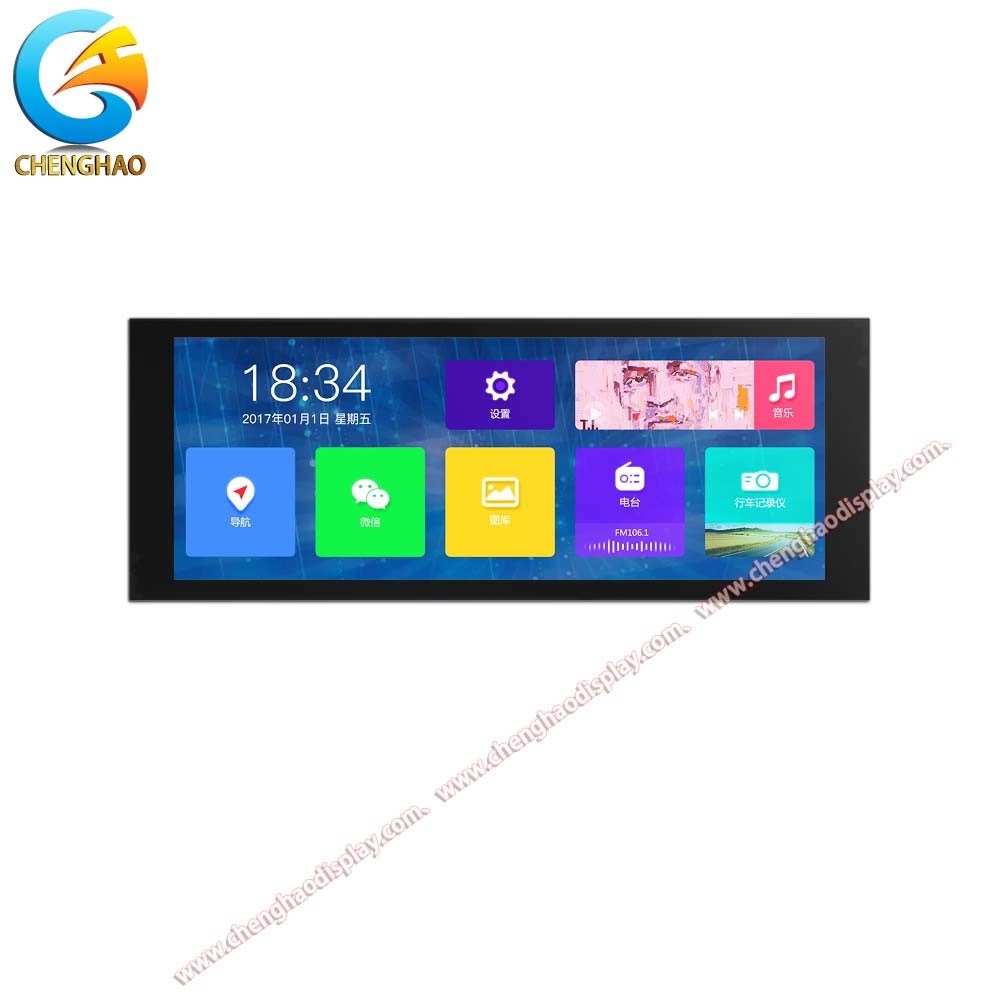

		Chenghao Optoelectronics launched the CH686HD02A-CT medium-sized capacitive color touch screen display module. This advanced display module has an appearance size of 181*65.6*6.6mm, a display area size of 6.86 inches, a resolution of 1280*480, and can output 16 million color images. It adopts IPS/Transmissive/Normally Black display mode, the best viewing angle is 85/85/85/85, and uses MIPI interface to communicate with external devices, with smooth and efficient performance. The display module is equipped with a backlight component, with 12 LED lamp beads embedded as light sources, which can produce white light, with a brightness output of up to 500 cd/m2, and can also display clearly under normal sunlight.
Display screen touch sensing has become an important way of human-computer interaction. Chenghao is well aware of this, so it installed a black touch glass cover with capacitive touch sensing function to meet customer needs for touch sensing. The cover is 1.65 mm thick and has a light transmittance of more than 87%. It also features an embedded GT911 driver IC that uses an I2C interface to communicate with external devices. The module has an input voltage of 2.8~3.3v. To ensure that the touchscreen module remains stable at different temperatures, Chenghao designed this display module to operate stably in an environment of -20 ~ +70 degrees Celsius. In addition, when the power is off, the module can be conveniently stored in an environment of -30 ~ +80 degrees Celsius.

Finally, for ecological reasons, manufacturers must comply with regulations, and Chenghao is well aware of this. That is why this touchscreen display module is RoHS compliant and halogen-free.

Features:

The Chenghao Optoelectronic CH686HD02A-CT is a touch screen display module suitable for car-grade use. It has a unique long strip appearance that makes it stand out from other display modules and it has many excellent features that make it an ideal choice for various applications.

The CH686HD02A-CT display module has a 16M color performance and a resolution of 1280*480 that enables it to output color videos or images with high-definition resolution. This feature makes it highly suitable for video or image-related applications.

The CH686HD02A-CT has a design of 500 cd/m2 luminance backlight that offers excellent sunlight readability in most outdoor environments. This feature makes it easy for users to view the display even in bright sunlight conditions.

The capacitive touch panel combined with the GT911 driver IC enables the CH686HD02A-CT display module to be touch sensitive and fast, supporting multi-touch. This feature makes it easy for users to interact with the display in a fast and efficient manner.

The CH686HD02A-CT display module uses an IPS/Transmissive/normally black display mode that expands the viewing angle of the display screen to 85/85/85/85. This means that users can get a good viewing experience when watching the screen from any angle.

The display module has a wide temperature resistance design that allows it to operate stably in an environment of -20~+70℃. This design makes it suitable for various working conditions with rapid temperature changes, expanding the application range of the display module while also improving its durability.

Technical Parameters:

Applications:

The Chenghao Optoelectronic CH686HD02A-CT is a medium-sized LCD touch screen display module that boasts a unique long strip design. Unlike traditional rectangular screens, this long strip design allows for more versatile installation environments and application scenarios.

One potential application for this design is in commercial spaces, where long strip displays can be installed along door frames or counter edges to create a unique visual display effect without taking up too much space. Long strip displays are also highly versatile and can be integrated into a variety of environments.

In addition to their appearance, long strip displays offer significant advantages in terms of visual effects. Their high definition and long life make them ideal for use in medical and industrial control settings. In medical equipment, long strip displays can be used to display patients' physiological data and diagnostic results in real time, while their high definition and stability make them an excellent choice for industrial control applications.

Long strip displays are also well-suited for use in automobile manufacturing, where their unique shape allows them to be integrated into various components of the vehicle. For example, they can be placed on the odometer or center console to display important vehicle information.

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is Chenghao Optoelectronic.

Q: What is the model number of this product?

A: The model number of this product is CH686HD02A-CT.

Q: Where is this product manufactured?

A: This product is manufactured in China, Shenzhen.

Q: What certifications does this product have?

A: This product has CE, RoHS, and FCC certifications.

Q: What is the minimum order quantity for this product?

A: There is no MOQ (minimum order quantity) for this product.

Q: How is this product packaged?

A: All the products are packed in the right way to keep it safe. For small sizes of products we use tray + carton, for bigger sizes we use foam slot + carton. We also design packages according to customers' requirements.

Q: What is the delivery time for this product?

A: The delivery time for this product is 3~7 days.

Q: What are the payment terms for this product?

A: The payment terms for this product are TT or others.

Q: What is the supply ability for this product?

A: The supply ability for this product is 20000000 pcs/month.
