Lcd Factory 3.5 Inch Custom Small Tft Lcd Display With Capacitive Touch
Contact Person : Tina Fu
Phone Number : +86 755-27806536
WhatsAPP : +8615919862398
| Minimum Order Quantity : | No Moq | Packaging Details : | All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements |
|---|---|---|---|
| Delivery Time : | 3~7 Days | Payment Terms : | TT or Others |
| Supply Ability : | 20000000 pcs/month |
| Place of Origin: | China，Shenzhen | Brand Name: | Chenghao Optoelectronic |
|---|---|---|---|
| Certification: | CE 、RoHS、FCC | Model Number: | CH686HD02A-CT |
| Document: | Product Brochure PDF |
|
Detail Information |
|||
| Product Name: | 6.86 Inch Widescreen Tft Display | Active Area Size: | 160.6*60.2 Mm |
|---|---|---|---|
| FPC Pin Number: | 40pins | Resolution: | 1280x480 Dots |
| Touch Panel Operating Voltage: | 2.8~3.3 V | Backlight Brightness: | 500 Cd/m2 |
| Touch Panel Cover Hardness: | 6H | Contrast: | 800:1 |
| Color: | 16.7M | ||
| Highlight: | 1280x480 dots TFT Display,40pins mipi interface TFT Display,6.86 Inch TFT Display |
||
Product Description

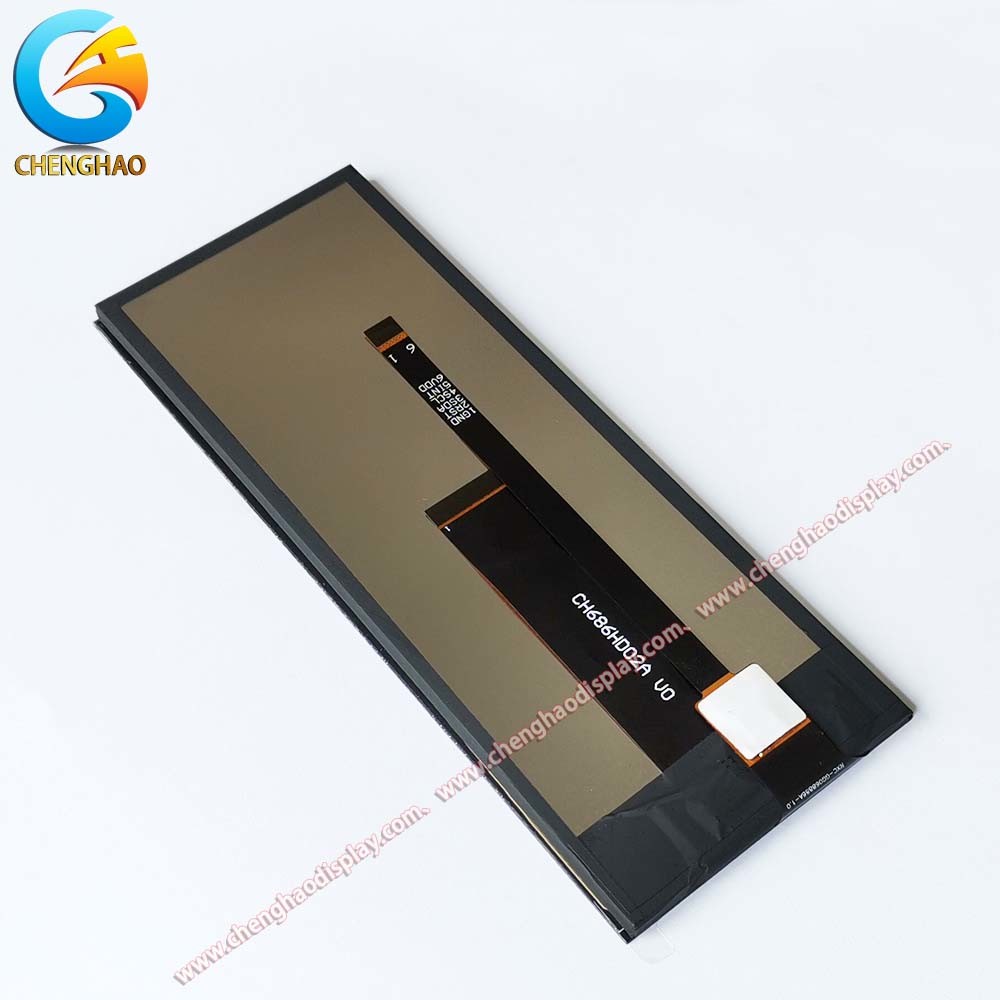

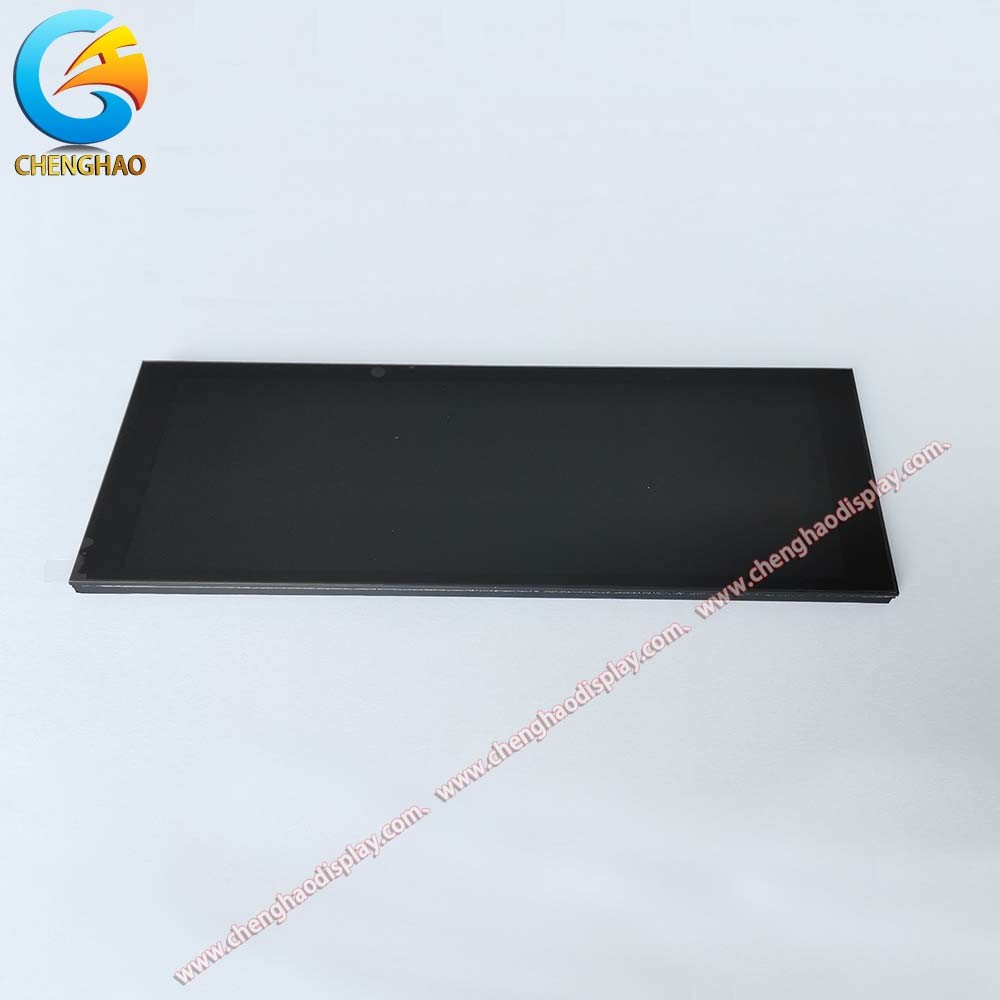

Chenghao Optoelectronic CH686HD02A-CT is a medium-sized capacitive color touch screen display module that can be used for various applications. The display module has an appearance size of 181*65.6*6.6mm and a display area size of 6.86 inches. It can output color images with 16M colors and 1280*480 resolution. The display uses IPS/Transmissive/Normally Black display mode and has the best viewing angle of 85/85/85/85 degrees. To communicate with external devices, it uses MIPI interface.
The display module uses a backlight component with 12 LED beads embedded as its light source. The backlight component can produce white light with up to 500 cd/m2 luminance, which enables the display to display clearly even under normal intensity sunlight.
|
In order to meet customers' demand for touch sensing of display modules, we installed a black touch glass cover with capacitive touch sensing for this display module. This cover is 1.65 mm thick, with a light transmittance of over 87%. It has an embedded GT911 driver IC using an I2C interface and can operate normally with an input voltage of 2.8~3.3v.
This 6.86-inch full-color LCD touchscreen display module also adopts a wide temperature design, which makes it suitable for long-term operation in an environment of -20 ~ +70 degrees Celsius. When the power is off, it can be stored normally in an environment of -30 ~ +80 degrees Celsius. |
|
Finally, it is important to note that this touch screen module is RoHS-compliant and halogen-free, which means that it is environmentally friendly and safe to use.
The Chenghao Optoelectronic CH686HD02A-CT display module is a specially designed car-grade touch screen display module with a unique long strip appearance and many excellent features.
This display module has a performance of 16M colors and 1280*480 resolution, which enables it to output color videos or images with high-definition resolution.
To ensure good sunlight readability in general outdoor environments, the display module has a design of 500 cd/m2 luminance backlight.
The capacitive touch panel is combined with the GT911 driver IC to make this display module touch sensitive and fast, supporting multi-touch as well.
The use of IPS/Transmissive/normally black display mode expands the viewing angle of the display screen to 85/85/85/85, which means that users can get a good viewing experience when watching the screen from different viewing angles.
The display module as a whole adopts a wide temperature resistance design and can operate stably in an environment of -20~+70℃. This design allows the display module to better cope with various working conditions with rapid temperature changes, expanding the application range of the display module while also greatly improving the durability of the display module.
| Product Attribute | Value |
| Product Name | Thin Film Transistor Capacitive Touchscreen |
| Backlight Type | 12 White LED |
| Backlight Brightness | 500 Cd/m2 |
| Touch Panel Thickness | 1.1 Mm |
| Module Size | 181*69.5*6.5 Mm |
| Display Mode | IPS / Transmissive / Normally Black |
| Operating Temperature | -20 ~ +70℃ |
| FPC Pin Number | 40pins |
| Storage Temperature | -30 ~ +80℃ |
| Viewing Direction | 85/85/85/85 |
| Resolution | 1280x480 Dots |
| Product Name | Thin-Film-Transistor Liquid Crystal Capacitive Screen |
| Product Name | Touch TFT LCD |

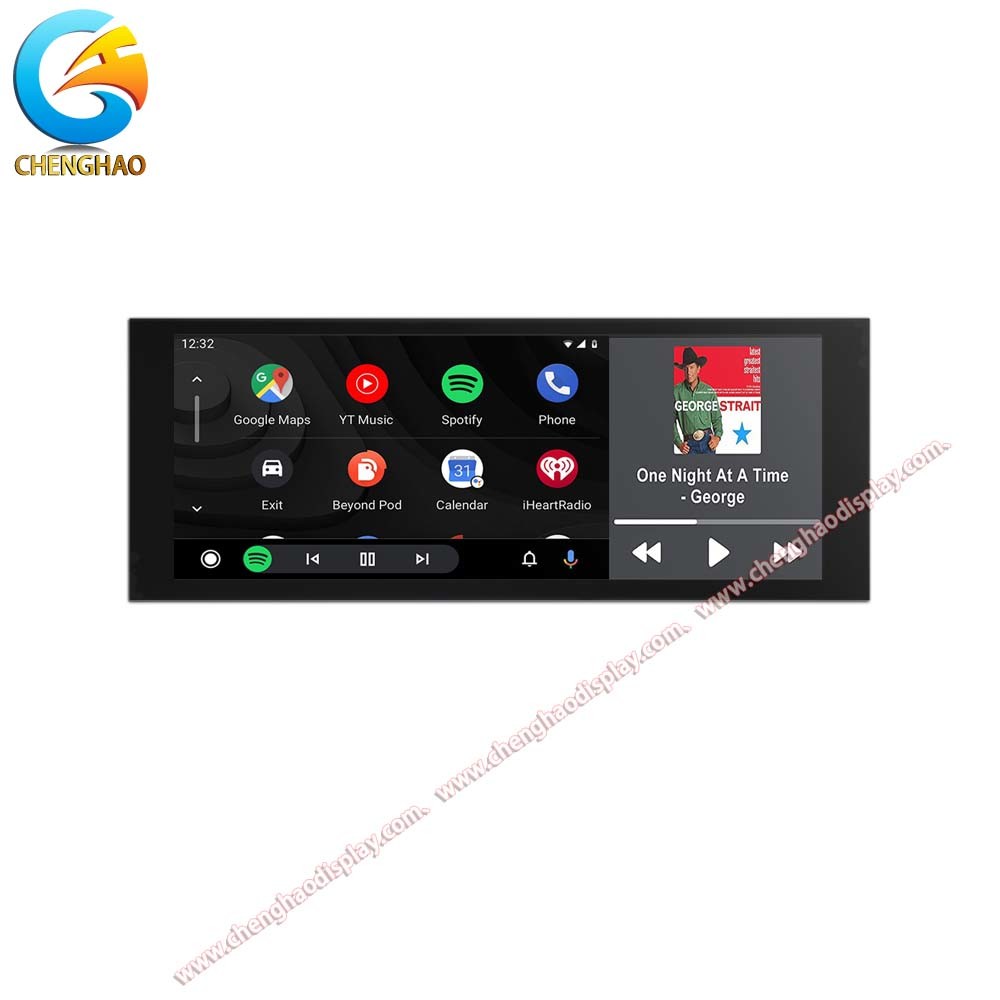

Chenghao Optoelectronic CH686HD02A-CT is a medium-sized LCD touch screen display module. The most notable appearance feature of this touch screen module is its unique long strip design. This design breaks the limitations of traditional rectangular screens and uses long strips to
This unique shape enables it to adapt to more special installation environments and application scenarios.
In commercial places, long strip displays can be installed along the door frames and counter edges of shops, which not only does not take up too much space, but also can be cleverly integrated into the environment to form a unique visual display effect;
Long strip displays also have significant advantages in visual effects. Its high definition and long life make it widely used in medical, industrial control and other fields. For example, in medical equipment, long strip displays can display patients' physiological data and diagnostic results in real time. Their high definition and stability are very suitable for such applications.
In the field of industrial control, long strip displays are used to display various parameters and data, and their high definition and long life are also very suitable.
In the field of automobile manufacturing, long strip displays can be better integrated into various components of the car, allowing the narrow interior space of the car to be fully utilized. For example, a long strip display can be placed on a car's odometer or center console to display corresponding vehicle information.
Q1: What is the brand name of this product?
A1: The brand name of this product is Chenghao Optoelectronic.
Q2: What is the model number of this product?
A2: The model number of this product is CH686HD02A-CT.
Q3: What certifications does this product have?
A3: This product has CE, RoHS, and FCC certifications.
Q4: What is the minimum order quantity for this product?
A4: There is no MOQ (minimum order quantity) for this product.
Q5: What is the delivery time for this product?
A5: The delivery time for this product is 3-7 days.
