2.8 Inch IPS LCD Display Module TFT LCD Capacitive Touchscreen Wide Temperature Range Durable Design

Product Description

Product Description:

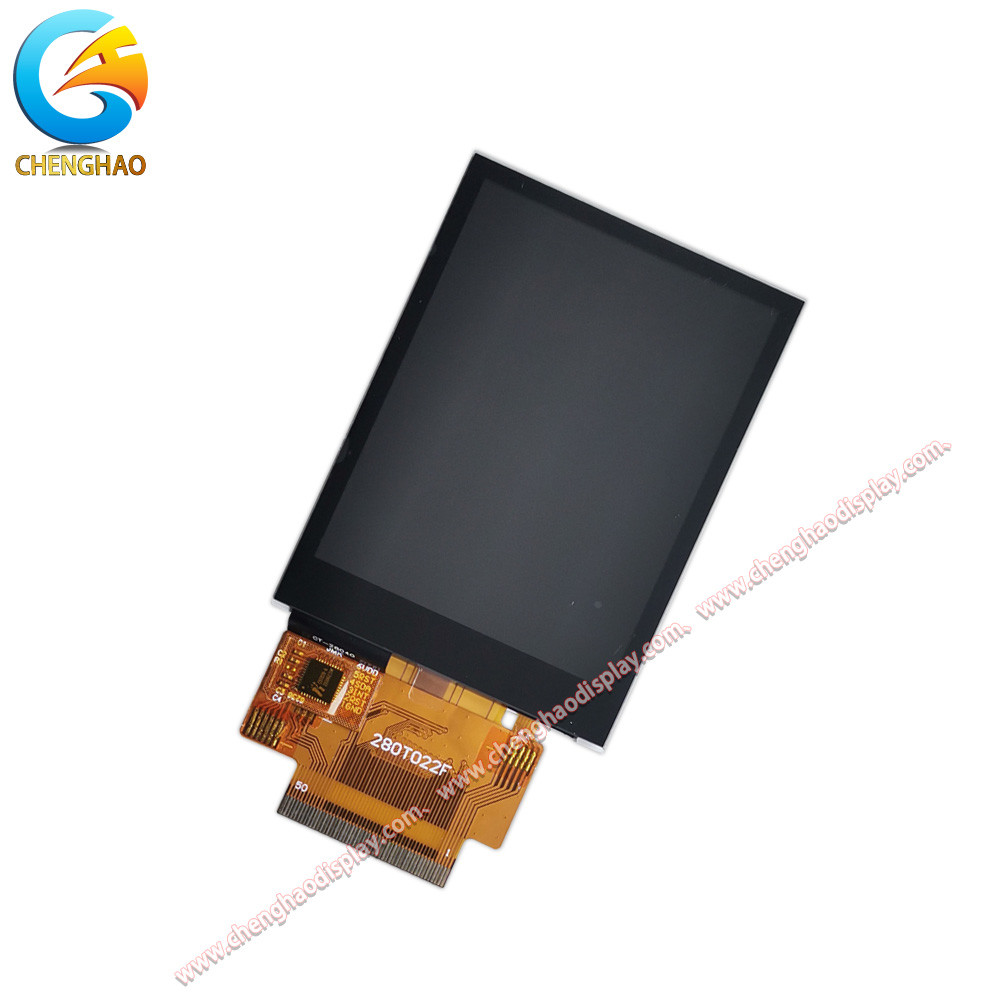

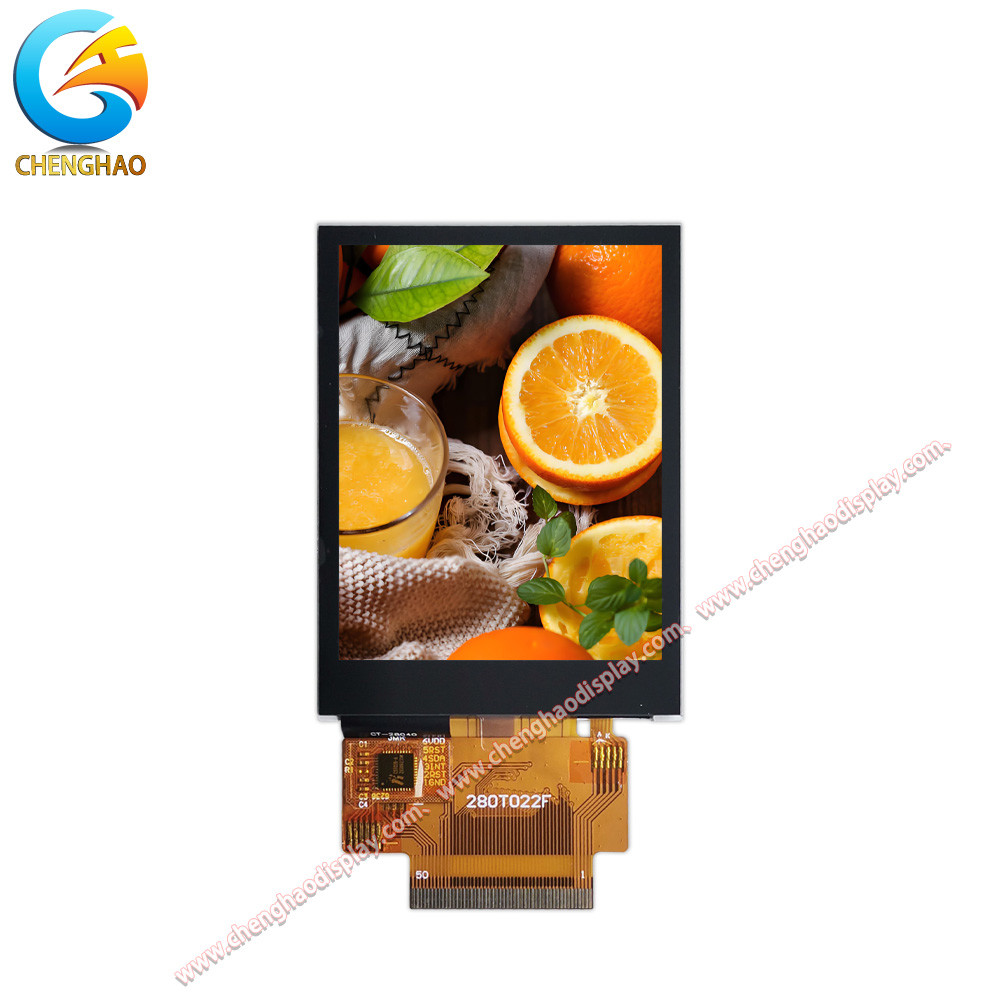

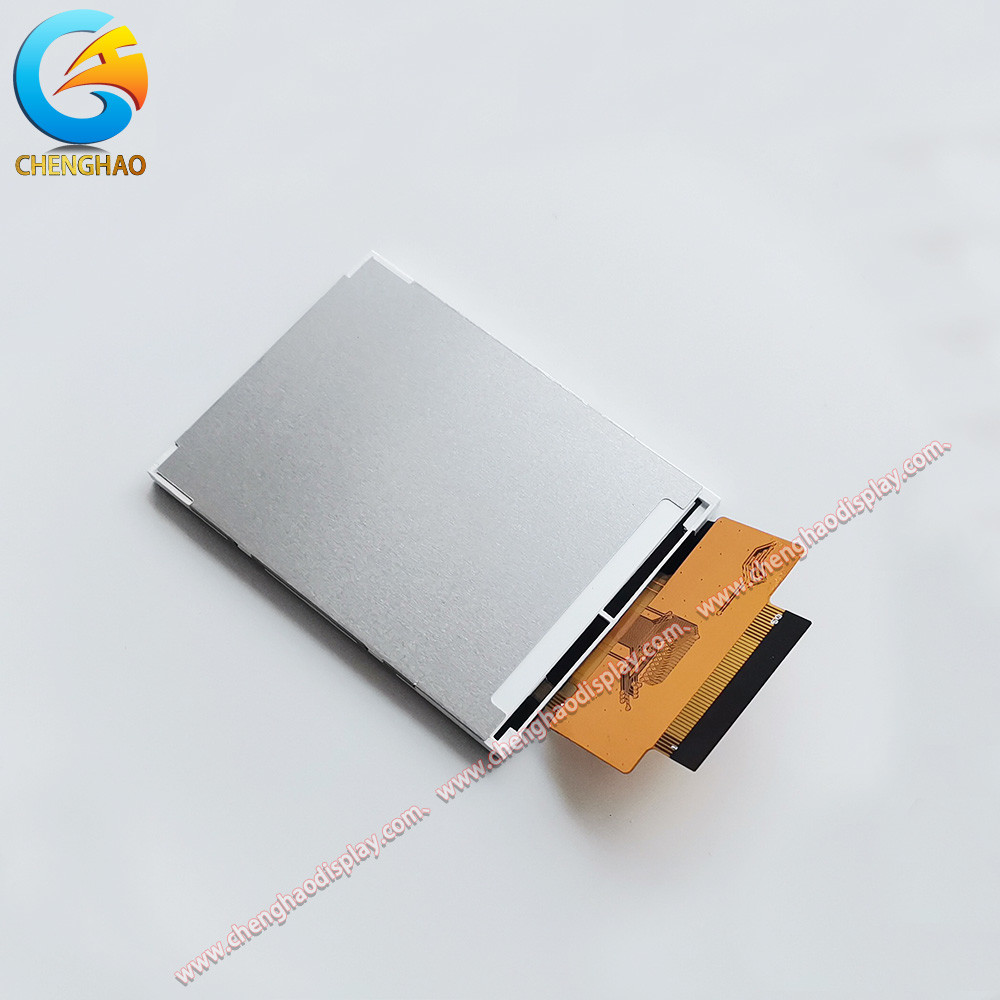

CH280QV22F-CT is a high-performance 2.8-inch IPS TFT LCD touch display module designed for a variety of application scenarios. The module has a resolution of 240x320 and can provide clear and delicate image display. Its display mode is IPS/transmissive/normally black, and supports 80/80/80/80 free viewing angles, ensuring excellent color performance and viewing angle stability at different angles. The module brightness is 300 cd/m², and it supports modification and customization, making it suitable for use indoors or in various low-light conditions.
		The display module has an external size of 50*69.2*4 mm and an active area of ​​43.2*57.6 mm, which is suitable for integration in compact devices. CH280QV22F-CT supports SPI, RGB, and MCU interfaces for easy connection with other devices. At the same time, the module is equipped with a capacitive touch panel and the touch interface is I2C, which enhances the user interaction experience.
In terms of environmental adaptability, the operating temperature range of CH280QV22F-CT is -20℃ to +70℃, and the storage temperature range is -30℃ to +80℃, ensuring its stable operation in various industrial and outdoor environments.



Features:

Key Features of CH280QV22F-CT

Display Size: The module features a 2.8-inch display , making it suitable for various compact devices.

Resolution: It has a resolution of 240x320 pixels , providing clear image display.

Display Mode: The module utilizes an IPS/transmissive/normally black display mode, ensuring excellent color performance from different viewing angles.

Brightness: With a brightness level of 300 cd/m² , it is effective in various lighting conditions.

Interface Types: The module supports SPI, RGB, and MCU interfaces , facilitating easy connections with other devices.

Touch Panel: It is equipped with a capacitive touch panel , and the touch interface is I2C , enhancing user interaction.

Operating Temperature Range: The module operates reliably within a temperature range of -20℃ to +70℃ , suitable for various industrial and outdoor environments.

Storage Temperature Range: It has a storage temperature range of -30℃ to +80℃ , ensuring reliability under extreme conditions.

Customization Services: Customization options are available based on customer requirements, including adjustments to the shape of the FPC and interface types.

Wide Applications: The module can be widely used in industrial control , smart home applications , medical devices , and Internet of Things equipment , meeting diverse customer needs.

These features make the CH280QV22F-CT a powerful and versatile display module , suitable for a range of application scenarios.



Technical Parameters:

Resolution	240*320 Dots
Display Mode	IPS /transmissive/ Normally Black
Viewing Direction	80/80/80/80
Brightness	300 Cd/m2
Operating Temperature	-20 ~ +70 ℃
Storage Temperature	-30 ~ +80 ℃
Touch Panel Type	Capacitive
Touch Panel Interface	I2C
LCD Interface	SPI+RGB+MCU





Applications:

The CH280QV22F-CT display module, known for its exceptional performance and versatile design, is extensively utilized in various fields to cater to diverse customer requirements. Here are the primary application areas for this product:

Industrial Control: This module can be employed in the display interfaces of industrial equipment like monitoring systems, control panels, and data acquisition devices, enabling operators to monitor and control production processes in real-time.

Smart Home: In smart home devices, the CH280QV22F-CT can function as a control panel, showcasing home status, temperature adjustments, lighting controls, and enhancing the user experience in residential settings.

Medical Equipment: This display module is ideal for medical instruments such as heart rate monitors and blood glucose meters, offering clear visibility of critical health data to aid both doctors and patients in effective health management.

Instrumentation: In various measurement and testing devices, the CH280QV22F-CT can provide real-time data and graphical displays, ensuring users can accurately read and analyze information.

Artificial Intelligence Devices: This module can be integrated into smart robots and other AI devices, supporting human-machine interaction and enhancing the intelligence of the equipment.

Internet of Things (IoT) Devices: Excelling in IoT applications, the CH280QV22F-CT connects with sensors and controllers to display data and status in real-time, thereby enhancing the smart functionalities of devices.

Vehicle-Mounted Applications: The module is suitable for use in vehicle display systems like navigation devices and in-car infotainment systems, providing clear visual information that enhances driving safety and convenience.

Consumer Electronics: In consumer electronic products, the CH280QV22F-CT can be utilized in digital photo frames and portable devices, offering excellent display quality and user experience.

Security Identification Devices: This module can be applied in smart access control systems and attendance machines, assisting users in identity verification and record-keeping.

Through these diverse application areas, the CH280QV22F-CT display module showcases its significance and multifunctionality in modern technology, capable of addressing the needs and challenges of various industries.

Support and Services

The CH280QV22F-CT display module is designed to deliver superior performance while offering comprehensive support and services to enhance the customer experience. Our commitment to customer satisfaction is reflected in the following aspects:

(1) Professional technical support: Customers can rely on our technical support team for any inquiries related to the CH280QV22F-CT, and our professionals are always ready to provide solutions and guidance to ensure the smooth operation of the module.

(2) Customization options: We understand that each project may have unique requirements, so we provide a wide range of customization services for the CH280QV22F-CT. This includes modifying the FPC shape, adjusting the backlight brightness, and defining specific interface types. In addition, we can also design touch panel solutions that meet specific application requirements, allowing customers to optimize the module to suit their projects.

(3) Warranty and after-sales support: The CH280QV22F-CT comes with a one-year standard warranty that covers manufacturing defects. Our after-sales service ensures that customers can get timely assistance if they encounter any problems after purchase, further enhancing our commitment to quality and reliability.
(4) Sample availability: To help customers make informed purchasing decisions, we offer samples of the CH280QV22F-CT. This enables potential customers to evaluate the module's performance and compatibility before placing a large order.

(5) Multi-industry application guidance: The CH280QV22F-CT is suitable for multiple industries, including industrial control, smart home devices, medical devices, and Internet of Things (IoT) applications. Our team is able to provide insights and recommendations for effective implementation of the module, ensuring that customers can fully utilize its potential.

By providing comprehensive support and services, we aim to ensure that customers have a positive experience throughout the entire process of using the CH280QV22F-CT display module, from initial consultation to successful implementation and ongoing use. Our goal is to enable customers to achieve their project goals with confidence and ease.

FAQ

Q: What is the brand name of this Small LCD Touch Screen?
A: The brand name is Chenghao Optoelectronic.

Q: What is the model number of this Small LCD Touch Screen?
A: The model number is CH280QV22F-CT.

Q: Where is this Small LCD Touch Screen manufactured?
A: This product is manufactured in China Shenzhen.

Q: What certifications does this Small LCD Touch Screen have?
A: This product is RoHS, CE, and FCC certified.

Q: What is the minimum order quantity for this Small LCD Touch Screen?
A: The minimum order quantity is 100 pieces.
