Capacitive Touch Small LCD Touch Screen 4.3 Inch IPS TFT LCD Display Module

Product Description:

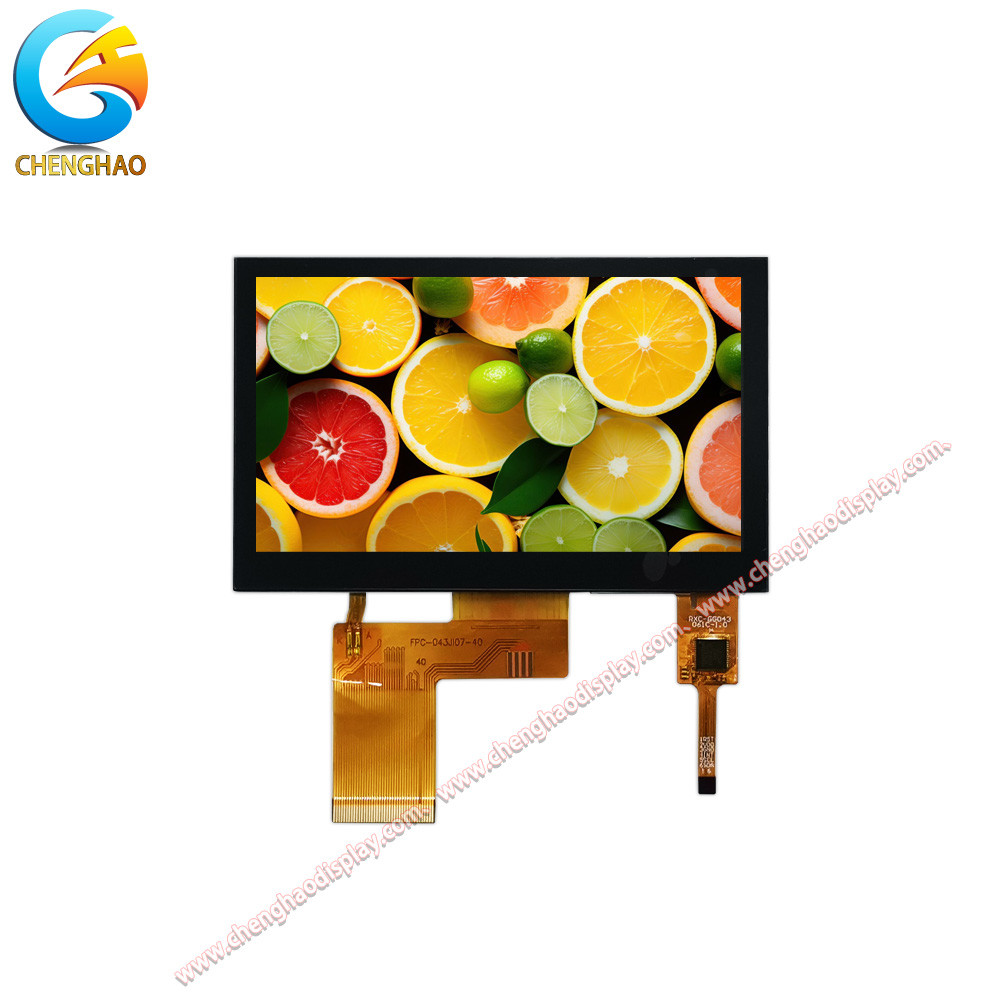

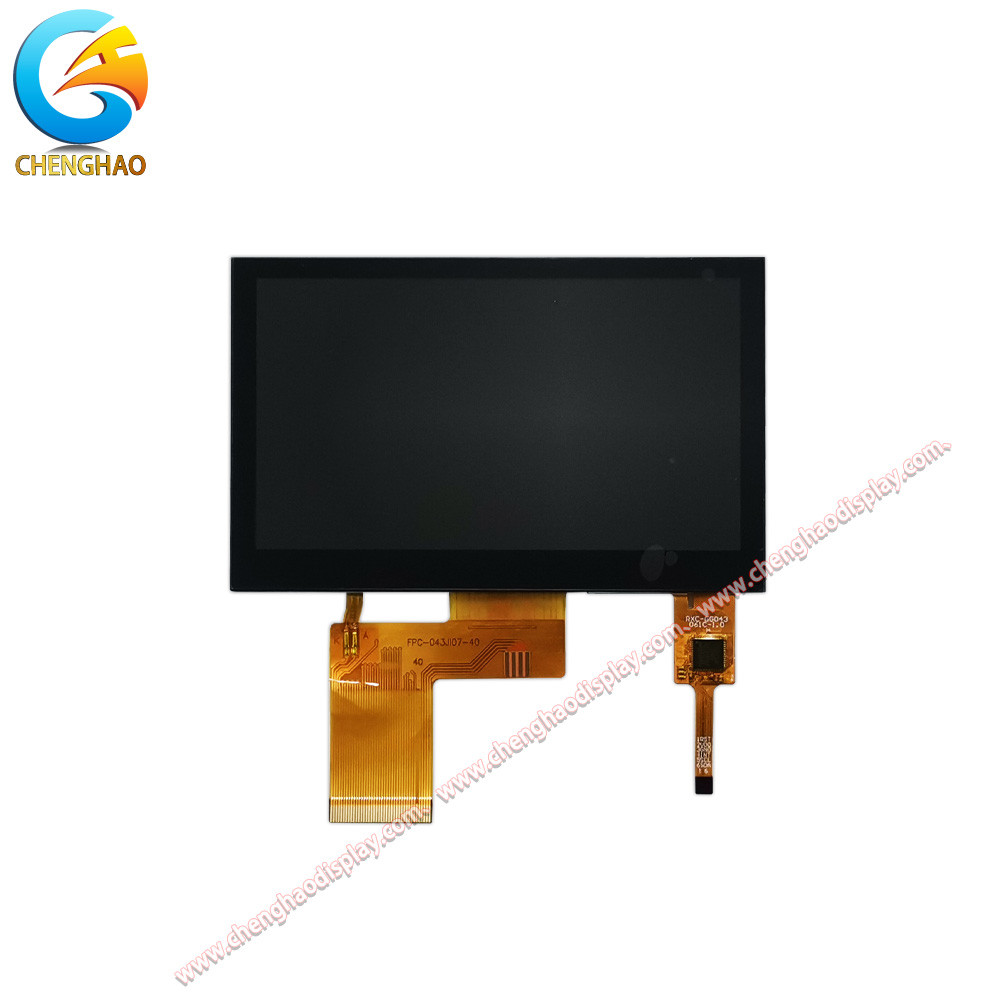

The CH430WQ12A1-CT is a 4.3-inch IPS TFT LCD module developed, manufactured, and sold by Chenghao Optoelectronic , designed to meet the needs of various industry applications. This module adopts IPS technology with a transmissive/normally black display mode, a resolution of 480x272 pixels, and supports 16M colors, ensuring clear images and vibrant colors. It offers an 80/80/80/80 viewing angle, suitable for multi-angle viewing, and a brightness of 300 cd/m², making it ideal for display requirements under various lighting conditions.

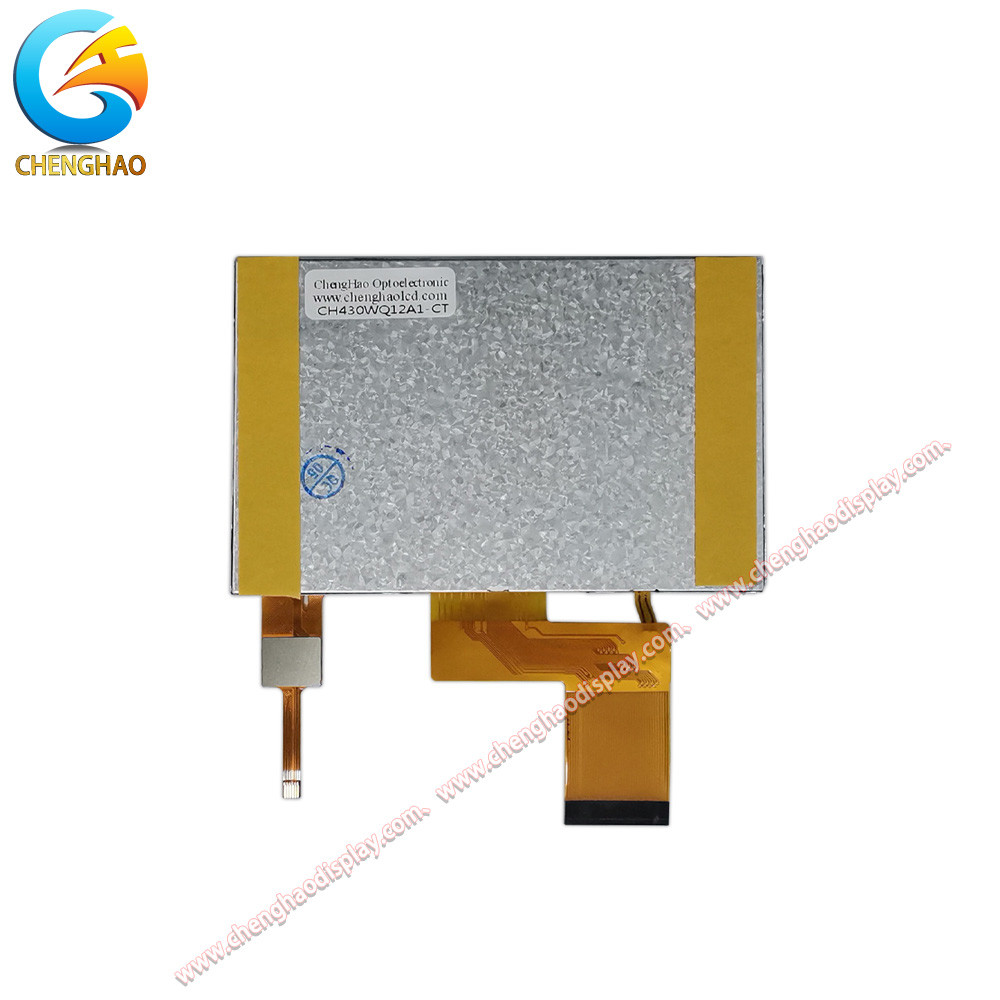

The CH430WQ12A1-CT has dimensions of 105.5*67.2*4.95 mm , a display area of 96.04*54.86 mm , and an active area of 95.04*53.86 mm . The module consists of a TFT LCD panel, a capacitive touch panel, a driver IC, a backlight, and an FPC. It supports a 24-bit parallel RGB interface and an I2C touch panel interface. Its operating temperature range is -20 to +70℃ , and its storage temperature range is -30 to +80℃ , ensuring reliable performance in harsh environments.
		This module is widely used in industrial control, smart home, medical equipment, instrumentation, artificial intelligence, IoT devices, and vehicle-mounted applications. Chenghao Optoelectronic also offers customization services, allowing adjustments to backlight brightness, modifications to the shape and structure of the FPC, defining the LCD interface, or designing a customized touch panel to meet the specific requirements of different projects.

Features:

Compact Size: The module measures 105.5 * 67.2 * 4.95 mm, making it suitable for applications with space constraints.

High Color Depth: It supports 16 million colors, providing rich and vibrant visuals for enhanced user experience.

Wide Operating Temperature Range: The module operates effectively in temperatures ranging from -20 to +70℃, ensuring reliability in various environmental conditions.

Capacitive Touch Technology: The integrated capacitive touch panel allows for responsive and intuitive user interaction.

IPS Technology: The use of IPS (In-Plane Switching) technology ensures wide viewing angles and consistent color reproduction, enhancing the overall display quality.

Customizable Options: The module can be customized according to specific project requirements, including adjustments to the backlight brightness and modifications to the FPC structure.

Versatile Applications: Ideal for use in various industries such as industrial control, smart home devices, medical equipment, and IoT applications, showcasing its adaptability.

Technical Parameters:

Applications:

The CH430WQ12A1-CT is a versatile 4.3-inch IPS TFT LCD module that finds extensive applications across various industries, catering to diverse needs.

Industrial Control: This module can be utilized in industrial control systems, providing real-time data monitoring and operational interfaces, which help users manage and control production processes effectively.

Medical Equipment: In the healthcare sector, the CH430WQ12A1-CT can be integrated into devices such as heart rate monitors and thermometers, offering a clear display interface that ensures medical personnel can quickly access critical information.

Smart Home Devices: The module is suitable for smart home applications, such as smart refrigerators and coffee machines, providing an intuitive user interface that enhances the overall user experience.

Internet of Things (IoT) Devices: In IoT applications, the CH430WQ12A1-CT can serve as a data display screen, connecting sensors and controllers to show real-time environmental data and device status.

Vehicle-Mounted Equipment: This module is ideal for use in vehicle control systems, navigation devices, and dash cameras, delivering high brightness and wide viewing angles to ensure driving safety.

Instrumentation: In various instruments and meters, the CH430WQ12A1-CT can be employed to display measurement results and operational interfaces, assisting users in precise instrument operation.

Artificial Intelligence Devices: The module can also be applied in intelligent robots and AI devices, providing a human-machine interaction interface that enhances the level of device intelligence.

Payment and Financial Devices: In payment terminals such as POS machines and ATMs, the CH430WQ12A1-CT can present clear transaction information and user operation interfaces, ensuring smooth transaction processes.

Through these application areas, it is evident that the CH430WQ12A1-CT module's flexibility and adaptability make it an ideal display solution across multiple industries.

Customization:

The CH430WQ12A1-CT is a versatile 4.3-inch IPS TFT LCD module that offers a range of customization options tailored to meet specific customer needs. Chenghao Optoelectronic is committed to providing personalized solutions that enhance the functionality and integration of the display module into various applications.

* FPC Design Modifications: One of the key customization options available is the ability to redesign the Flexible Printed Circuit (FPC). This allows customers to adjust the shape and structure of the FPC to ensure a perfect fit for their specific installation requirements. By tailoring the FPC, we can accommodate different device layouts and enhance connectivity .

* Backlight Brightness Adjustment: The brightness of the backlight can be customized to suit the operational environment of the display module. For instance, if a customer requires higher visibility in bright conditions, we can modify the backlight to achieve optimal luminance levels, ensuring that the display remains clear and readable even in direct sunlight .

* Interface Customization: The CH430WQ12A1-CT supports a 24-bit Parallel RGB interface, but we can also define other interface types based on customer requirements. This flexibility allows integration with various systems, whether they use SPI, I2C, or other communication protocols, ensuring compatibility with a wide range of applications .

* Touch Panel Solutions: For customers needing touch interaction, we offer customization of the touch panel type. The standard capacitive touch panel can be tailored in terms of glass thickness, hardness, and design to meet specific application needs. This ensures that the touch experience is seamless and responsive, enhancing user interaction with the device .

* Functionality Enhancements: We can incorporate additional features into the display module based on the intended application. This includes options for sunlight readability, anti-glare coatings, and enhanced temperature resistance, making the module suitable for various environments, from industrial control systems to medical devices .

* Packaging Customization: In addition to the module itself, we also offer customization of the packaging. This includes designing packaging that meets specific logistical requirements or branding needs, ensuring that the product arrives safely and aligns with the customer’s marketing strategy .

Through these customization options, Chenghao Optoelectronic ensures that the CH430WQ12A1-CT module can be tailored to meet the diverse needs of our clients, enhancing its applicability across various industries such as industrial control, smart home technology, medical equipment, and more. Our commitment to quality and customer satisfaction drives us to provide flexible solutions that align with project specifications and operational demands.

FAQ:

1. What are the key features of the CH430WQ12A1-CT?
The CH430WQ12A1-CT is a 4.3-inch IPS TFT LCD module featuring a resolution of 480 x 272 dots, 16 million colors, and a brightness of 300 cd/m². It supports a wide operating temperature range of -20 to +70 °C and comes with a capacitive touch panel that utilizes an I2C interface for seamless interaction .

2. What is the warranty period for the CH430WQ12A1-CT?
Chenghao Optoelectronic offers a standard warranty period of 12 months from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Customers are encouraged to review the warranty terms for specific conditions and limitations .

3. How can I obtain technical support for the CH430WQ12A1-CT?
Technical support is available through our dedicated support team. Customers can reach out via email or phone for assistance with installation, troubleshooting, or any technical inquiries related to the CH430WQ12A1-CT module. Our team is equipped to provide prompt and effective solutions .

4. Can the CH430WQ12A1-CT be customized for specific applications?
Yes, the CH430WQ12A1-CT can be customized to meet specific application requirements. Customization options include modifications to the FPC design, adjustments to backlight brightness, and interface definitions. Customers can discuss their needs with our sales team to explore available customization options .

5. What is the minimum order quantity (MOQ) for the CH430WQ12A1-CT?
The minimum order quantity for the CH430WQ12A1-CT is 100 pieces. This MOQ allows us to maintain efficient production processes while ensuring quality standards are met .

6. What industries can benefit from using the CH430WQ12A1-CT?
The CH430WQ12A1-CT is suitable for various industries, including industrial control, smart home technology, medical equipment, instrumentation, artificial intelligence, and Internet of Things (IoT) applications. Its versatility makes it an ideal choice for a wide range of projects .

7. How do I place an order for the CH430WQ12A1-CT?
Orders can be placed directly through our website or by contacting our sales team. Customers are encouraged to provide details about their requirements, including customization needs, to facilitate the ordering process .

8. What should I do if I encounter issues with the CH430WQ12A1-CT after purchase?
If you experience any issues with the CH430WQ12A1-CT, please contact our customer service team immediately. We are committed to addressing any concerns and providing solutions, whether through technical support or warranty service .

9. Is there a sample available for the CH430WQ12A1-CT?
Yes, we offer samples of the CH430WQ12A1-CT for potential customers to evaluate before making a bulk purchase. Interested parties can request a sample through our sales team .

10. What quality standards does Chenghao Optoelectronic adhere to?
Chenghao Optoelectronic implements strict quality management practices in line with ISO9001 and environmental management standards as per ISO14001. This ensures that all products, including the CH430WQ12A1-CT, meet high-quality benchmarks throughout the manufacturing process .
