Sunlight Readable Tft Lcd Touchscreen 1000cd/M2 7 Inch High Brightness Color Display

Product Description:

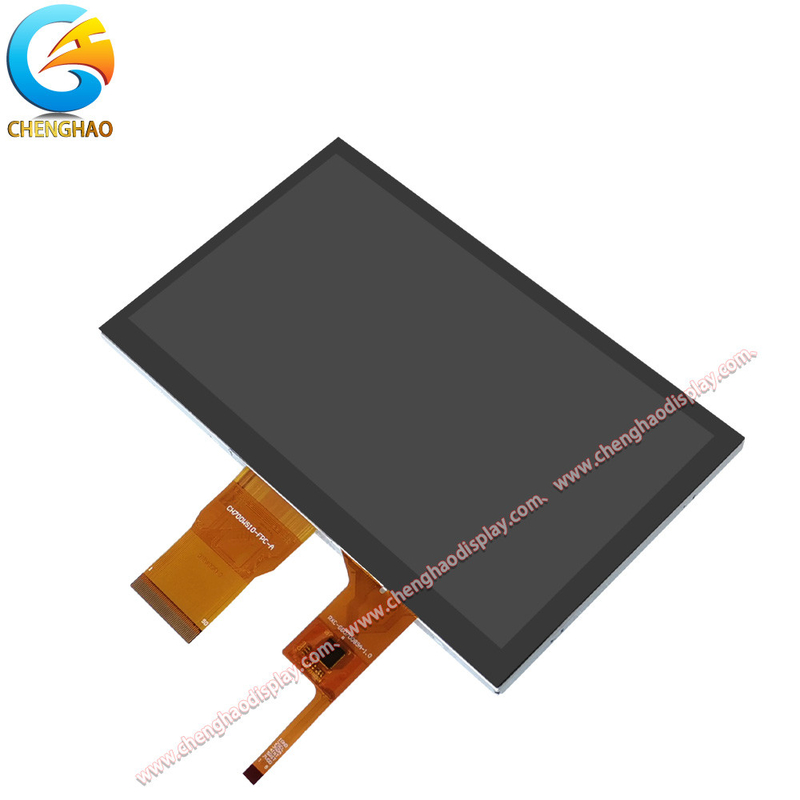

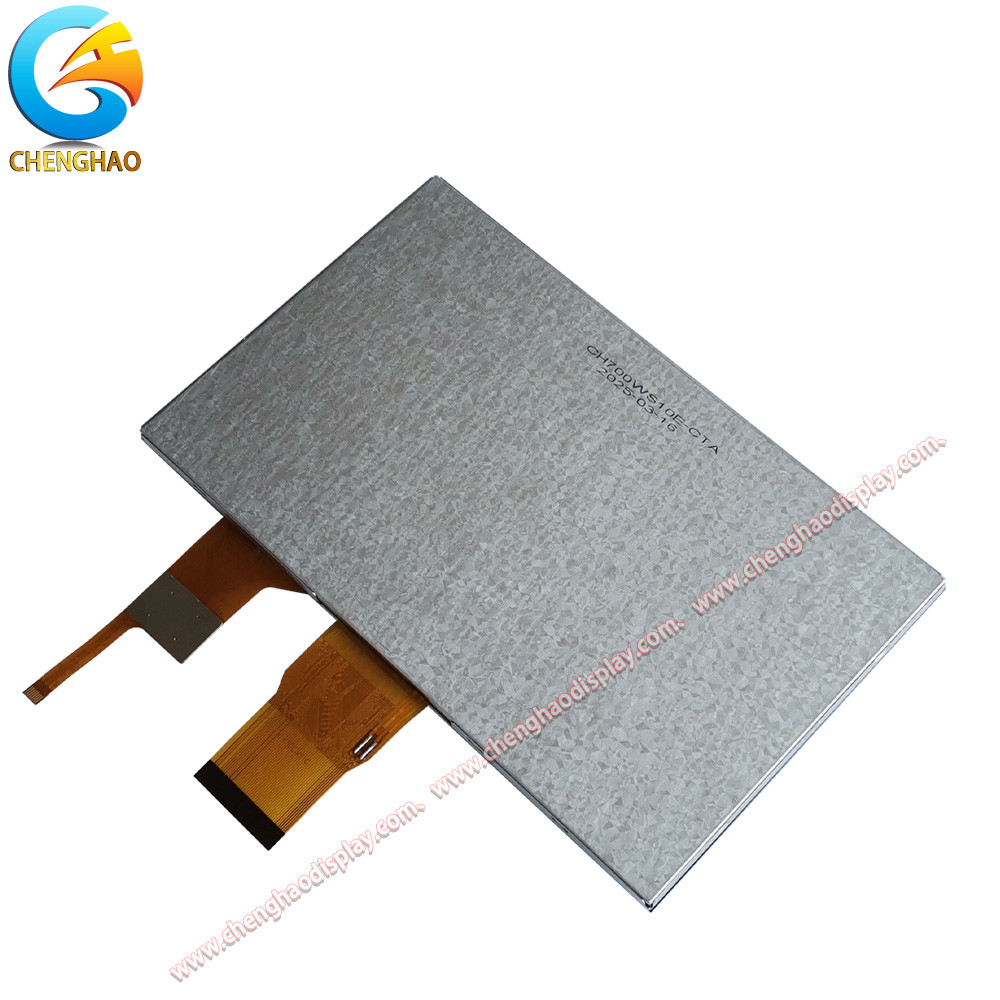

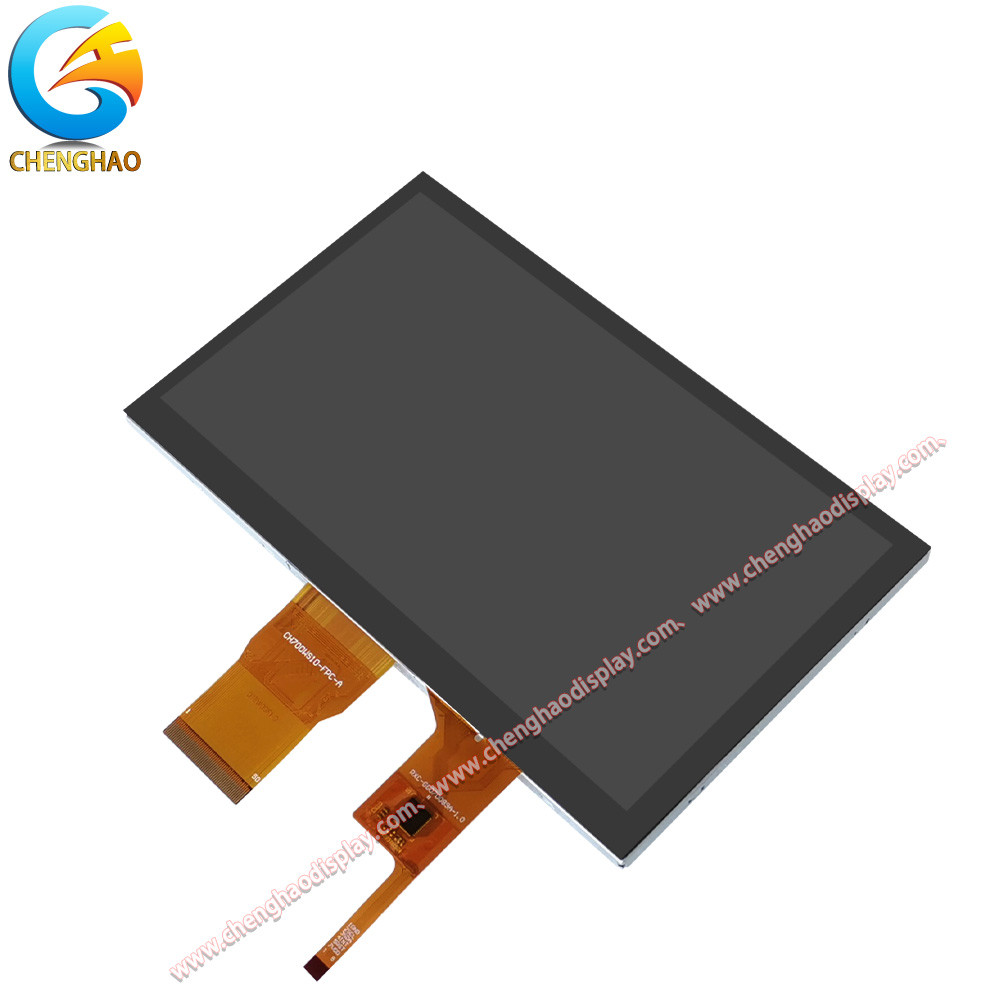

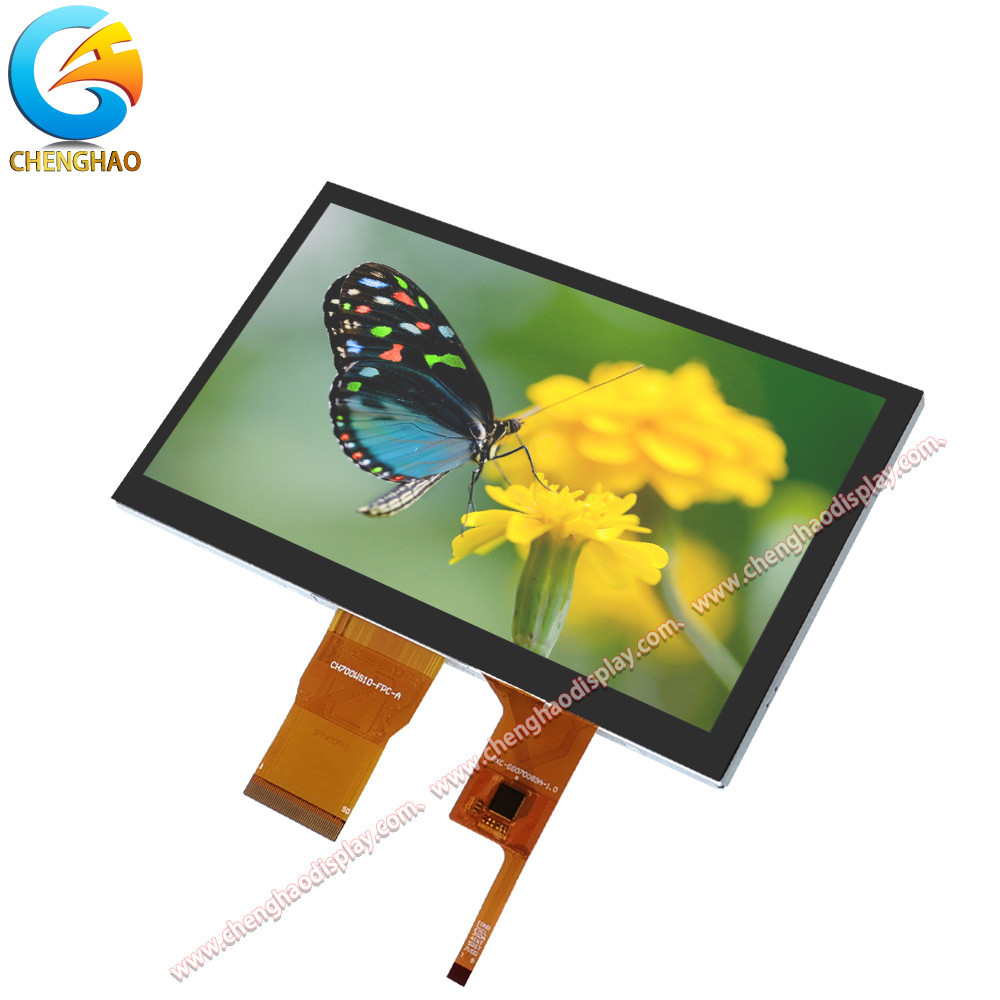

CH700WS10E-CTA is a high-performance 7-inch IPS TFT LCD touch screen designed for a variety of application scenarios. With a resolution of 1024x600, the module can provide clear and delicate image display, suitable for devices that require high visual quality. Its brightness is up to 1000 cd/m², ensuring that it can still be read in strong light environments, especially suitable for outdoor use. The module adopts IPS technology and supports wide viewing angles (80/80/80/80), so that the colors remain true when viewed from different angles.
CH700WS10E-CTA is equipped with a capacitive touch panel with good touch sensitivity, suitable for various human-computer interaction applications. Its operating temperature range is -20°C to +70°C, and the storage temperature range is -30°C to +80°C, ensuring stability in extreme environments. In addition, the module supports a variety of customization options, including backlight brightness, interface type and touch panel design to meet the needs of different customers, and is widely used in industrial control, medical equipment and smart home.

Features:

7.0-inch IPS vertical screen design: Using IPS technology and normal black mode, it presents high-contrast images with accurate color reproduction, suitable for scenes with strict display requirements.

Ultra-high brightness and wide viewing angle: With a typical brightness of 1000cd/m², it remains clearly visible under strong light; the 160° full viewing angle design ensures that the image is uniform when viewed from multiple angles.

Wide temperature range adaptability: It supports a wide operating temperature range of -20℃ to 70℃, and the storage temperature range is extended to -30℃ to 80℃, which can adapt to high temperature difference environments such as outdoor and industrial environments.

Capacitive touch and precise response: The capacitive touch screen equipped with the GT911 chip supports multi-touch, and the operation is sensitive and precise, which enhances the human-computer interaction experience.

Lightweight and sturdy Touch Cover: It adopts a composite design of 0.7mm glass lens and ITO glass, with a surface hardness of 6H, which is both light and scratch-resistant.

High transmittance and energy-saving design: The optical transmittance of the touch glass cover is ≥87%, and the picture is transparent and natural; the touch panel supports a wide voltage input of 2.8V-3.3V, with strong compatibility and optimized power consumption.

Stable interface configuration: Integrated RGB signal interface and I2C touch control interface to ensure stable data transmission and facilitate device integration and development.

Environmental protection and reliability: It has passed RoHS environmental certification and complies with international standards; the structure is compact and has been strictly tested to ensure long-term stability.

Technical Parameters:

Applications:

CH700WS10E-CTA is a flexible 7-inch IPS TFT LCD touch screen that is widely used in multiple industries to meet the needs of different fields. The following are the main application areas of this product:

Industrial control: In industrial automation and control systems, CH700WS10E-CTA can be used for monitoring and control panels. Its high brightness and wide viewing angle characteristics enable operators to clearly read data under various lighting conditions, ensuring efficient operation of production processes.

Medical equipment: The module's applications in the medical industry include heart rate monitors, blood glucose meters, and other medical instruments. Its stable performance and high brightness display ensure that medical staff can accurately read key data and improve the quality of medical services.

Smart home: CH700WS10E-CTA can be integrated into smart home devices such as smart refrigerators, coffee machines, and home automation control panels. Its touch function and high-resolution display enhance the user experience and make the operation of home devices more intuitive and convenient.

In-vehicle equipment: This display module is ideal for in-vehicle navigation systems and central control displays. Its high brightness ensures clear visibility even under direct sunlight, enhancing driving safety and convenience.

IoT devices: With the development of IoT technology, CH700WS10E-CTA can be applied to various smart devices, such as smart sensors and monitoring equipment. Its flexible interface and customization options make it compatible with different IoT platforms and meet diverse application needs.

Consumer electronics: In the field of consumer electronics, the module can be used in products such as digital photo frames and portable game consoles. Its high resolution and touch function enable users to enjoy a better interactive experience while enhancing the market competitiveness of the product.

Digital signage: CH700WS10E-CTA can also be used in digital signage and kiosks, suitable for displaying advertisements and information in shopping malls, exhibitions and public places. Its high brightness and color performance can attract the audience's attention and provide a vivid visual experience.

In short, CH700WS10E-CTA can meet the needs of different industries with its excellent performance and diverse application capabilities. Whether in the fields of industry, medical, smart home or consumer electronics, the module shows great flexibility and adaptability.

Support and Services:

At Chenghao Optoelectronic, we are committed to providing excellent support and services to our customers, ensuring that every customer has the best experience when using the CH700WS10E-CTA LCD touch screen. Our support services include the following aspects:

Technical consultation: Before customers choose CH700WS10E-CTA, our technical team provides professional consulting services to help customers understand the product's functions and application scenarios. We will recommend the most suitable solution based on the specific needs of customers to ensure the successful implementation of their projects.

Customization service: We understand that the needs of each customer may be different, so we provide a variety of customization options. Customers can adjust the backlight brightness, interface type, touch panel design, etc. according to their project requirements to ensure that the product can perfectly adapt to their application environment.

Online technical support: During the use of the product, customers may encounter technical problems. Our technical support team provides online help to answer customers' questions at any time to ensure that they can use the CH700WS10E-CTA module smoothly. We are committed to responding to customer needs quickly and providing effective solutions.

Quality assurance: Our products undergo rigorous quality inspection and testing to ensure their performance and reliability. CH700WS10E-CTA will be fully inspected before shipment to ensure that each module meets our high standards.

After-sales service: We provide one year of after-sales service guarantee for all customers who purchase CH700WS10E-CTA. If any quality problems occur during this period, we will provide replacement services to ensure customer satisfaction.

Logistics and delivery: We work with multiple logistics companies to provide efficient transportation services. Our logistics team ensures the safety of products during transportation and promptly updates customers on order status to ensure that customers can always understand the transportation status of their products.

Through the above comprehensive support and services, Chenghao Optoelectronic is committed to providing customers with a worry-free purchasing experience, ensuring that every customer can take full advantage of the CH700WS10E-CTA and promote the success of their projects.

FAQ:

Q: What is the brand name of this TFT LCD Capacitive Touchscreen?

A: The brand name is Chenghao Optoelectronic.

Q: What is the model number of this TFT LCD Capacitive Touchscreen?

A: The model number is CH700WS10E-CTA.

Q: Where is this TFT LCD Capacitive Touchscreen manufactured?

A: This product is manufactured in China, specifically in Shenzhen.

Q: What certifications does this TFT LCD Capacitive Touchscreen have?

A: This product is certified with CE, RoHS, and FCC.

Q: What is the minimum order quantity for this TFT LCD Capacitive Touchscreen?

A: There is no minimum order quantity (MOQ) required for this product.
